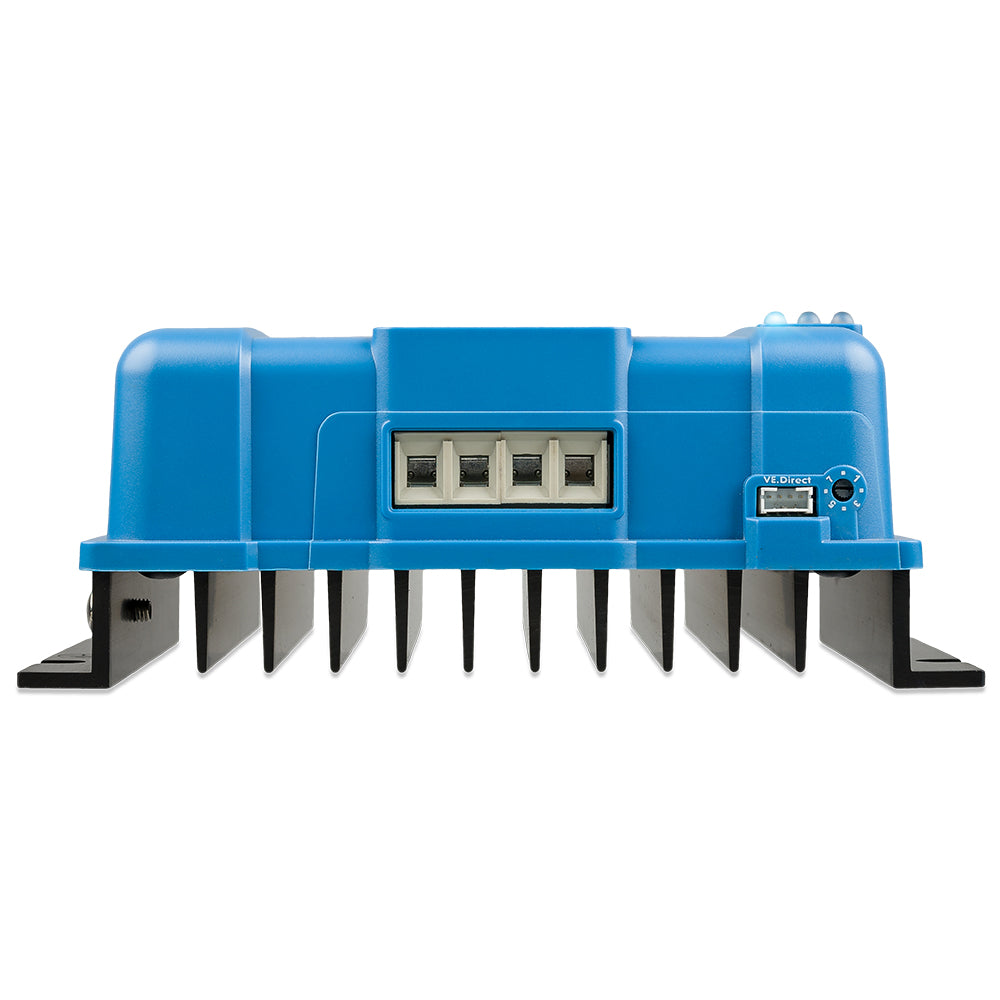

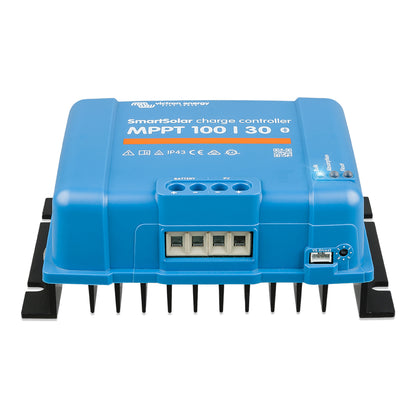

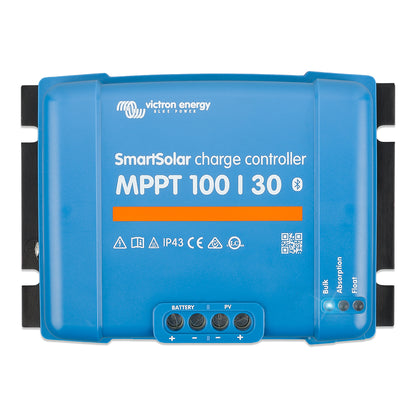

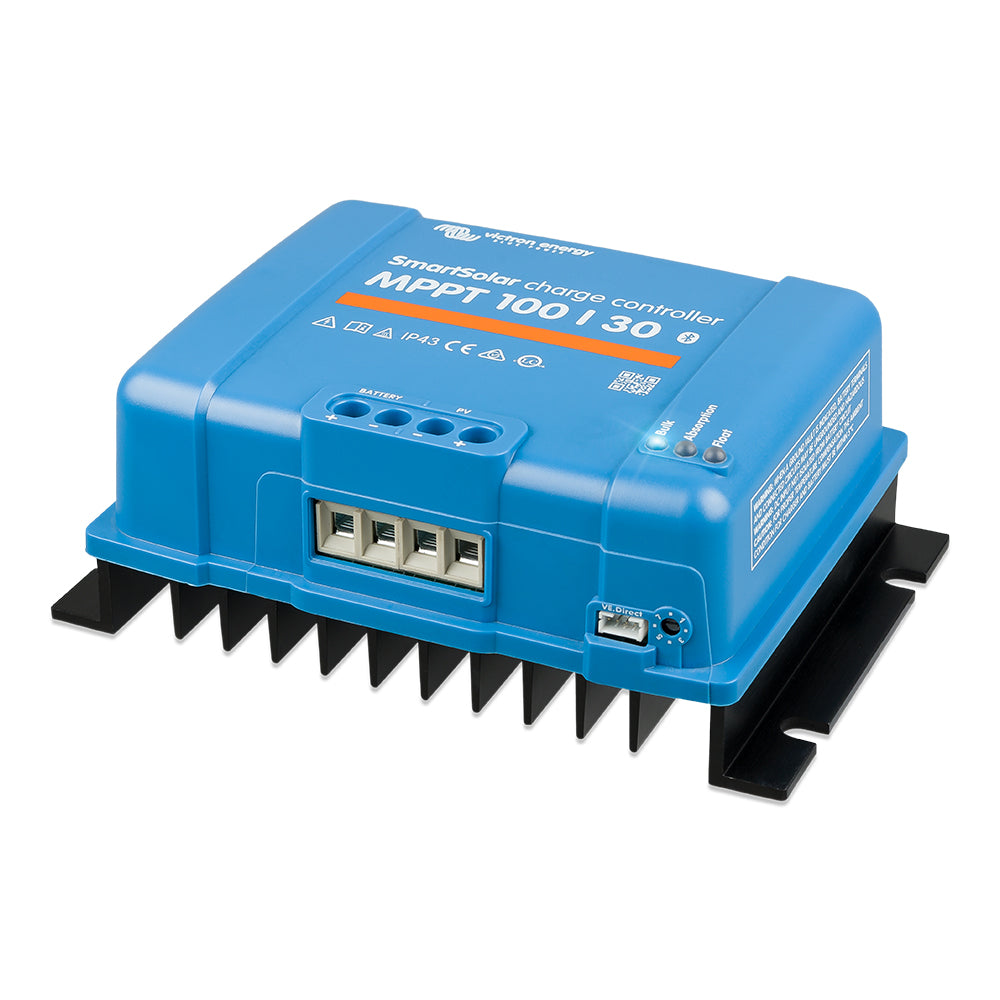

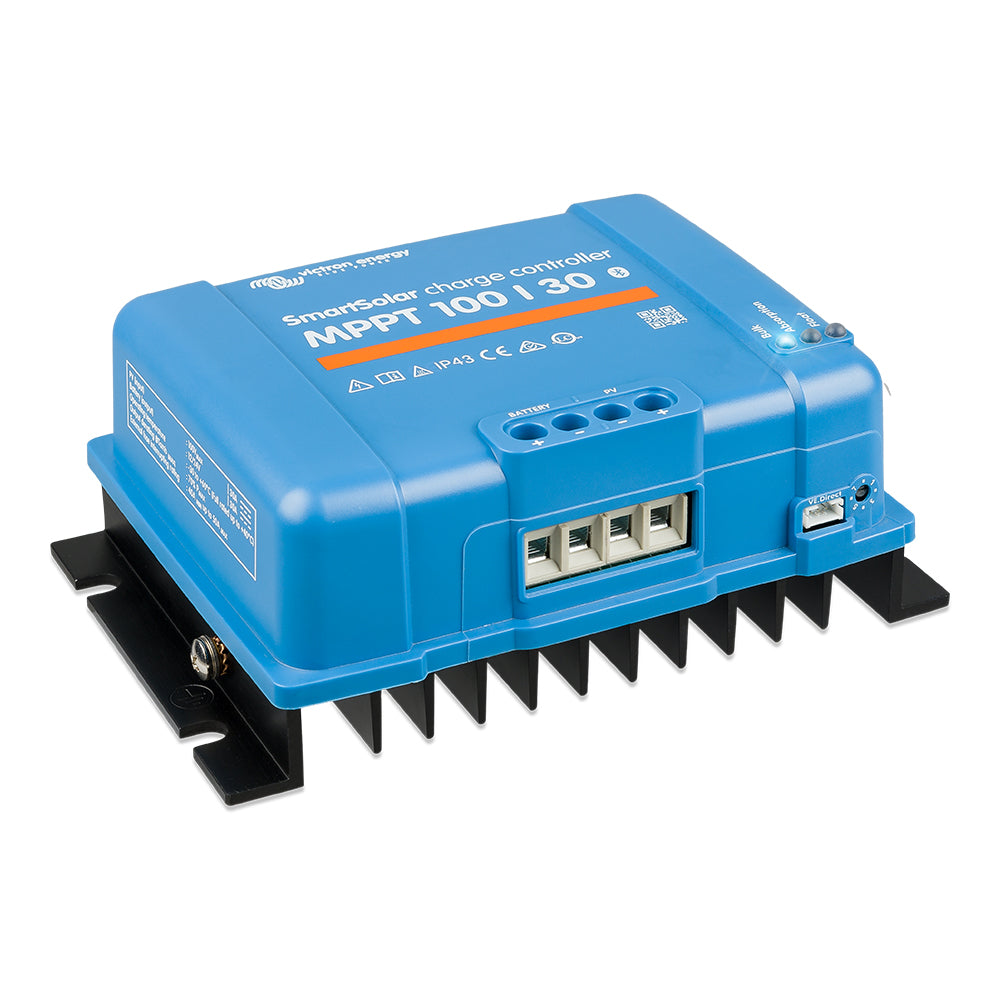

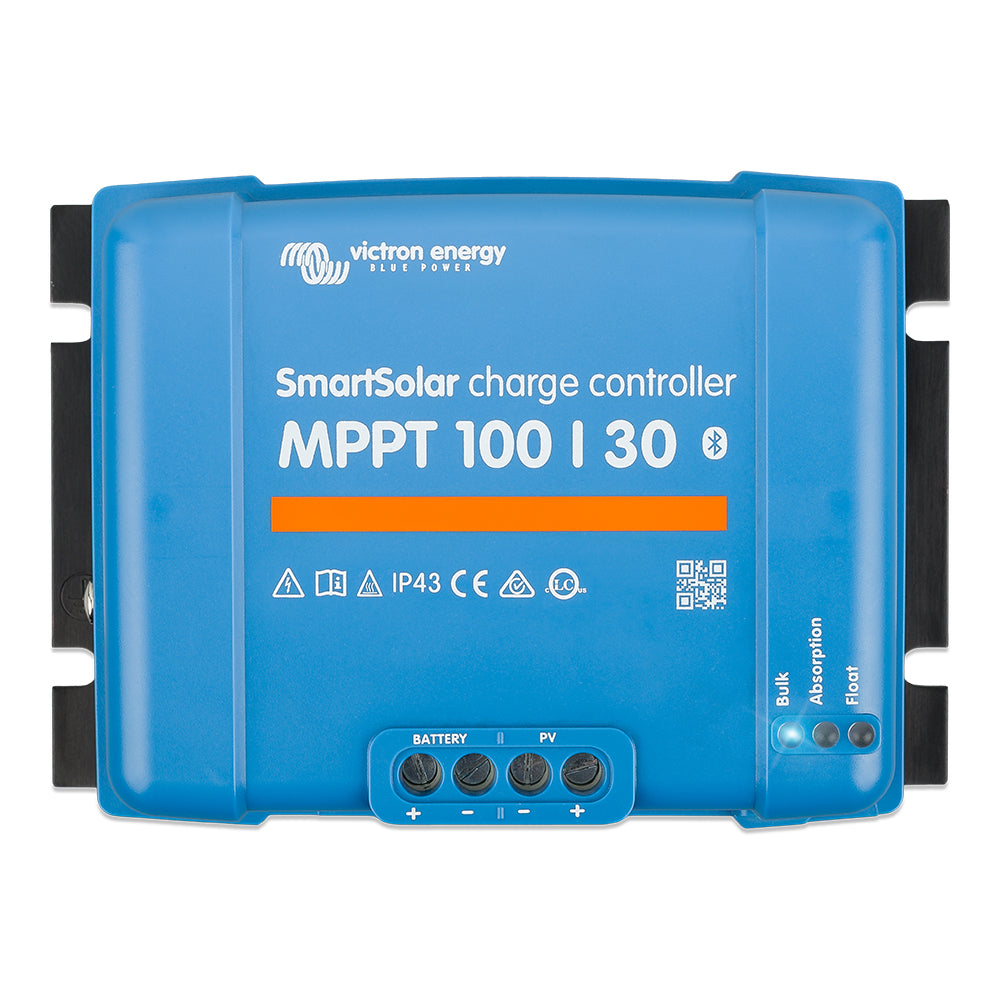

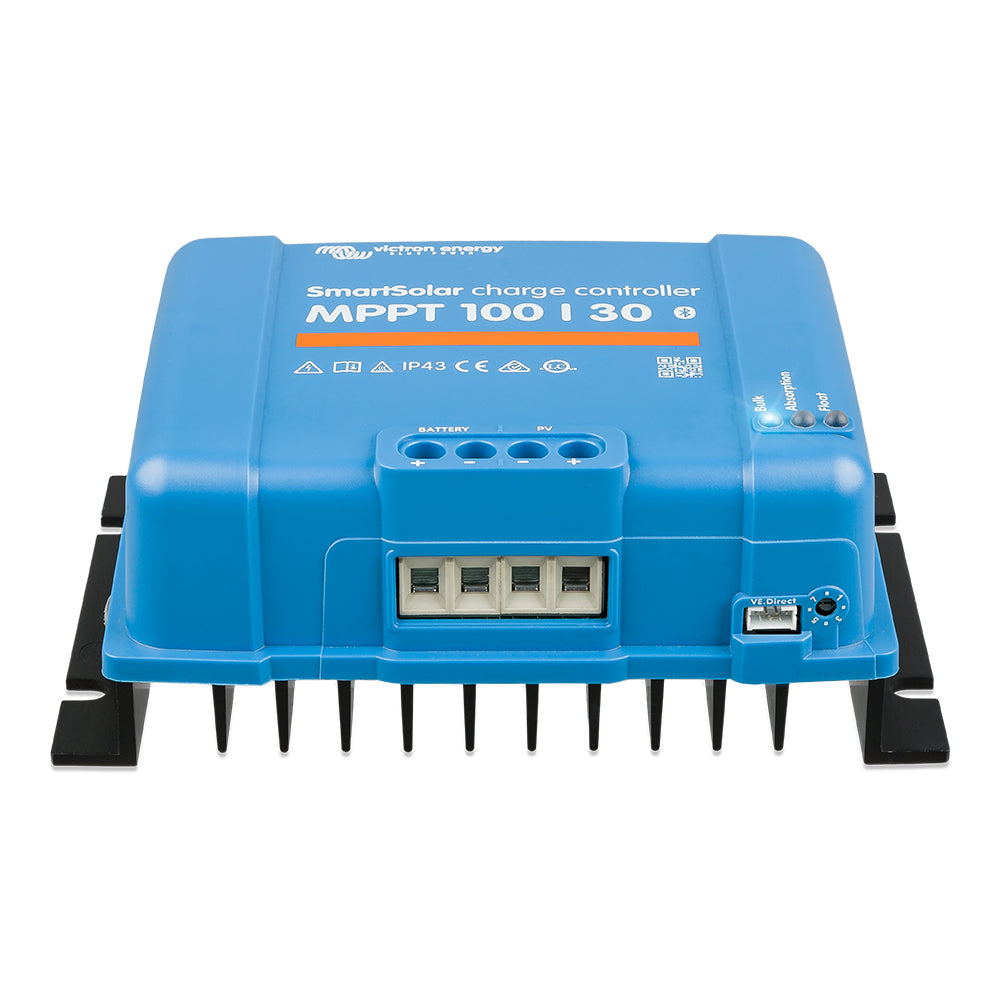

Victron Energy SmartSolar MPPT Charge Controller - 100V, 30AMP

SmartSolar MPPT Charge Controller - 100V - 30AMP

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices
• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.
• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
• Programmable battery charge algorithm See the software section on our website for details
• Day/night timing and light dimming option See the software section on our website for details
• Internal temperature sensor Compensates absorption and float charge voltage for temperature.
• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy SmartSolar MPPT Charge Controller model SCC110030210 is a high-performance device designed to optimize solar energy harvesting for your system. Featuring built-in Bluetooth Smart technology, it allows for seamless wireless setup, real-time monitoring, firmware updates, and synchronization with compatible devices through a user-friendly app. The VE.Direct port provides a wired connection option for integration with a Color Control GX, other GX series products, PCs, or compatible data loggers, ensuring versatile communication options for system management. Designed to maximize power extraction, the ultra-fast MPPT algorithm adjusts rapidly to changing light conditions, particularly under cloud cover, increasing energy harvest efficiency by up to 30% compared to PWM controllers and up to 10% over slower MPPT models. This capability ensures your solar setup performs optimally throughout varied weather conditions and times of day. The controller includes a load output that prevents over-discharge by disconnecting loads when the battery voltage drops below a preset level, safeguarding your battery life. An intelligent battery management system monitors the state of charge and dynamically adjusts load disconnection levels, especially useful when full recharging takes longer than a day, thereby extending battery lifespan. The device supports programmable charge algorithms, day/night timing, and light dimming options to tailor operation to your specific needs. An internal temperature sensor automatically adjusts absorption and float voltages based on ambient temperature, enhancing battery safety and longevity. For additional monitoring, optional external sensors such as the Bluetooth-connected Smart Battery Sense or BMV-712 Smart Battery Monitor can relay voltage and temperature data directly to the controller, providing comprehensive system oversight. With a compact design, the Victron SmartSolar MPPT Charge Controller is suitable for various off-grid and grid-tied solar applications, ensuring efficient energy management and long-term system reliability. Please refer to the warranty information and product safety warnings available through Victron Energy for detailed support and compliance information.

Features:

• Bluetooth Smart built-in for wireless setup, monitoring, updates, and synchronization

• VE.Direct port for wired data connection to compatible devices

• Ultra-fast MPPT algorithm increases energy harvest by up to 30% under cloudy conditions

• Load output prevents over-discharge and is short circuit proof

• Intelligent battery management system prolongs battery life by optimizing recharge cycles

• Programmable charge algorithms and light dimming options

• Internal temperature sensor for accurate voltage regulation

• Supports external battery sensors via Bluetooth for comprehensive monitoring
