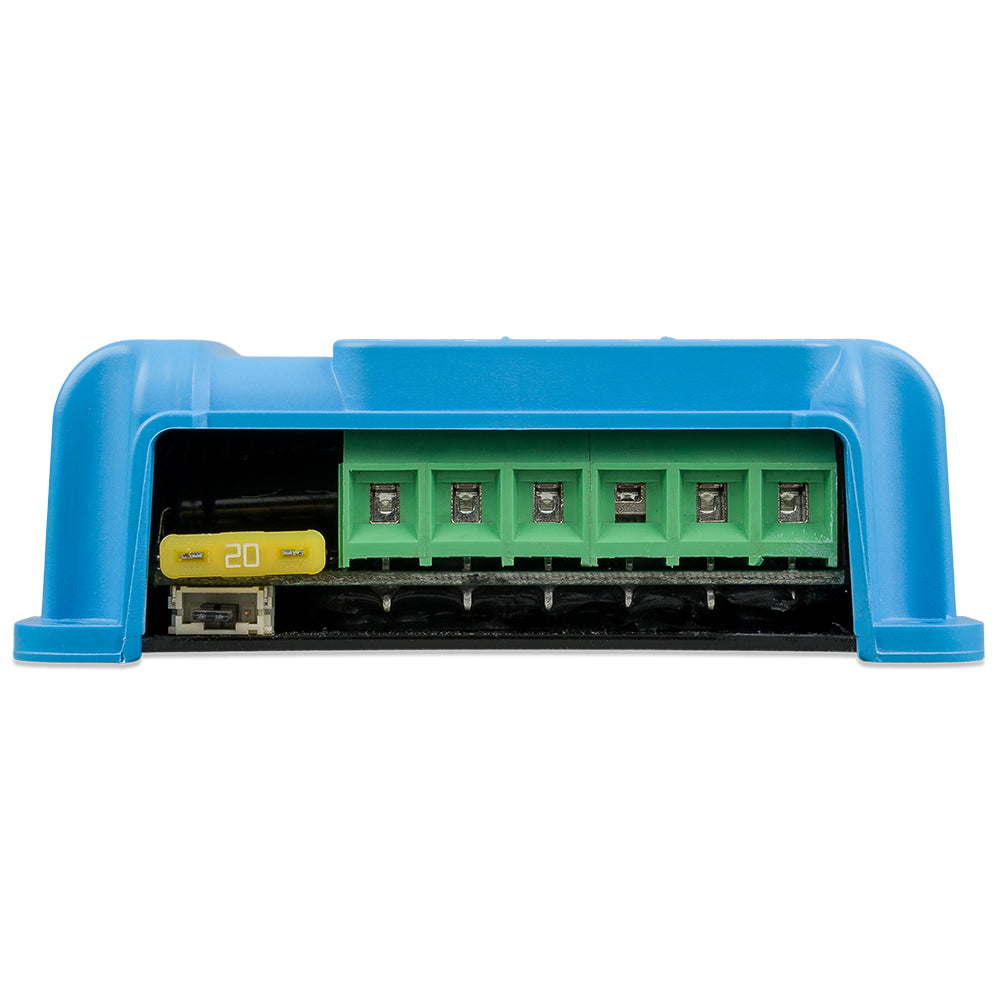

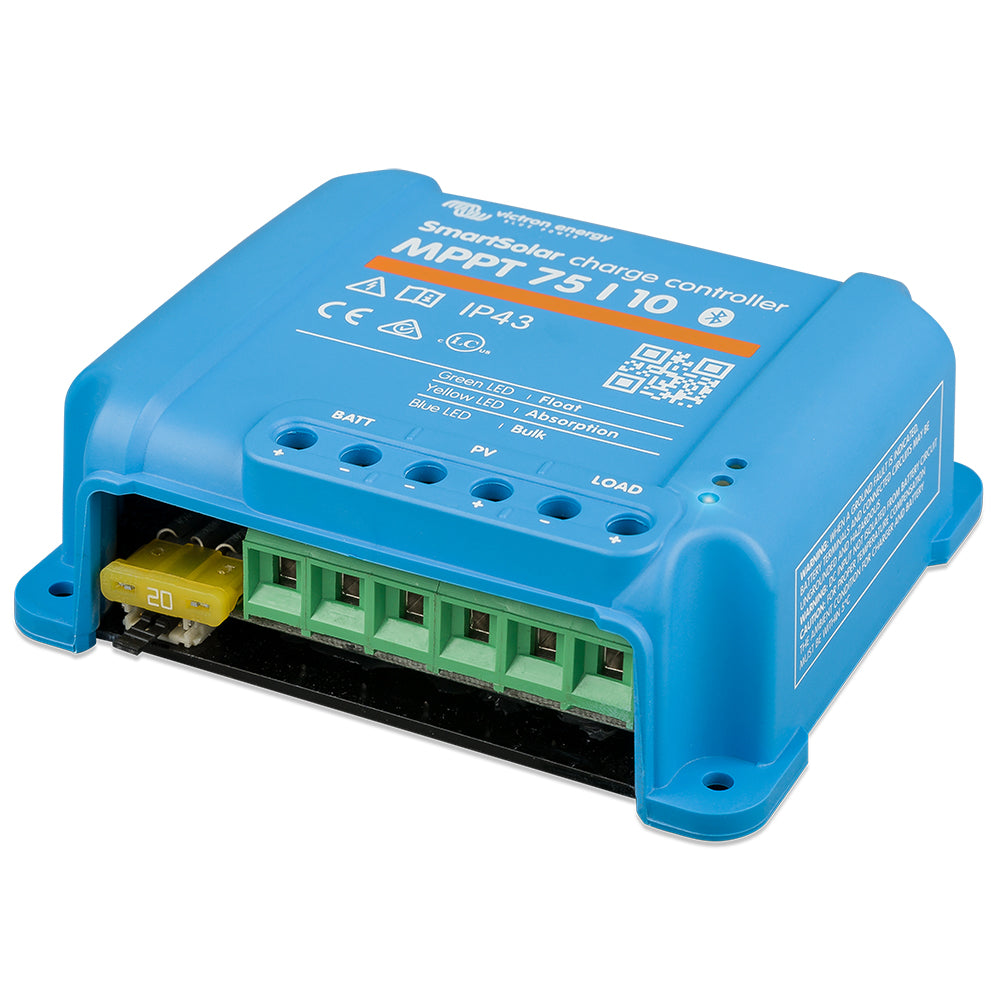

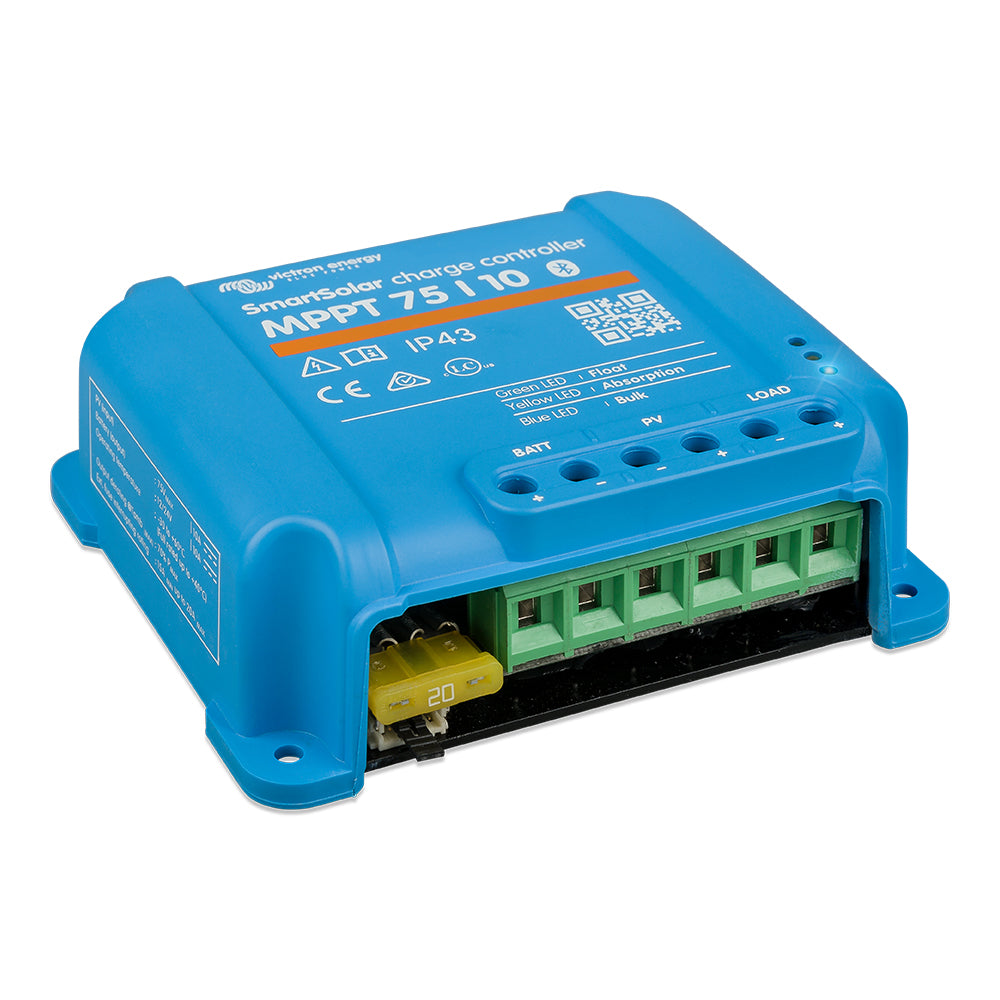

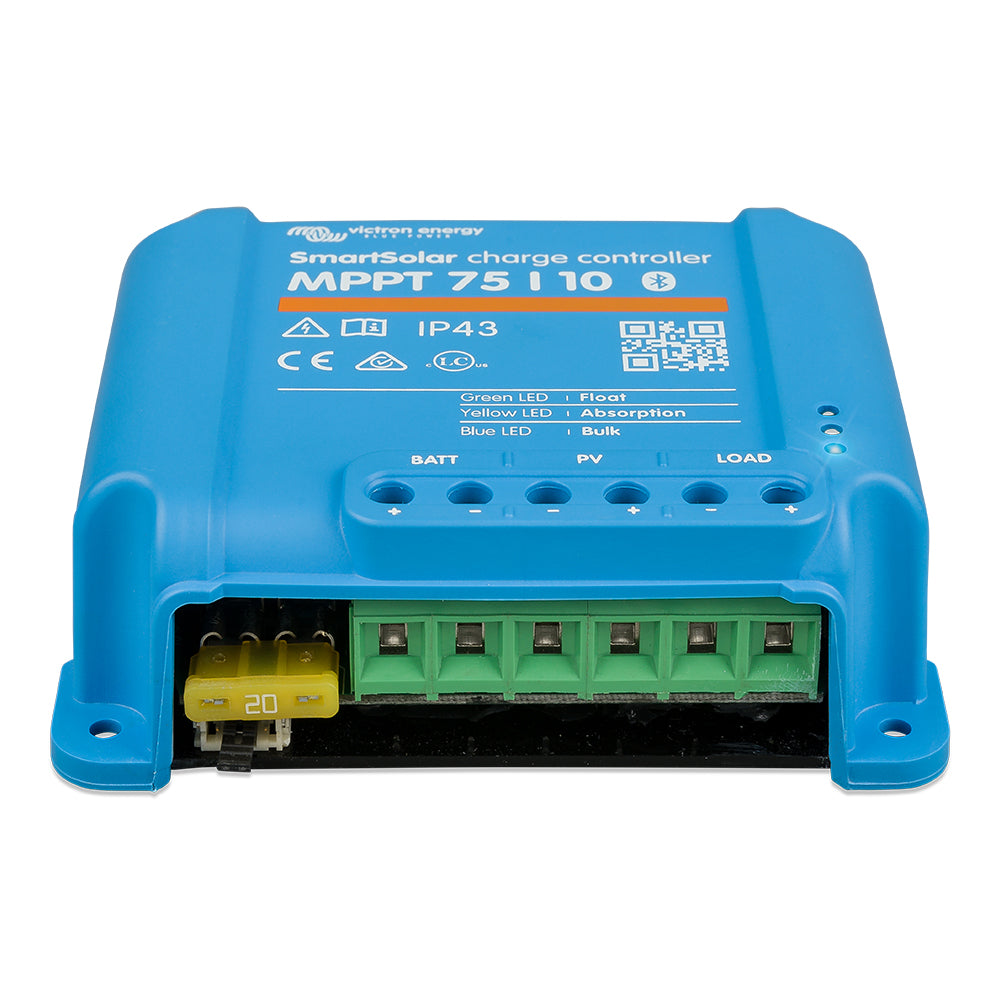

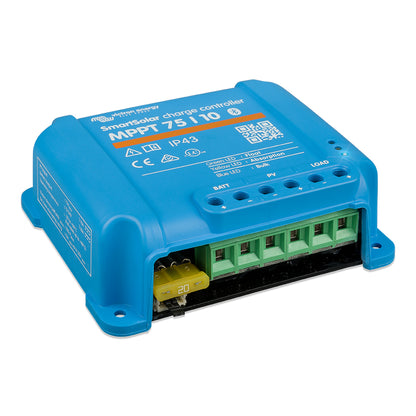

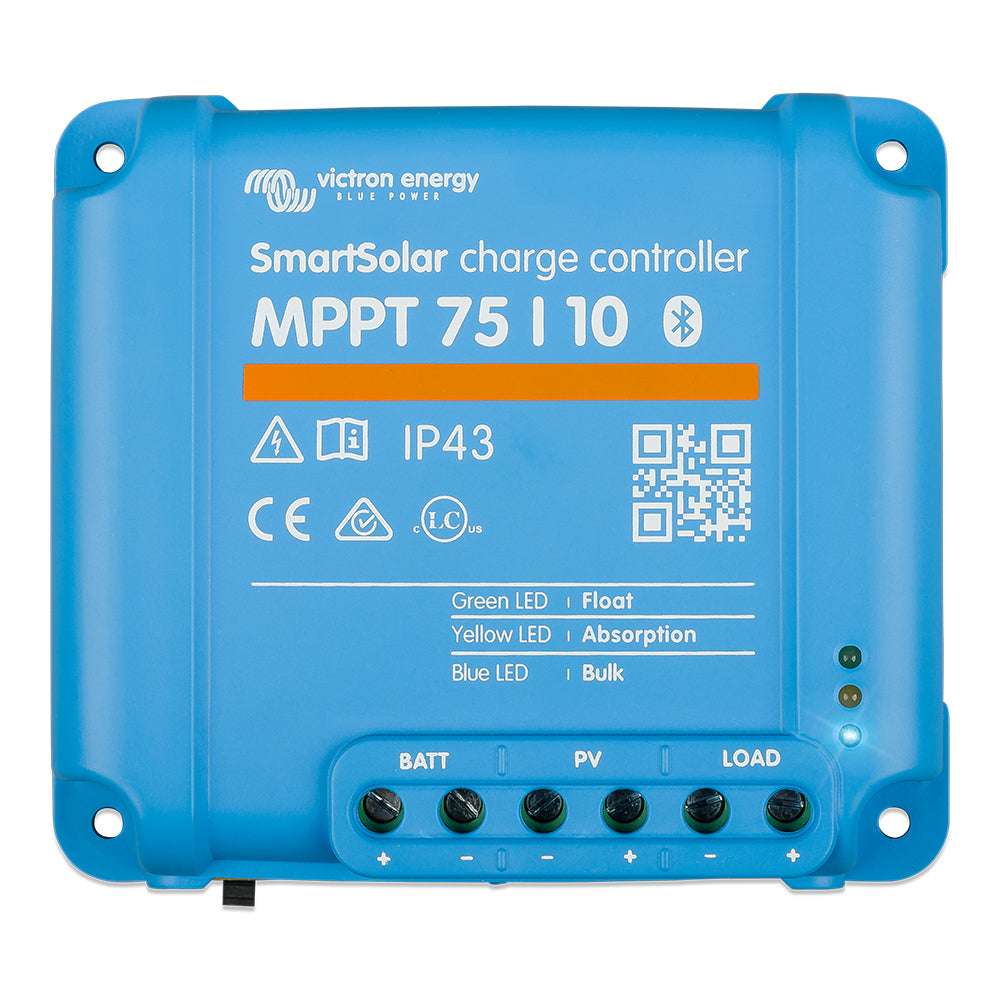

Victron Energy SmartSolar MPPT Charge Controller - 75V, 10A with Bluetooth and VE.Direct

SmartSolar MPPT Charge Controller - 75V - 10AMP

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices
• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.
• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
• Programmable battery charge algorithm See the software section on our website for details
• Day/night timing and light dimming option See the software section on our website for details
• Internal temperature sensor Compensates absorption and float charge voltage for temperature.
• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy SmartSolar MPPT Charge Controller, model SCC075010060R, offers advanced solar charging capabilities with a 75V maximum voltage and 10A current. Designed for reliable energy harvesting, this controller features ultra-fast maximum power point tracking (MPPT) technology that significantly enhances energy capture, especially under variable light conditions such as cloudy weather. Its intelligent algorithms optimize battery life by adjusting load disconnect levels to ensure full recharges and prevent over-discharge, prolonging the lifespan of lead-acid batteries and other types alike. The built-in Bluetooth Smart feature allows wireless setup, monitoring, and firmware updates, providing ease of use and remote management. Additionally, VE.Direct connectivity facilitates wired communication with compatible devices like the Color Control GX or PC, enabling seamless data exchange and system integration. The internal temperature sensor compensates for temperature fluctuations to maintain optimal voltage levels during charging, while optional external sensors via Bluetooth extend monitoring capabilities for battery voltage and temperature. The load output can disconnect loads when the battery reaches a preset discharge level, safeguarding against over-discharge, and features short circuit protection for added safety. Programmable battery charge algorithms, along with day/night timing and light dimming options, allow customized operation tailored to specific solar setups. The controller's robust design ensures reliable performance in demanding environments, making it suitable for both small off-grid systems and larger solar applications. With comprehensive features aimed at maximizing energy efficiency and battery longevity, the Victron Energy SmartSolar MPPT Charge Controller is an essential component for sustainable solar power systems.

Features:

• Bluetooth Smart built-in for wireless setup, monitoring, and updates

• VE.Direct interface for wired data connection to compatible devices

• Ultra-fast MPPT technology improves energy harvest by up to 30% under variable lighting conditions

• Load output prevents over-discharge by disconnecting loads at preset voltage levels

• Intelligent battery management algorithm enhances battery lifespan by optimizing recharge cycles

• Programmable charge algorithm allows customization based on system needs

• Day/night timing and light dimming options for flexible operation

• Internal temperature sensor adjusts voltage settings based on ambient temperature

• Optional external sensors for real-time battery voltage and temperature monitoring
