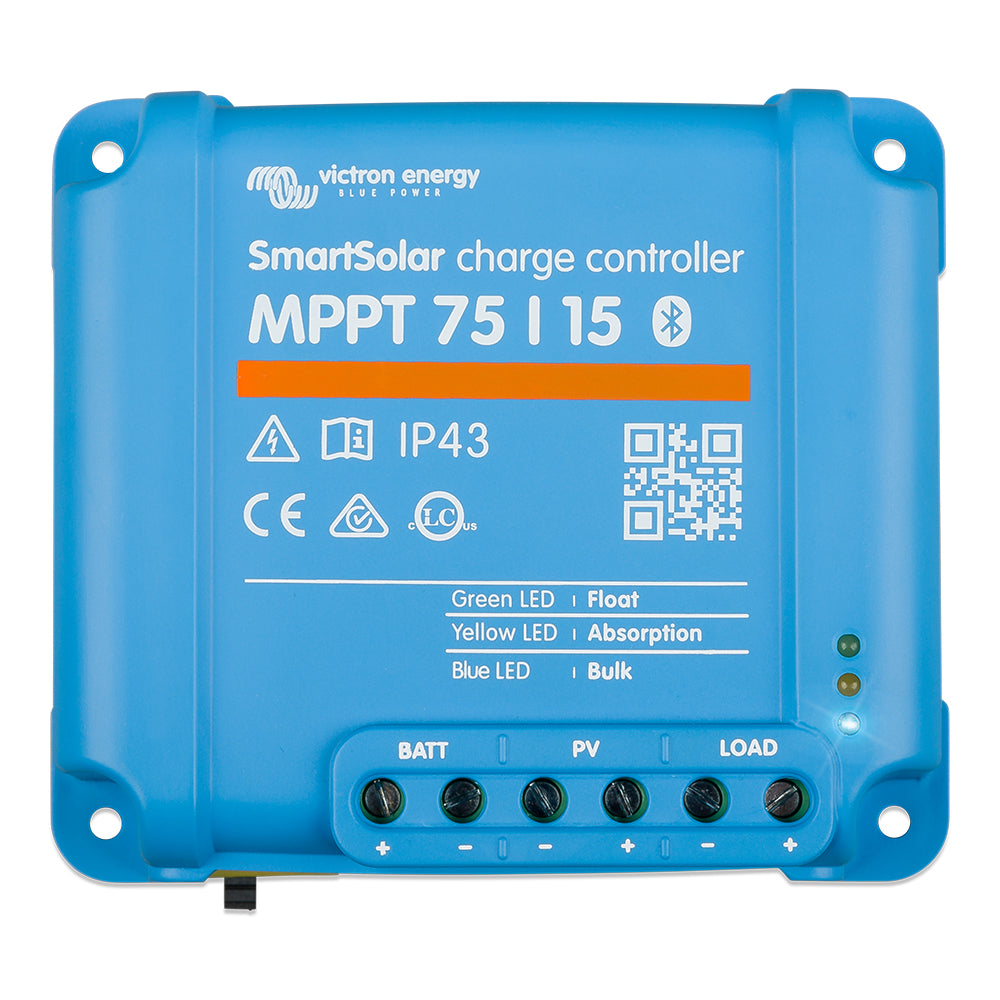

Victron Energy SmartSolar MPPT Charge Controller 75V 15AMP with Bluetooth and VE.Direct

SmartSolar MPPT Charge Controller - 75V - 15AMP

Features:

• Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
• VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices
• Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
• Load output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay). Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof.
• Battery Life: intelligent battery management When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
• Programmable battery charge algorithm See the software section on our website for details
• Day/night timing and light dimming option See the software section on our website for details
• Internal temperature sensor Compensates absorption and float charge voltage for temperature.
• Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy SmartSolar MPPT Charge Controller model SCC075015060R is a high-performance solar charge controller designed to optimize energy harvest from your solar panels. Featuring a built-in Bluetooth Smart interface, this controller allows for seamless wireless setup, monitoring, updates, and synchronization via your mobile device, providing convenience and real-time system insights. The integrated VE.Direct port offers a wired connection to compatible devices like the Color Control GX, enabling comprehensive system management and data logging.

This charge controller utilizes ultra-fast Maximum Power Point Tracking (MPPT) technology, which significantly improves energy collection—up to 30% more than traditional PWM controllers and 10% more than slower MPPT models—especially under variable lighting conditions such as cloudy skies. The load output feature helps prevent battery over-discharge by disconnecting loads when the battery reaches a pre-set voltage, protecting your battery's lifespan. The load disconnect can operate via relay (for 48V systems) or through an intelligent battery management algorithm, which modulates load disconnect levels to ensure batteries are fully recharged regularly.

The intelligent Battery Life algorithm continuously monitors the battery’s state of charge, adjusting load disconnect levels to avoid deep cycling and extend battery life, especially for lead-acid batteries. Programmable charge algorithms, day/night timing, and light dimming options are available through the Victron software, allowing you to customize operation based on your specific system needs. An internal temperature sensor automatically adjusts absorption and float voltages according to ambient temperature for optimal battery health. For enhanced monitoring, external Bluetooth-enabled sensors like the Smart Battery Sense or BMV-712 can provide battery voltage and temperature data to multiple controllers, simplifying system maintenance.

Designed for reliable performance, the Victron SmartSolar MPPT Charge Controller is suitable for a wide range of off-grid and grid-tied solar systems, offering maximum energy efficiency, advanced management features, and ease of integration. Its compact design and robust construction make it an excellent choice for both residential and commercial solar installations, ensuring long-term durability and optimal energy utilization.

Features:

• Bluetooth Smart built-in for wireless setup, monitoring, and updates

• VE.Direct port for wired data connection to Victron GX devices and PCs

• Ultra-fast MPPT technology improves energy harvest by up to 30% under variable light conditions

• Load output with over-discharge protection and relay interface for 48V systems

• Intelligent Battery Life algorithm to extend battery lifespan by optimizing charge cycles

• Programmable battery charge algorithms for tailored system management

• Day/night timing and light dimming options via software

• Internal temperature sensor adjusts voltages based on ambient temperature

• Optional external Bluetooth sensors for battery voltage and temperature monitoring
