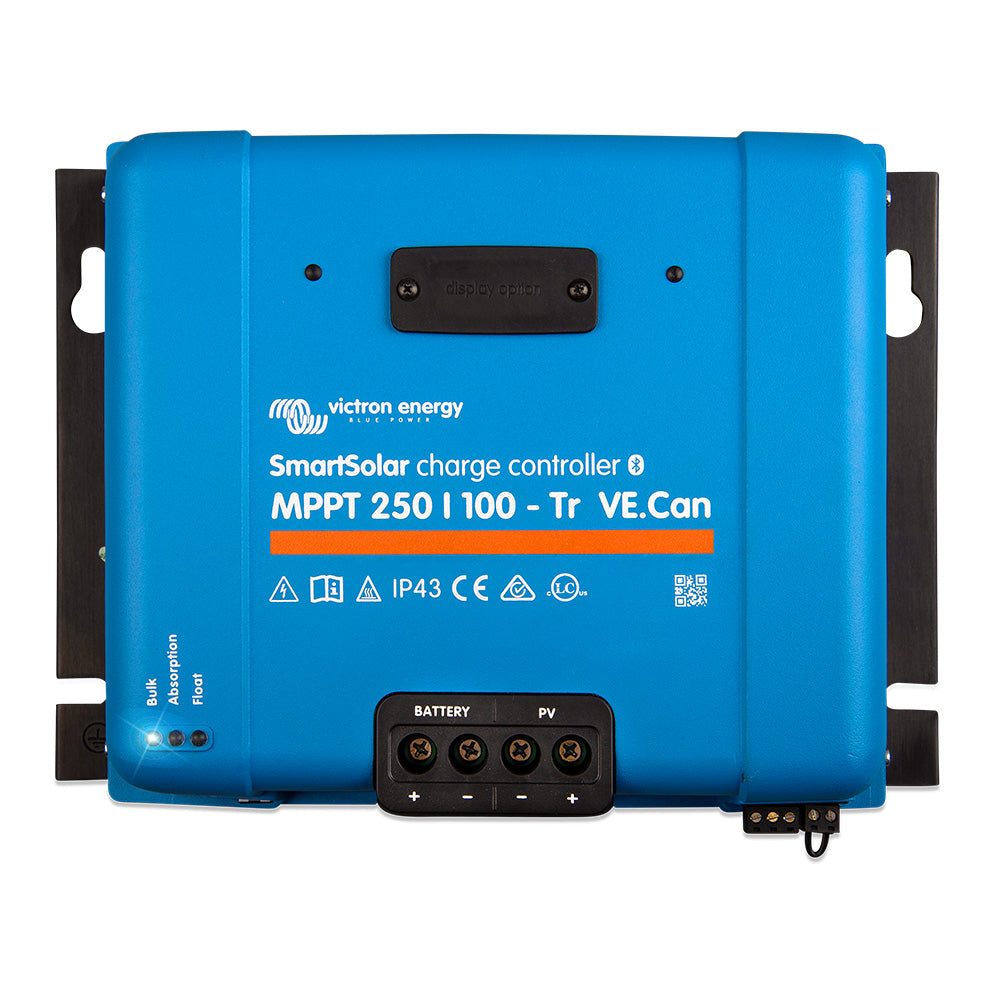

Victron Energy SmartSolar MPPT VE Can 250V 100A Solar Charge Controller

SmartSolar MPPT VE CAN 250V-100A with VE.CAN Port

The MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges battery banks

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged.

MPPT: Ultra Fast Maximum Power Point Tracking

The MPPT VE.Can SmartSolar charger connect to a PV array of 150 or 250 Volt Voc and will automatically detect and charge your 12, 24, or 48V battery bank with current ranging from 70 to 100A depending on the model.

The charge settings are fully programmable and can even be set up for different battery chemistries, like lead-acid, lithium, and others.

Control Your Charger Remotely

The MPPT VE.Can SmartSolar charger be remotely controlled and configured over Bluetooth via the VictronConnect App. This allows device set-up, management, and at-a-glance information, such as battery voltage and current, PV voltage and current, and historical data.

Daisy Chain Additional Units

The VE.Can SmartSolar charger isequipped with CAN bus ports. This allows for communication with additional VE.Can SmartSolar chargers. The additional units are simply "daisy-chained" to each other with a single RJ45 cable between the individual units.

When connected to each other, all individual VE.Can SmartSolar chargers, synchronize their charge stages. They can also send their data, via a single cable, to a GX monitoring device.

Remote Monitoring and Control

If the GX device is connected to the internet, the Victron Remote Management Portal (VRM) provides access to the full power of your solar charger(s). For remote installations - even when there is no internet connection nearby - you may be able to monitor your MPPT by connecting the GlobalLink 520.

SmartSolar Control Display

The VE.Can SmartSolar charger is also equipped with a VE.Direct port like our other MPPT solar chargers. This port can be for single-unit monitoring or for streetlight control. The remote on/off connector can be externally controlled by a third-party device like a lithium battery. An optional plug-in LCD display/control provides live data, set-up, and management, straight from the face of the device.

The Victron Energy SmartSolar MPPT VE Can 250V 100A solar charge controller is designed to maximize energy harvest from your solar array with advanced MPPT technology. Capable of handling PV arrays with Voc up to 250 volts, this unit efficiently converts solar energy into usable power for your battery bank, whether it's 12V, 24V, or 48V systems. The charger's ultra-fast MPPT algorithm ensures optimal power extraction even under variable weather conditions, making it ideal for both residential and remote solar applications. It features fully programmable charge settings adaptable to different battery chemistries, including lead-acid and lithium, ensuring safe and effective charging tailored to your specific needs. The VE.Can port enables daisy chaining multiple units, allowing seamless synchronization of charge stages across several chargers for larger or more complex systems. With Bluetooth connectivity and compatibility with the VictronConnect App, users can remotely monitor and configure the charger in real-time, viewing parameters like battery voltage, current flow, PV array status, and historical data. For enhanced remote management, the charger integrates with the Victron GX monitoring system and the VRM portal, providing comprehensive oversight even from afar. An optional plug-in LCD display offers live data access and system control directly from the device, while the remote on/off feature facilitates external control via third-party devices. The Victron SmartSolar MPPT VE Can 250V 100A is a versatile, high-performance solution for efficient solar energy management, suitable for a wide range of off-grid and grid-tied installations. Its robust construction and smart features ensure reliable operation and easy integration into existing power systems, making it an essential component for modern solar setups.

Features:

• Ultra-fast MPPT technology for maximum power point tracking

• Handles PV arrays with up to 250V Voc

• Compatible with 12V, 24V, and 48V battery systems

• Programmable charge settings for different battery chemistries

• VE.Can port for daisy chaining multiple units

• Bluetooth connectivity for remote control via VictronConnect App

• Supports remote monitoring through GX and VRM portal

• Optional LCD display for live data and system management

• Remote on/off control for external device integration

• Robust build suitable for residential and remote solar installations
