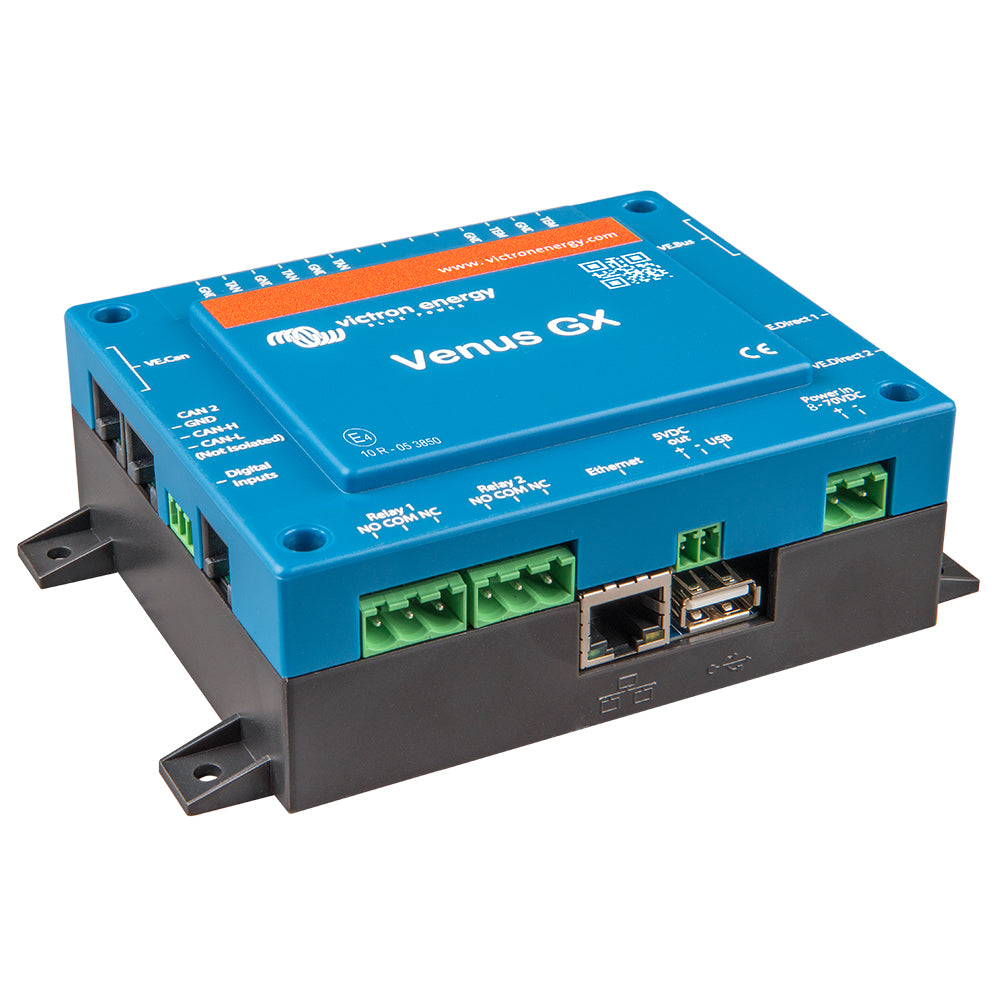

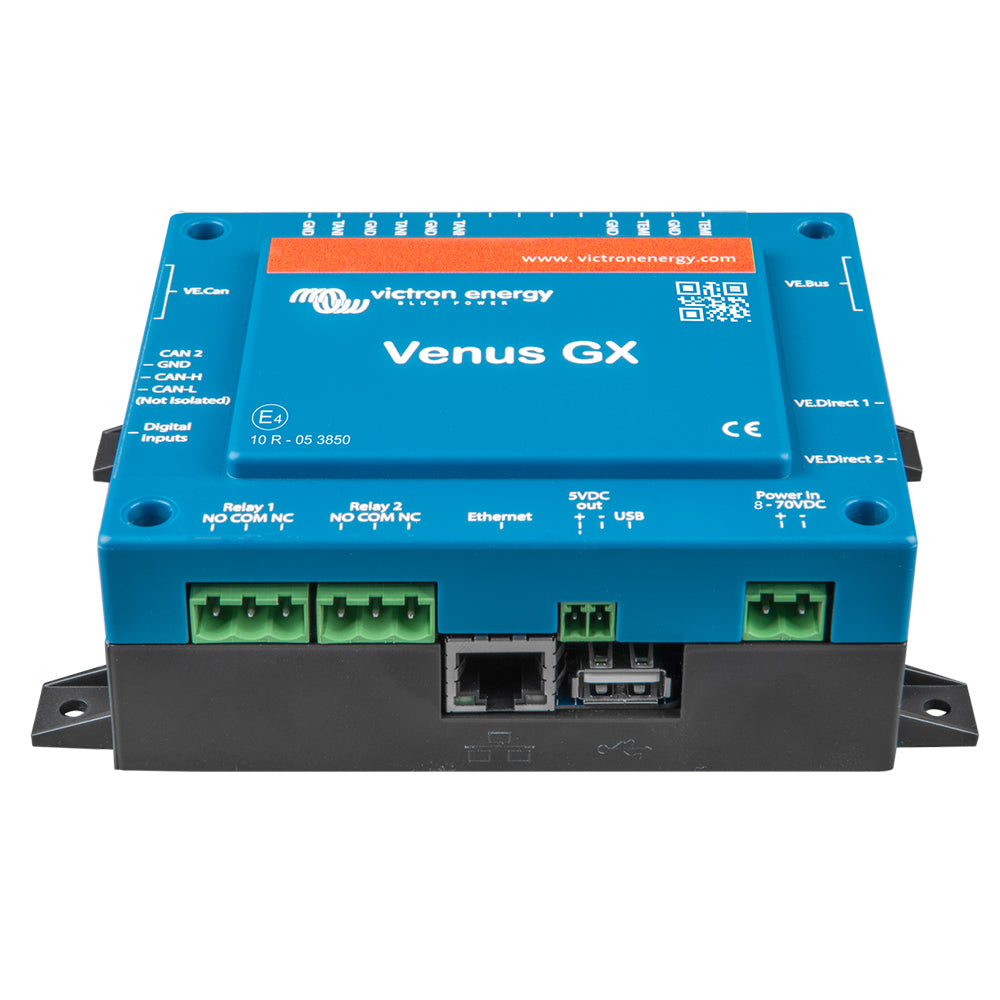

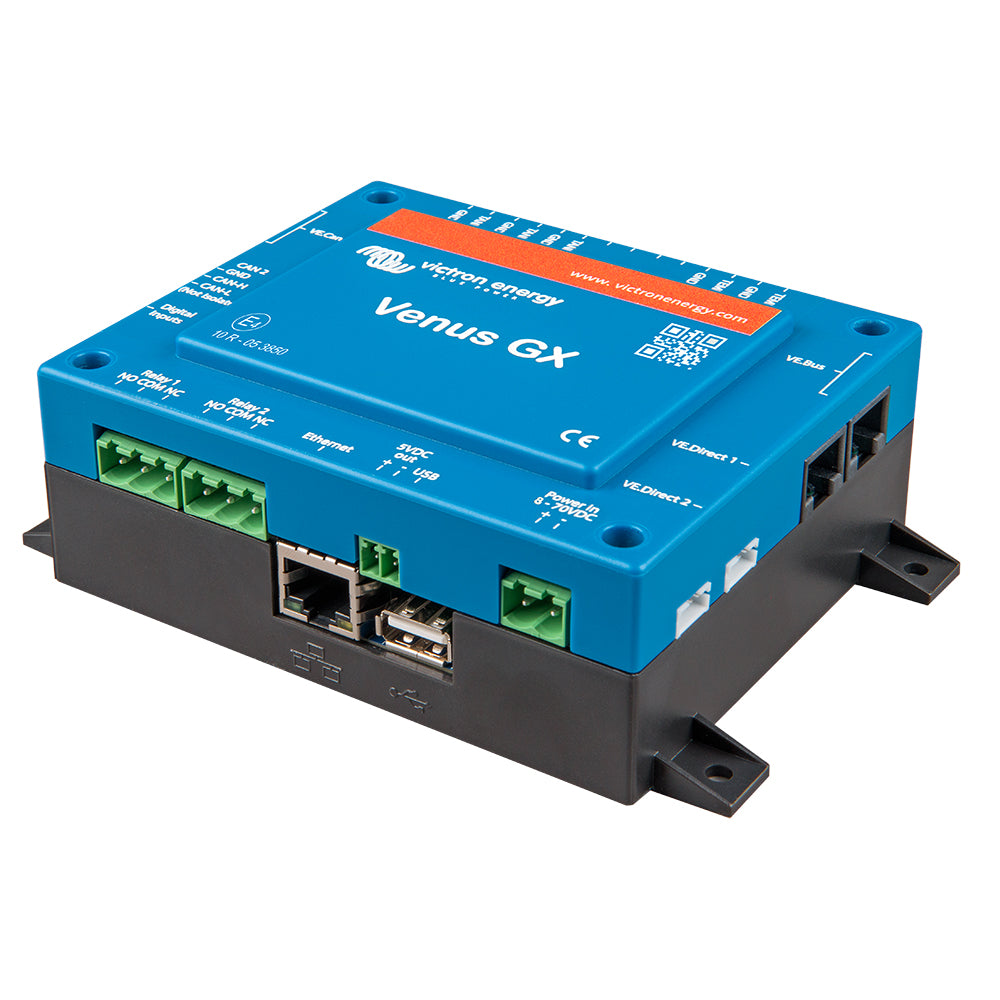

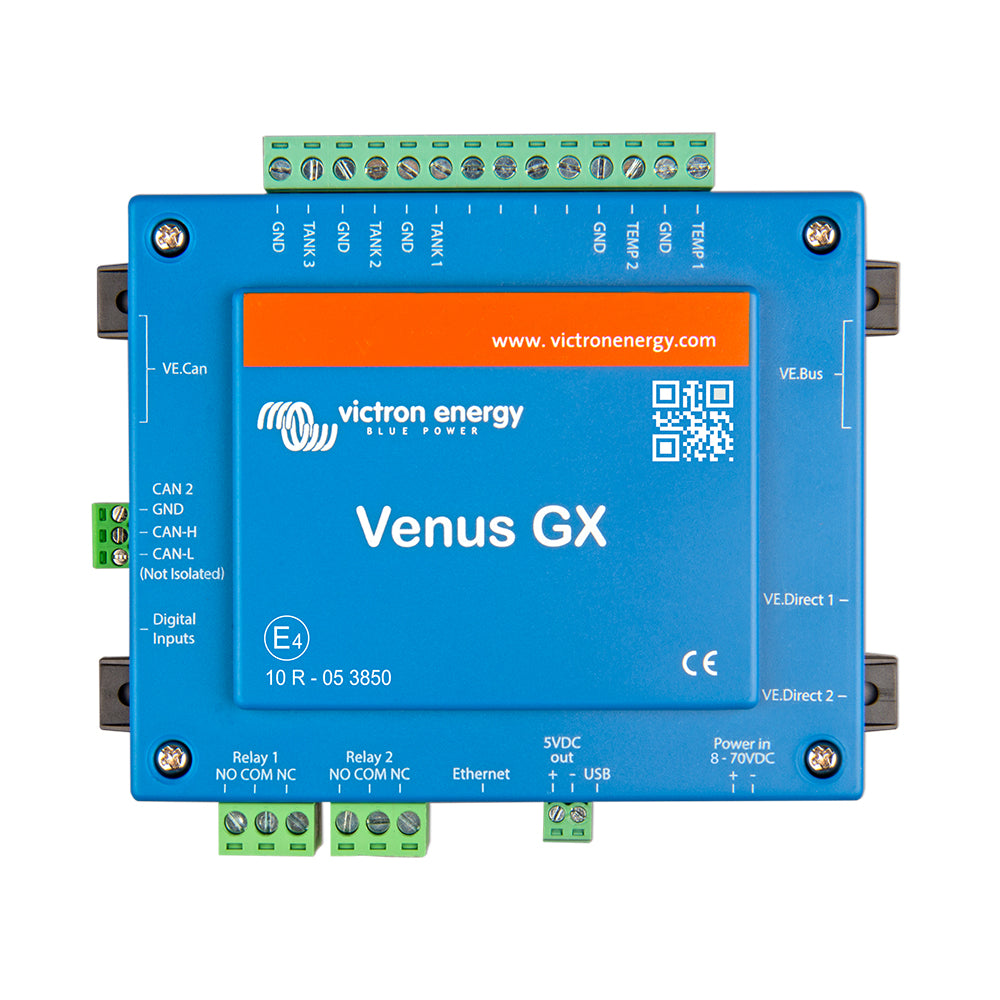

Victron Energy Venus GX Control - No Display

Venus GX Control - No Display

Features:

• Venus GX The Venus GX provides intuitive control and monitoring for all Victron power systems. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT solar chargers, BMV battery monitors, Lynx Ion + Shunt and more.
• VRM Online Portal All readings are forwarded to our free remote monitoring website: the VRM Online Portal. To get an impression, try the demo on https://vrm.victronenergy.com. See also the screenshots below.
• Remote Console on VRM The way to access the device for setting up, as well as monitoring, is via Remote Console. Either via VRM, via the built-in WiFi Access Point, or on the local LAN/WiFi network.
• Automatic genset start/stop A highly customizable start/stop system. Use state of charge, voltage, load and other parameters. Define a special set of rules for quiet times, and optionally a monthly test run.
• Data logging When connected to the internet, all data is sent to the VRM Portal. When there is no internet connection available, the Venus GX will store the data internally, up to 48 hours. By inserting a micro SD-card or USB stick, more data can be stored. These files can then be uploaded to the VRM Portal, or offline converted with the VictronConnect app, for analysis.
• Supported products - Multis and Quattros, including split-phase and three-phase systems. Monitoring and control (on/off and current limiter). Changing configuration is possible (only remotely via the internet, not without an internet connection). - EasySolar 1600VA - BlueSolar MPPT Solar Chargers with a VE.Direct port. - BlueSolar MPPT 150/70 and the MPPT 150/85 with VE.Can port. - SmartSolar MPPT 150/70 and the MPPT 150/100 with VE.Can port. When multiple BlueSolar MPPTs or SmartSolar MPPTs with VE.Can are used in parallel, all the information is combined as one. See also our blog-post about synchronizing multiple MPPT 150/70 solar chargers. - BMV-700 family can be connected directly to the VE.Direct ports on the Venus GX. Use the VE.Direct Cable for this. - BMV-600 family can be connected to the VE.Direct ports on the Venus GX. Requires an accessory cable. - Lynx Ion + Shunt - Lynx Ion BMS - Lynx Shunt VE.Can - Skylla-i battery chargers - NMEA2000 tank sensors - A USB GPS can be connected to the USB port. The data is sent to the VRM Portal for tracking purposes. The map on VRM will show the latest position. - Fronius PV Inverters When more than two VE.Direct products must be connected, USB can be used.

Warranty Info

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Victron Energy Venus GX Control (Part Number: BPP900400100) offers comprehensive monitoring and control for a wide range of Victron power systems without an integrated display. This device seamlessly connects with inverters, Multis, Quattros, MPPT solar chargers, battery monitors, Lynx Ion + Shunt, and more, enabling users to manage complex energy setups efficiently. Its intuitive control capabilities are complemented by remote access via the VRM Online Portal, allowing users to monitor real-time data and system performance from anywhere with an internet connection. The portal also provides detailed data logging, storing up to 48 hours internally, with options to expand storage using micro SD cards or USB sticks for offline analysis. The Venus GX supports a variety of products, including BlueSolar and SmartSolar MPPT chargers, BMV family battery monitors, and Lynx systems, offering flexible integration for both small and large installations. The device's remote console can be accessed through VRM, built-in WiFi, or local LAN/WiFi, simplifying setup and ongoing management. Additionally, the system features an automatic genset start/stop function based on parameters such as state of charge, voltage, or load, with customizable rules for quiet periods and scheduled test runs. This control capability enhances the efficiency and automation of your energy system, reducing manual intervention and optimizing performance. Data synchronization with the VRM portal ensures that system insights are always available, and offline data storage ensures continuous monitoring even during internet outages. The Venus GX is compatible with various communication protocols, including VE.Direct, VE.Can, and USB, enabling integration with a broad ecosystem of Victron products and third-party devices like Fronius PV inverters and NMEA2000 sensors. Robust and versatile, the Venus GX is an essential component for advanced energy management in residential, commercial, or mobile applications, providing reliable control and comprehensive system visibility without the need for a display panel.

Features:

• Intuitive control and monitoring for Victron power systems including inverters, Multis, Quattros, and solar chargers

• VRM Online Portal allows remote access, real-time data, and detailed system insights

• Remote console accessible via VRM, WiFi, or local LAN/WiFi network for setup and management

• Automatic genset start/stop based on customizable rules such as load, voltage, and state of charge

• Data logging with internal storage up to 48 hours and expandable options via micro SD or USB for offline analysis

• Supports a broad range of Victron products including MPPT chargers, battery monitors, Lynx systems, and third-party devices

• Compatibility with VE.Direct, VE.Can, and USB interfaces for flexible integration

• Designed for versatile applications in residential, commercial, and mobile energy systems
