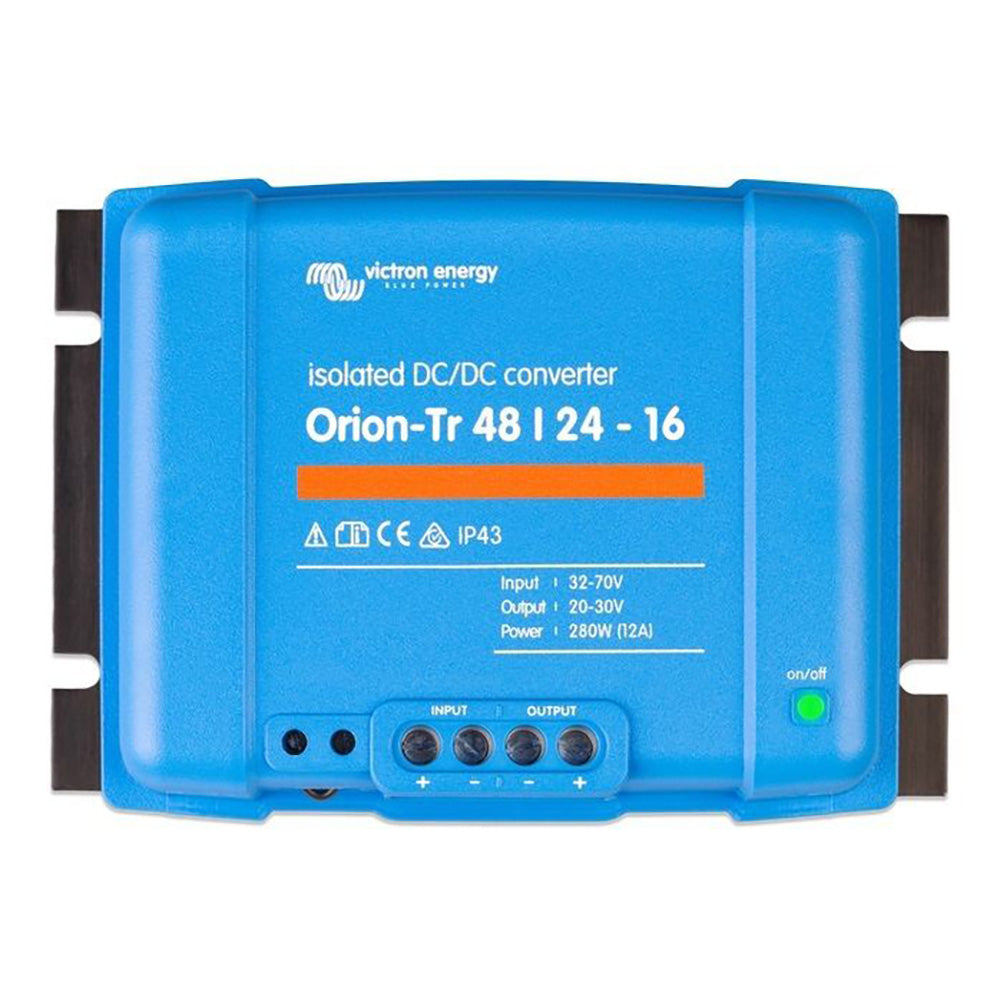

Orion-TR 48/24-16A (380W) Isolated DC-DC Converter

Isolated Model - separate in and out (-) leads

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications:

• Input Voltage Range: 40-70 V
• Under Voltage Shut Down: 28 V
• Under Voltage Restart: 30 V
• Nominal Output Voltage: 24.2 V
• Output Voltage Adjust Range: 20-30 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 16 A
• Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
• Short Circuit Output Current: 40 A
• Cont. Output Power at 25 Degrees C: 430 W
• Cont. Output Power at 40 Degrees C: 380 W
• Efficiency: 89 %
• No Load Input Current (2): < 80 mA
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per C above 40 C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm AWG6
• Weight: 1.6 kg (3.5 lb)
• Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Safety Standards: EN 60950
• Emission Standard: EN 61000-6-3, EN 55014-1
• Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5

Please contact your dealer for any returns, repairs or support issues related to this product.

The Victron Orion-TR 48/24-16A is a high-performance isolated DC-DC converter designed for reliable power conversion in demanding applications. With an input voltage range of 40 to 70 V, this unit efficiently steps down 48 VDC systems to a stable 24 VDC output, capable of providing up to 16 amps of continuous current at 430 watts. Its galvanic isolation of 200 VDC ensures safety and prevents ground loops, making it suitable for sensitive electronic systems. The converter features an adjustable output voltage that can be set between 20 and 30 V, allowing customization for specific needs, although it is not intended for battery charging without additional components like the Orion-Tr Smart series.

All models are short circuit proof and can be paralleled without limit to increase total output current, offering flexibility for expanding power systems. The remote on/off terminal allows control via low-power switches or engine run/stop signals, eliminating the need for high-current switches in input wiring and simplifying installation. The unit is built with screw terminals for quick, tool-free connections and is rated IP43 for protection when mounted with terminals downward, suitable for outdoor or harsh environments.Designed for durability, the Orion-TR includes high temperature protection that reduces output current at elevated ambient temperatures, ensuring longevity and stable operation. Its efficiency of 89% minimizes energy loss, while the compact dimensions and lightweight design facilitate installation in space-constrained environments. The converter adheres to safety and electromagnetic compatibility standards such as EN 60950, EN 61000-6-3, and EN 55014, and complies with automotive directives like ECE R10-5. For detailed installation and operation instructions, refer to the manufacturer’s manual available online.Whether used in automotive, marine, or industrial applications, the Victron Orion-TR 48/24-16A provides a reliable, scalable power solution that ensures consistent voltage regulation, safety, and ease of integration in complex systems.

Features:

• Isolated design with separate input and output (-) leads for safety and flexibility

• Remote on/off terminal for low-power control, eliminating high-current switches

• Short circuit proof with unlimited paralleling capability for increased output current

• High temperature protection reduces output at elevated ambient temperatures

• IP43 rated enclosure with screw terminals for quick connection

• Adjustable output voltage from 20 to 30 V for versatile applications

• Galvanic isolation of 200 VDC enhances safety and system stability

• Built-in input fuse (not replaceable in 12V and 24V models) for protection

• Efficient operation with 89% efficiency and low no-load input current

• Complies with international safety, emission, and immunity standards for reliable use in various environments
