Volt Tech Black 17A 12V Harley Davidson G Models Alternator Conversion Kit
Replace your vintage Harley’s generator and regulator with a compact, high-output alternator designed for G series machines. The kit’s 3-1/4 inch long unit weighs 3 lbs and delivers 17 amps at 1000 rpm to improve electrical performance for restoration or daily riding.
- High power output: 17 amps at 1000 rpm
- Compact size: 3-1/4 inch length; weight 3 lbs
- Billet housing for precise alignment and a stress-proof shaft for durability
- Mount compatibility: 5/16 inch x 24 mount holes

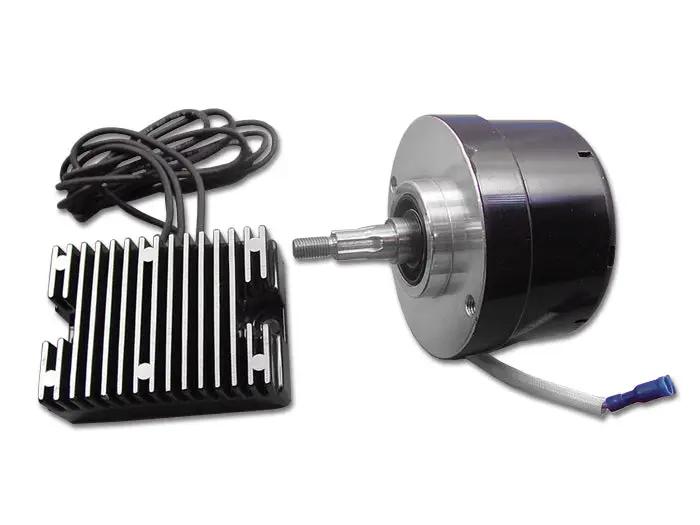

- Includes black alternator and black regulator (mounting required); regulator is not built-in and must be mounted remotely
- Outer cover with rotor magnets encased in a stainless steel shell
- Replaces original generator and regulator and is compatible with Harley G models; adaptable for XL (1957-1983) and FL (1941-1969) models with drilled generator bolt holes
- Optional Helicoil kit converts 12-volt generators with 5/16-24 threads to 1/4-24 threads
- Recommended gear kits: #32-0983 for XL (14-tooth) and #32-0204 for Big Twin (13-tooth)
- Seals: PHLE #TC1835; thread repair kit: #16-0920
- Requires a 12-volt battery
- Rotor housed in a large hex nut outer cover for protection and access
- Built in Taiwan for quality assurance
- Not compatible with mini batteries (12N55A-3B)
To complete installation, order the appropriate mount screws, gaskets, and gear kits tailored to your motorcycle model. For detailed installation instructions, refer to the provided guide.
Generator alternator conversion kit replaces original generator and regulator. Compact high output alternator measures 3-1/4 inch long weighing only 3 lbs. The 2 short wires from the regulators go to alternator terminals long wire.
Upgrade your Harley Davidson G series with the Volt Tech Black 17 Amp 12 Volt Alternator Generator Conversion Kit. This comprehensive kit includes a black alternator and a black regulator, designed to deliver high power output of 17 amps at 1000 rpm, providing reliable and efficient electrical performance for vintage Harley models. The alternator features a billet housing that ensures precise alignment and a stress-proof shaft for enhanced durability, making it a robust choice for demanding riding conditions. With 5/16 inch x 24 mount holes, the kit is compatible with a wide range of Harley models, including 1936 through 1945 G series, and can be adapted for use on 1957-1983 XL and 1941-1969 FL models with drilled generator bolt holes. An optional Helicoil kit allows conversion of 12-volt generators with 5/16-24 threads to 1/4-24 threads, facilitating compatibility with early mounting hardware.
The outer cover of the alternator houses the rotor magnets encased in a stainless steel shell, which turns when the engine runs, generating electrical power. This design ensures a reliable power source for vintage Harley Davidson motorcycles. The kit is recommended to be used with specific gear kits—#32-0983 for XL models with 14-tooth gears and #32-0204 for Big Twin models with 13-tooth gears—to optimize performance. It is also advised to use manufacturer-recommended seals, such as PHLE #TC1835, and thread repair kits like #16-0920, to ensure longevity and proper installation. Please note that the black finned regulator is not built-in and must be mounted remotely, and this kit cannot be used with mini batteries (12N55A-3B).
Designed for easy installation, this kit requires a 12-volt battery and includes all necessary components for a seamless upgrade. The alternator’s rotor is housed in a large hex nut outer cover, providing protection and easy access. To complete your setup, order the appropriate mount screws, gaskets, and gear kits tailored to your specific motorcycle model. For detailed installation instructions, refer to the provided link. Built in Taiwan, this high-quality kit ensures dependable performance and improved electrical capacity for your vintage Harley Davidson motorcycle, making it an excellent choice for restoration or upgrade projects.
Features:
- High power output: 17 amps at 1000 rpm
- Billet housing for accurate alignment and durability
- Stress-proof shaft for long-lasting performance
- Mount holes: 5/16 inch x 24 for versatile application
- Outer cover with stainless steel shell and rotor magnets
- Includes black alternator and regulator (mounting required)
- Compatible with Harley Davidson G models and adaptable for XL and FL models with drilled bolt holes
- Recommended gear kits: #32-0983 (XL) and #32-0204 (Big Twin)
- Suitable for 12-volt replacement with optional Helicoil conversion
- Manufactured in Taiwan for quality assurance
Fitment:
Harley Davidson FL 1941
Harley Davidson FL 1942
Harley Davidson FL 1943
Harley Davidson FL 1944
Harley Davidson FL 1945
Harley Davidson FL 1946
Harley Davidson FL 1947
Harley Davidson FL 1948
Harley Davidson FL 1949
Harley Davidson FL 1950
Harley Davidson FL 1951
Harley Davidson FL 1952
Harley Davidson FL 1953
Harley Davidson FL 1954
Harley Davidson FL 1955
Harley Davidson FL 1956
Harley Davidson FL 1957
Harley Davidson FL 1958
Harley Davidson FL 1959
Harley Davidson FL 1960
Harley Davidson FL 1961
Harley Davidson FL 1962
Harley Davidson FL 1963
Harley Davidson FL 1964
Harley Davidson FL 1965
Harley Davidson FL 1966
Harley Davidson FL 1967
Harley Davidson FL 1968
Harley Davidson FL 1969
Harley Davidson G 1936
Harley Davidson G 1937
Harley Davidson G 1938
Harley Davidson G 1939
Harley Davidson G 1940
Harley Davidson G 1941
Harley Davidson G 1942
Harley Davidson G 1943
Harley Davidson G 1944
Harley Davidson G 1945
Harley Davidson G 1946
Harley Davidson G 1947
Harley Davidson G 1948
Harley Davidson G 1949
Harley Davidson G 1950
Harley Davidson G 1951
Harley Davidson G 1952
Harley Davidson G 1953
Harley Davidson G 1954
Harley Davidson G 1955
Harley Davidson G 1956
Harley Davidson G 1957
Harley Davidson G 1958
Harley Davidson G 1959
Harley Davidson G 1960
Harley Davidson G 1961
Harley Davidson G 1962
Harley Davidson G 1963
Harley Davidson G 1964
Harley Davidson G 1965
Harley Davidson G 1966
Harley Davidson G 1967
Harley Davidson G 1968
Harley Davidson G 1969
Harley Davidson G 1970
Harley Davidson G 1971
Harley Davidson G 1972
Harley Davidson G 1973
Harley Davidson W 1936
Harley Davidson W 1937
Harley Davidson W 1938
Harley Davidson W 1939
Harley Davidson W 1940
Harley Davidson W 1941
Harley Davidson W 1942
Harley Davidson W 1943
Harley Davidson W 1944
Harley Davidson W 1945
Harley Davidson W 1946
Harley Davidson W 1947
Harley Davidson W 1948
Harley Davidson W 1949
Harley Davidson W 1950
Harley Davidson W 1951
Harley Davidson W 1952
Harley Davidson XL 1958
Harley Davidson XL 1959
Harley Davidson XL 1960
Harley Davidson XL 1961
Harley Davidson XL 1962
Harley Davidson XL 1963
Harley Davidson XL 1964
Harley Davidson XL 1965
Harley Davidson XL 1966
Harley Davidson XL 1967
Harley Davidson XL 1968
Harley Davidson XL 1969
Harley Davidson XL 1970
Harley Davidson XL 1971
Harley Davidson XL 1972
Harley Davidson XL 1973
Harley Davidson XL 1974
Harley Davidson XL 1975
Harley Davidson XL 1976
Harley Davidson XL 1977
Harley Davidson XL 1978
Harley Davidson XL 1979
Harley Davidson XL 1980
Harley Davidson XL 1981
Harley Davidson XL 1982
