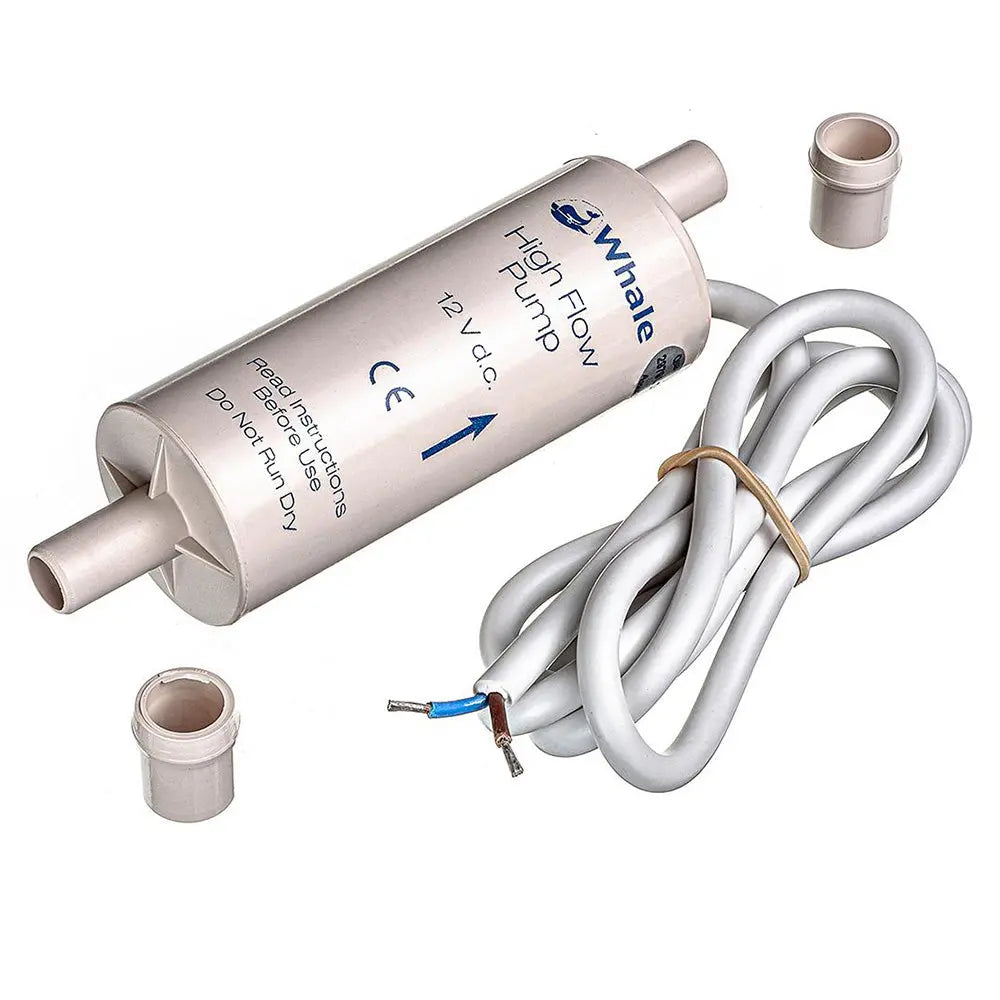

Whale Marine GP1692 Inline Booster High Flow Electric Galley Pump - 12V

Inline Booster High Flow Electric Galley Pump - 12V

This high-performance whale pump fits inline to increase the flow rate.

Features:

• The narrow design is ideal for dropping into the water tank
• Compact, quiet, lightweight design for use with pressure switch and microswitch systems
• An inexpensive way to upgrade a manual water system
• Also suitable for pumping diesel
• Low power consumption

Specifications:

• Pump Type: Inline
• Weight: 015 kg (0.3 lbs.)
• Voltage: 12 VDC
• Recommended Fuse Size: 5 amps
• Cable Length: 1m (3 ft.)
• Hose Connection: Suitable for 10 mm (38 in.) or 13 mm (1/2 in.) flexible hose use WX1511B (stern adapter 11-15 mm) and connect WX1504 (15 mm (5/8 in.) equal straight
• Filter Included: No
• Length: 129 mm (5-1/16 in.)
• Width: 36 mm (1-7/16 in.)

Materials:

• Pump Body: ABS
• Seal: Nitrile
• Strainer: Polyurethane
• Impeller: PBT
• Cable: PVC

Performance:

• Discharge Head: Flow rate per minute/current draw @ 12VDC
• 0 m (0 ft.): 15.8 liters (4 US gallons) 3.8 amps
• 1 m (3 ft.): 14.8 liters (4 US gallons) 3.7 amps
• 3 m (10 ft.): 12.8 liters (3.5 US gallons) 3.5 amps

1 Year Warranty:

• CE certified
• ISO 88846
• ISO 10133
• ABYC H-23
• IP67

The Whale Marine GP1692 inline booster pump offers a high-flow, compact solution for increasing water pressure in marine systems. Designed with a narrow profile, this pump easily fits into water tanks or tight spaces, making it ideal for upgrading manual water systems or enhancing existing pressurized setups. Its lightweight and quiet operation ensure minimal disruption on board while delivering reliable performance. Suitable for use with pressure switches and microswitch systems, the GP1692 provides an efficient and affordable way to improve water delivery without significant power consumption or complex installation requirements.
The pump features a durable ABS body, nitrile seals, and a polyurethane strainer, ensuring longevity even in demanding marine environments. Its impeller made from PBT and PVC wiring contribute to the pump's robustness and corrosion resistance. The pump connects to flexible hoses of 10 mm (3/8 inch) or 13 mm (1/2 inch), with included adapters for easy installation. With a voltage requirement of 12V DC and a recommended fuse size of 5 amps, the GP1692 operates efficiently with minimal electrical load. It is CE certified and meets standards such as ISO 88846, ISO 10133, and ABYC H-23, confirming its safety and quality for marine applications.
Performance-wise, this inline booster pump can deliver approximately 15.8 liters (4 US gallons) per minute at 0 meters, with decreasing flow over longer hose runs. Its low power draw of around 3.5 to 3.8 amps makes it suitable for continuous operation without draining batteries quickly. Its IP67 rating ensures resistance to dust and water ingress, providing dependable operation in harsh marine conditions. Whether used to pump water or diesel, the Whale GP1692 is a versatile and reliable choice for boat owners seeking to upgrade their water systems with an efficient inline booster pump.

Features:

• Narrow design ideal for fitting into water tanks or tight spaces

• Compact, lightweight, and quiet operation suitable for pressure switch systems

• An economical solution for upgrading manual water systems to pressurized flow

• Capable of pumping diesel in addition to water

• Low power consumption for efficient operation

• Durable ABS pump body with nitrile seals and polyurethane strainer

• Easy hose connection with adapters for 10 mm and 13 mm flexible hoses

• Operates on 12V DC with a recommended 5-amp fuse

• CE, ISO 88846, ISO 10133, and ABYC H-23 certified, IP67 rated for durability
