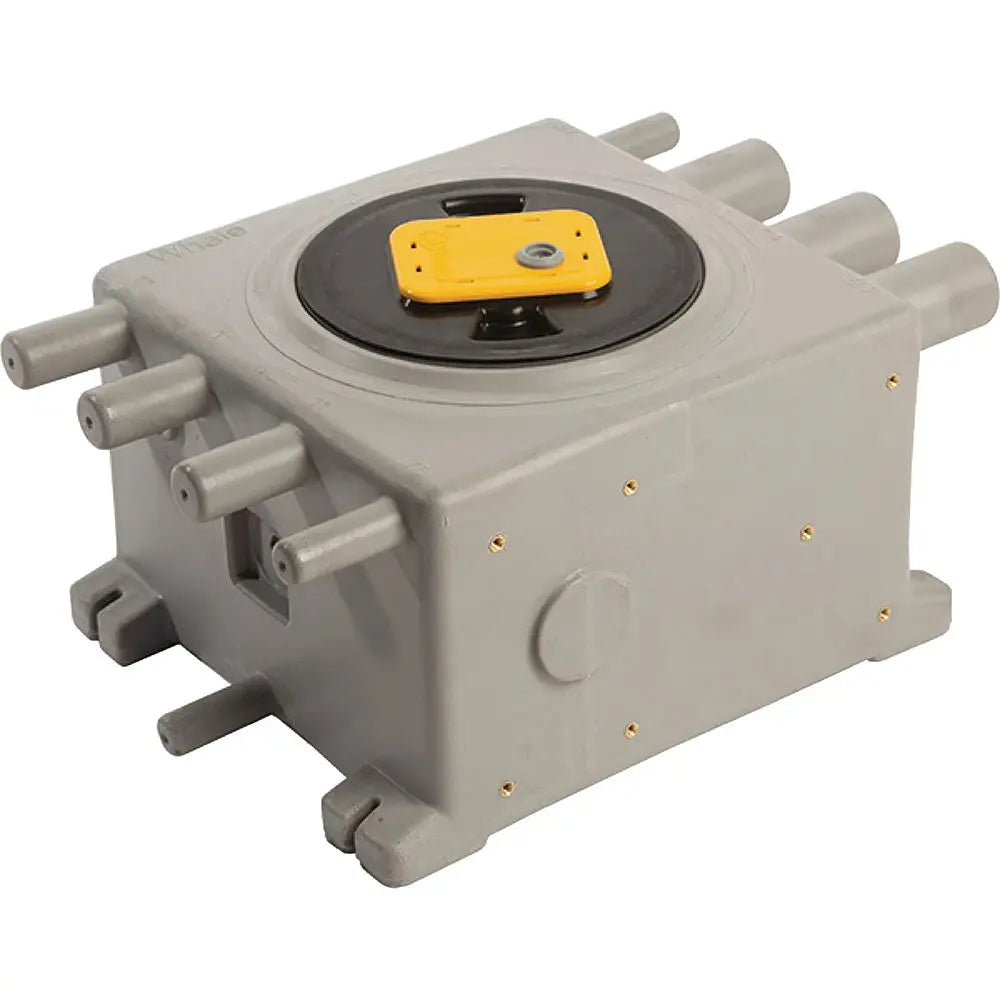

Whale Marine Grey Waste Tank - 8 Liter (2.1 Gallons) with Sensor - Model GT0810B

Grey Waste Tank - 8 Liter - 2.1 Gallons - 1 Sensor

This tank has a unique triple seal lid that isolates electronics from the harsh grey waste environment for advanced durability.

Features:

• Integrated sensors for automatic pump control; a solid-state switch protected against water ingress
• Easy wiring - connect any 12V or 24V DC pump system (up to 20 amps with no relay required)
• Ports shaped for drilling accuracy (8-liter and 20-liter tanks only)
• Double switch models - the second sensor can be wired to a high-level alarm or second pump
• Pumps can be top- or side-mounted on a 20-liter tank

Specifications:

• Capacity: 8 liters (2.1 gallons)
• No. of Sensors: 1
• Electrical Connections: Tinned wire ends
• Inlet Hose Connections: 19mm (") x 2, 25mm (1") x 3, 38mm (1") x 3
• Outlet Hose Connections: 19mm (") x 1, 25mm (1") x 1
• Materials: Tank: MDPE, Seals: EPDM/Neoprene, Monprene, Lid: Glass-filled Polypropylene, ABS, Polyurethane
• Service Kits (Lid Sensor Array): AK1005

The Whale Marine Grey Waste Tank Model GT0810B offers a reliable solution for waste management with a capacity of 8 liters (2.1 gallons). Designed with a durable triple seal lid, this tank isolates electronics from harsh grey waste environments, providing enhanced durability and longevity. The integrated sensor system enables automatic pump control, utilizing a solid-state switch that is protected against water ingress for reliable operation in demanding conditions. The tank's wiring is straightforward, compatible with any 12V or 24V DC pump system up to 20 amps, eliminating the need for relays and simplifying installation. Ports are precisely shaped for drilling accuracy, ensuring a secure fit for inlet and outlet hoses, with multiple connection sizes to accommodate various setups. A double switch model allows the second sensor to be wired for a high-level alarm or an additional pump, offering flexible control options. Pumps can be mounted on the top or side of the tank, especially on the 20-liter models, enhancing versatility in installation. Constructed from MDPE with seals made of EPDM, Neoprene, and Monprene, the tank combines durability with chemical resistance. The lid features a glass-filled polypropylene construction, ensuring strength and stability. Electrical connections are made via tinned wire ends, facilitating corrosion-resistant wiring. Overall, the Whale Grey Waste Tank GT0810B provides a dependable and efficient waste management solution suitable for marine and mobile applications, ensuring easy maintenance and long-term performance.

Features:

• Integrated sensors for automatic pump control with a protected solid-state switch

• Easy wiring compatible with 12V or 24V DC pump systems up to 20 amps

• Precision-shaped ports for accurate drilling on 8-liter and 20-liter tanks

• Double switch configuration allows wiring for high-level alarm or second pump

• Flexible pump mounting options on top or side of the tank (for 20-liter model)
