Whale Marine Gulley IC Large Waste Water Outlet with Intelligent Control (Part No. SG1982B)

Gulley IC Large Waste Water Outlet

Single-outlet shower drain gulley with intelligent control built in. This product must be used with a Gulper IC since the Gulley IC is connected to a Gulper IC. When the gulley senses water, it sends an electrical signal to the gulper IC, which evacuates the system. As the water level decreases, the electrical signal transmitted by the gulley will cease. Gulper IC will continue to operate for a further 15 seconds before switching off.

Application

Gulley IC is a single outlet shower drain solution and has intelligent control built in (must be operated by a 12/24V Gulper IC unit only). Electronic sensors automatically control grey water waste level when connected to a pre-wired connection to the Gulper IC via Deutsch connectors. Due to remote monitoring, the pump receives signals from the Gulley IC and switches on and off automatically.

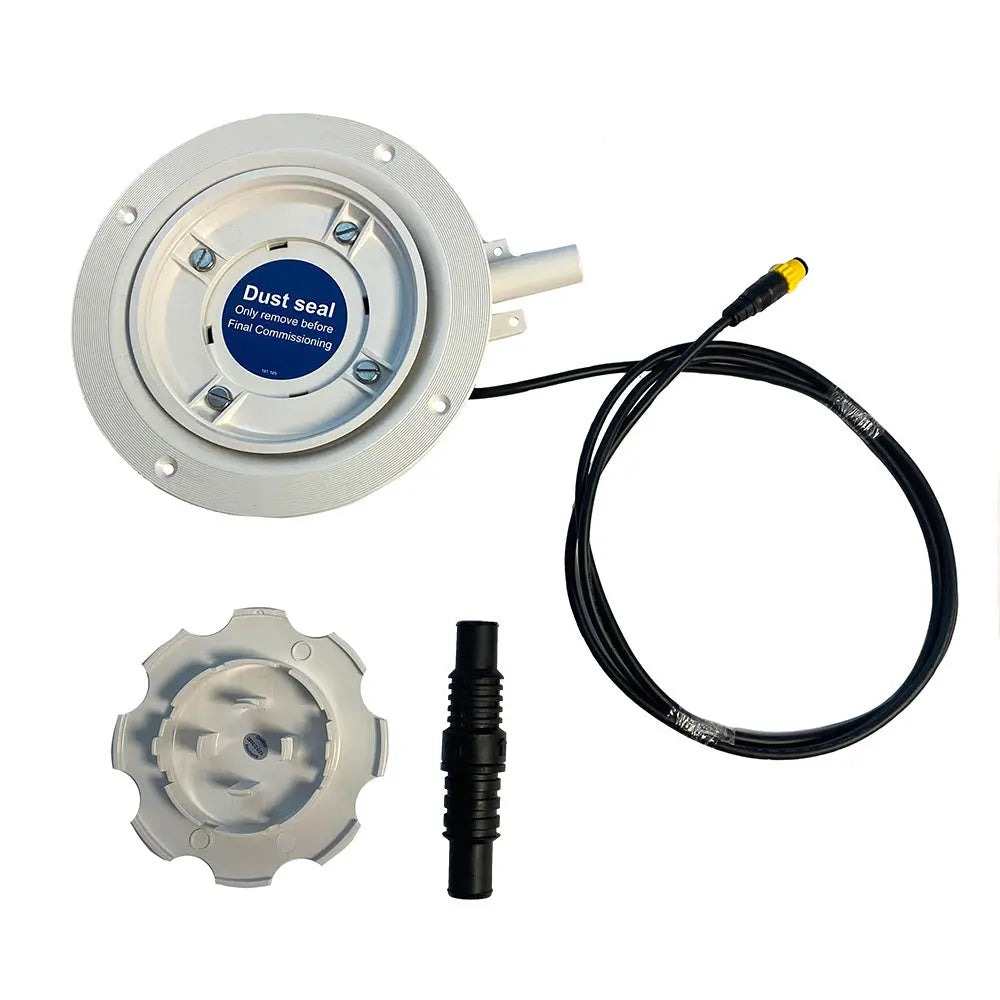

In the Box:

• Gulley IC
• Nonreturn valve
• No 8 x 25mm self-tapping screw
• Cable grip

Specifications:

• Cable Length: 2m (6ft.)
• Hose Connections: 19mm (3/4 in.) / 25mm (1 in.)
• Control voltage: 5V dc via Gulper IC Pump
• Current Draw: Low power 6mA supply
• Connectors: Deutsch connectors quick connect series 7 ways (directly onto Gulper IC)

The Whale Marine Gulley IC Large Waste Water Outlet is a sophisticated single-outlet shower drain solution designed for efficient grey water management. Featuring built-in intelligent control, this unit seamlessly integrates with the Whale Gulper IC pump system to provide automated water evacuation. When water is detected, the Gulley IC sends an electrical signal to the Gulper IC, prompting it to activate and drain the system. As water levels decrease, the signal ceases, and the pump continues to run for an additional 15 seconds to ensure complete drainage. This smart functionality helps prevent water buildup and promotes efficient waste management in marine or RV applications. The Gulley IC is compatible exclusively with 12V or 24V Gulper IC pumps, ensuring reliable operation through a pre-wired Deutsch connector connection. Its electronic sensors automatically monitor grey water levels, reducing manual intervention and enhancing system safety. The unit comes equipped with a nonreturn valve, a cable grip, and mounting hardware, simplifying installation and maintenance. The product includes a 2-meter (6-foot) cable for flexible positioning and supports hose connections of ¾ inch and 1 inch for versatile plumbing setups. Designed to operate with a low power draw of just 6 milliamps at 5V DC, the Whale Marine Gulley IC offers an energy-efficient solution for waste water control. Durable and easy to connect, this unit ensures reliable performance in demanding marine environments, making it an ideal choice for modern water management systems.

Features:

• Intelligent control: Built-in sensors automatically detect water levels and activate the pump system.

• Compatibility: Designed specifically for use with Whale Gulper IC pumps (12V/24V).

• Electrical connection: Utilizes Deutsch quick-connect series 7-way connectors for secure and easy wiring.

• Low power consumption: Draws only 6mA at 5V DC, promoting energy efficiency.

• Flexible plumbing: Supports hose connections of ¾ inch and 1 inch for versatile installation.

• Complete kit: Includes Gulley IC, nonreturn valve, mounting hardware, and cable grip for straightforward setup.

• Automatic operation: Senses water presence and manages drainage automatically to prevent overflows.

• Durable construction: Designed for marine environments with reliable electronic and mechanical components.
