SKU:97633

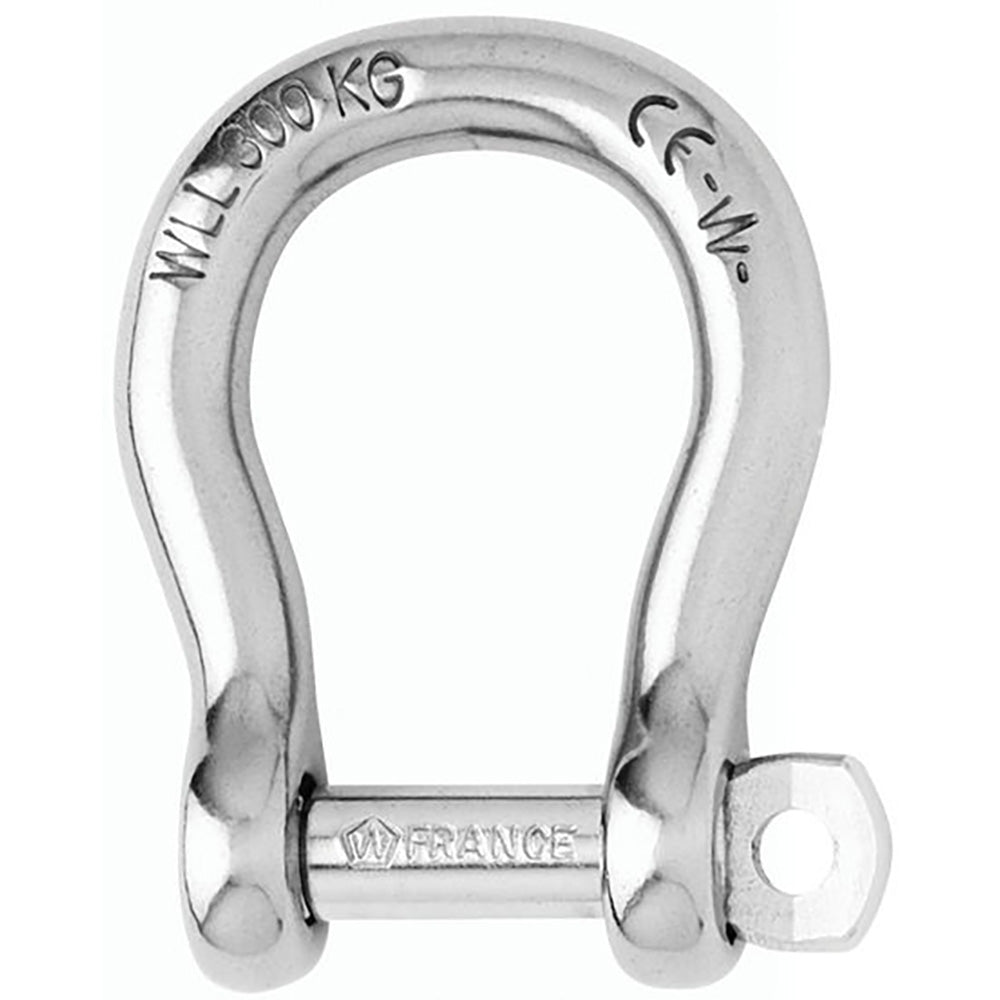

Wichard Marine 1247W Not Self-Locking Bow Shackle, 16mm Diameter (5/8 inch)

Wichard Marine 1247W Not Self-Locking Bow Shackle, 16mm Diameter (5/8 inch)

Regular price $259.38 USD
Sale price $259.38 USD Regular price
Sale Sold out
Shipping calculated at checkout.

Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"

Features:

  • Bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e)
  • CE marking
  • Part # 01247 is not self-locking

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials: 316 stainless steel grade
  • Working load: (lb) 7050 / (kg) 3200
  • WLL: (lb) 4400 / (kg) 2000
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 1.19 / (g) 540

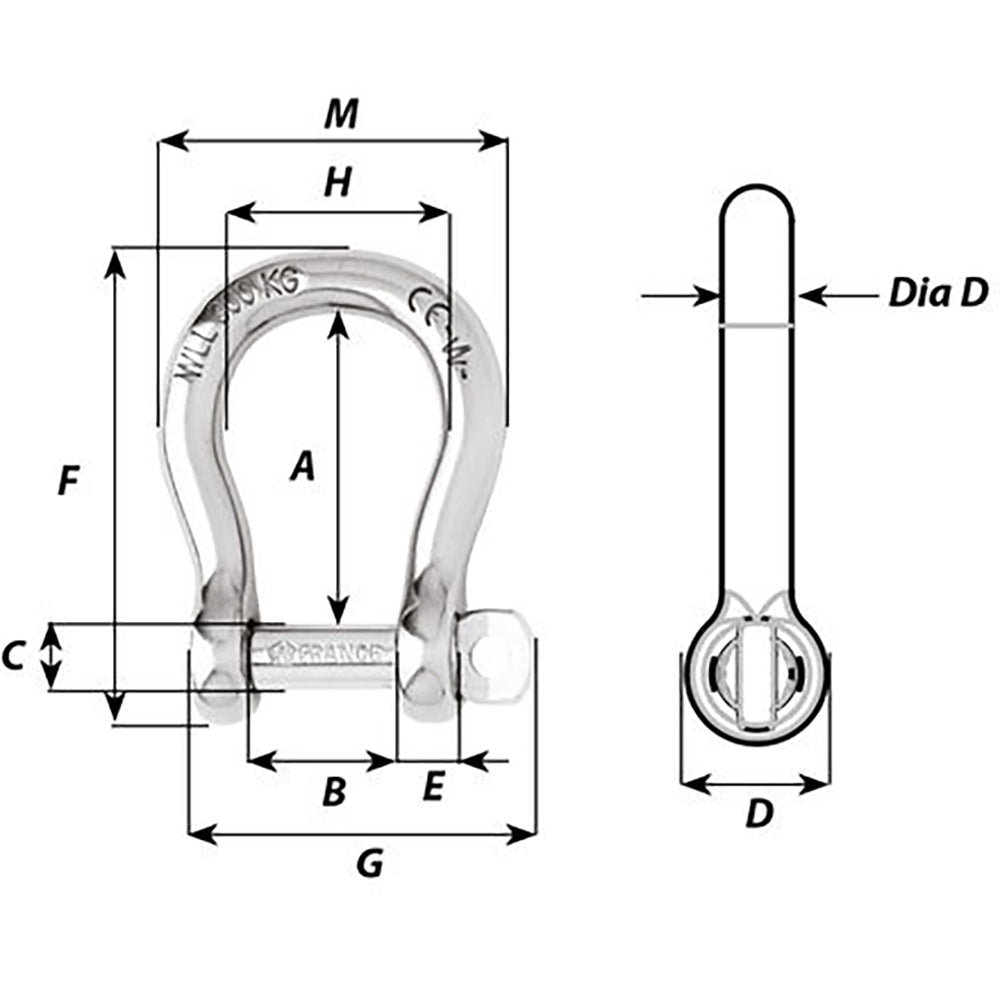

Dimensions:

  • A: (inch) 2 3/4" / (mm) 70
  • B: (inch) 1 17/64" / (mm) 32
  • C: (inch) 35/64" / (mm) 14
  • D: (inch) 1 17/64" / (mm) 14
  • D diameter: (inch) 5/8" / (mm) 16
  • E: (inch) 19/32" / (mm) 15
  • M: (inch) 3 11/32" / (mm) 85

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
    WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine 1247W Not Self-Locking Bow Shackle is crafted from durable grade 316L stainless steel, ensuring excellent corrosion resistance and strength for demanding industrial and nautical applications. Designed with a 16mm (5/8 inch) diameter pin, this shackle provides ample room for attaching multiple lines or cables, making it suitable for situations requiring flexibility and secure connections. The pin locks securely into one of the indentations, eliminating the risk of loosening caused by vibrations or dynamic loads, and ensuring safety during heavy-duty use. This shackle features outstanding working and breaking loads, with a working load limit (WLL) of 4,400 pounds (2,000 kg) and a breaking load of up to 22,040 pounds (10,000 kg), making it ideal for industrial lifting and rigging operations. It is CE marked, confirming compliance with European safety standards, and sold individually for versatile use in various applications. The robust construction and high load capacity make this bow shackle suitable for use in environments where strength and reliability are critical, such as maritime, industrial lifting, and rigging tasks. With a weight of approximately 1.19 pounds (540 grams), it balances durability with manageable handling for professional use. The dimensions are optimized for ease of installation and secure attachment, with key measurements including an overall length of about 2¾ inches and a width of just over 1 inch. This shackle is perfect when ample space is needed for attaching multiple cables or lines, providing a secure and reliable connection under demanding conditions. Please note that the WLL is intended for industrial applications, and safety factors are based on five times the breaking load, ensuring maximum safety during use.

Features:

  • Constructed from high-grade 316L stainless steel for corrosion resistance and strength
  • Pin locks securely into one of the indentations to prevent loosening due to vibrations
  • Designed with outstanding working and breaking loads for demanding applications
  • CE marked, confirming compliance with European safety standards
  • Ideal for industrial lifting, rigging, and maritime use where ample room is required
  • WLL of 4,400 pounds (2,000 kg) and breaking load up to 22,040 pounds (10,000 kg)
  • Sold as an individual for versatile application

Only 2 piece in stock!
