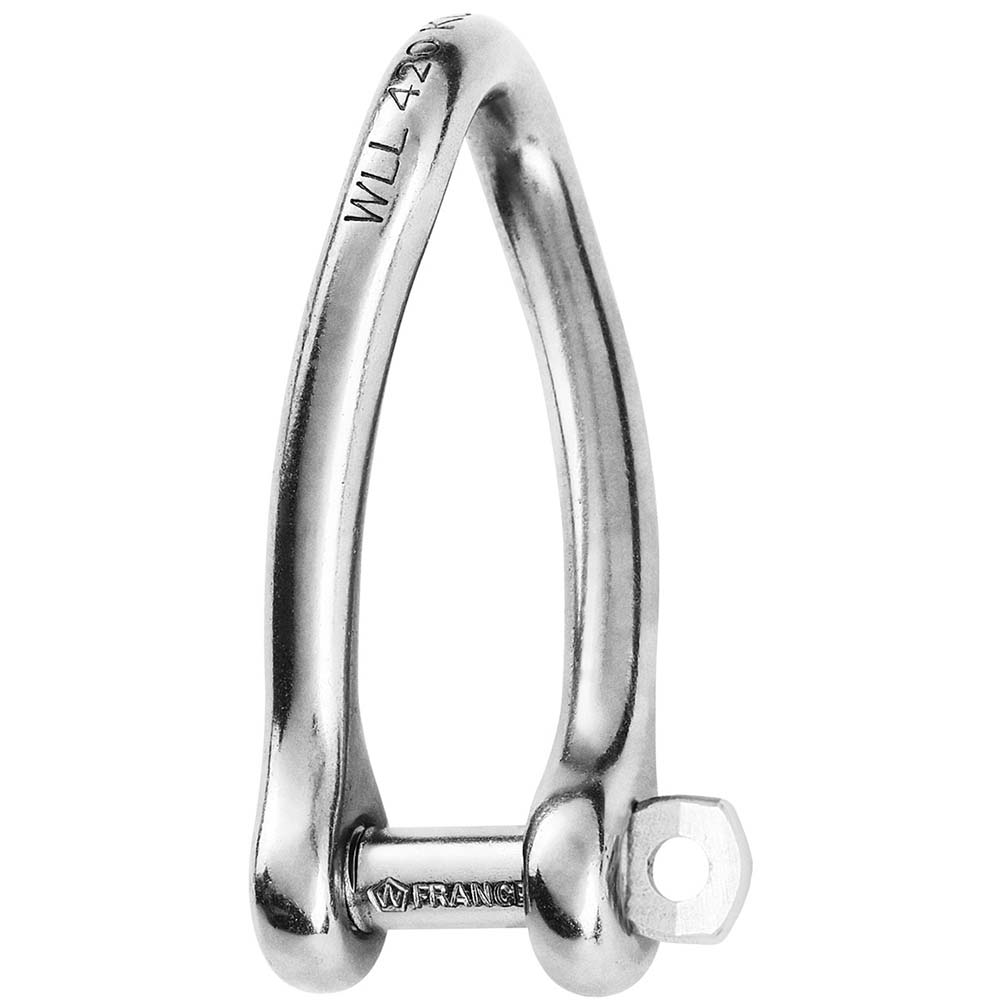

Wichard Marine 1424W Captive Pin Twisted Shackle - 8mm Diameter, 5/16 Inch

Captive Pin Twisted Shackle - Diameter 8mm - 5/16"

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loose due to vibrations
• Outstanding working and breaking loads
• Single-handed operation for more safety
• Part #1424 is not suitable for lifting applications

Applications:

• Perfect for application where a 90 angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• Breaking load (lb) 8150
• Weight (lb) 0.198

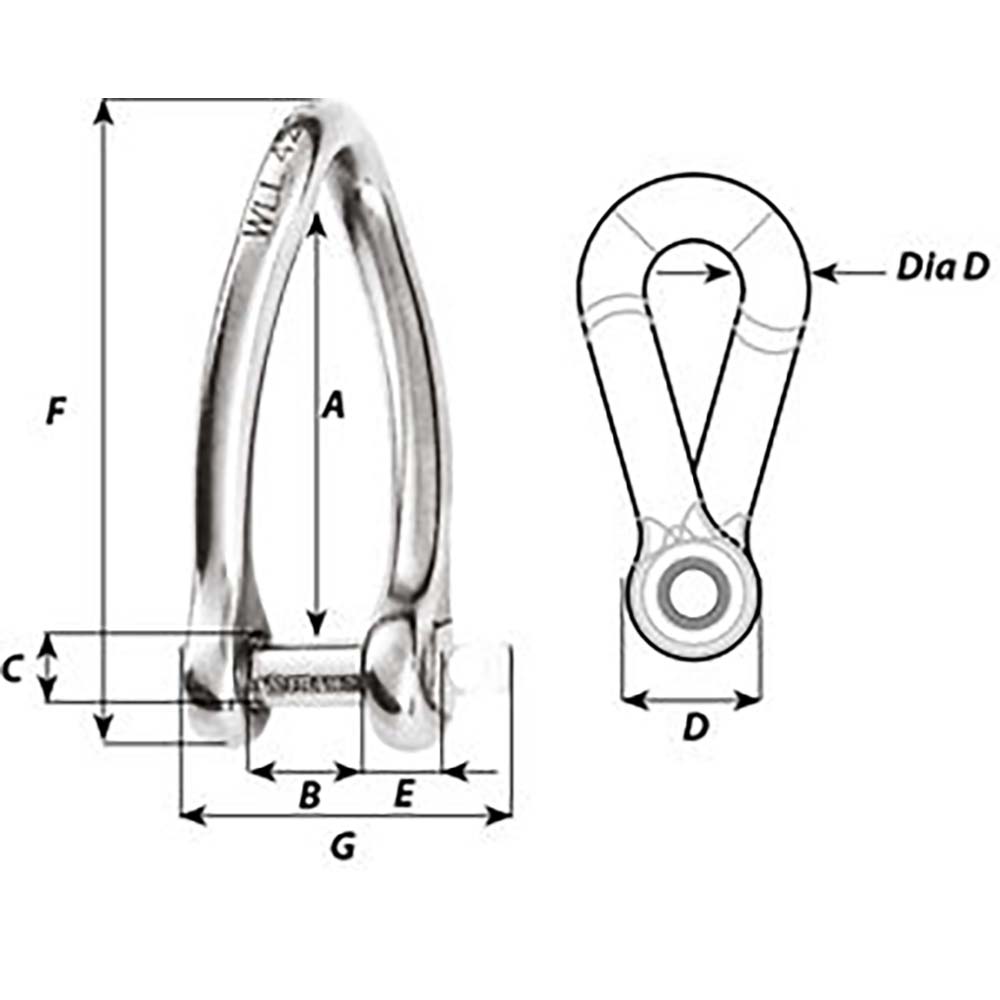

Dimensions (see 2nd image):

• A (inch) 2-21/64"
• B (inch) 5/8"
• C (inch) 23/64"
• D (inch) 45/64"
• D diameter (inch) 5/16"
• E (inch) 5/16"
• F (inch) 3-5/32"
• G (inch) 1-21/32"

The Wichard Marine 1424W Captive Pin Twisted Shackle is a reliable and durable hardware component designed for demanding marine applications. Crafted from high-grade 316L stainless steel, this shackle offers excellent corrosion resistance and strength. Its unique design features a pin that remains connected to the body at all times, even when opened, ensuring safety and preventing accidental loss during operation. The pin locks securely into one of the indentations, eliminating risks associated with vibrations or accidental disconnection. This shackle is rated for a working load of up to 2200 pounds and can withstand breaking forces of 8150 pounds, making it suitable for various heavy-duty tasks. Its ease of use allows for single-handed operation, providing added safety and convenience when working in challenging environments. The Wichard Marine Captive Pin Twisted Shackle is ideal for applications requiring a 90-degree twist setup, such as attaching unarticulated parts or components on a rail or block system. Its robust construction and secure locking mechanism make it a dependable choice for marine, industrial, and rigging uses where safety and reliability are paramount. With dimensions thoughtfully designed for compatibility, this shackle measures approximately 2-1/4 inches in length and 5/8 inches in width, with a 5/16-inch diameter pin, ensuring versatility across various setups. Whether you need a secure connection point in a marine environment or for industrial rigging, the Wichard Marine 1424W Captive Pin Twisted Shackle provides strength, security, and ease of operation in a compact package.

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel for corrosion resistance

• Pin remains connected to the body at all times, even when opened

• Locking pin securely engages in indentations to prevent accidental disconnection

• Designed to eliminate risks due to vibrations or movement

• Outstanding working and breaking load capacities for heavy-duty applications

• Single-handed operation enhances safety and ease of use

• Not suitable for lifting applications, designed for stationary or rigging setups
