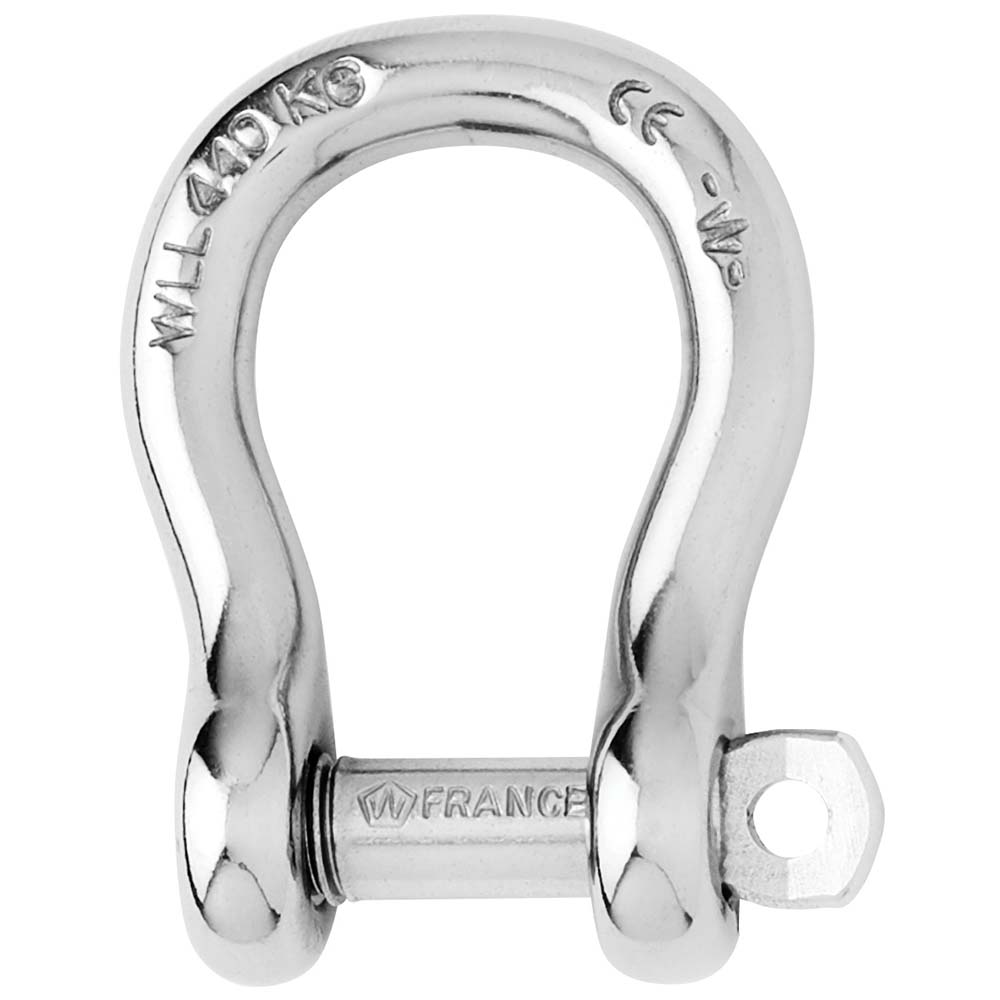

Wichard Marine 1444W Captive Pin Bow Shackle, 8mm Diameter, 5/16 Inch

Captive Pin Bow Shackle - Diameter 8mm - 5/16"

Features:

• Captive pin bow shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single handed operation for more safety
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• WLL (lb) 1630
• Breaking load (lb) 8150
• Weight (lb) 0.165

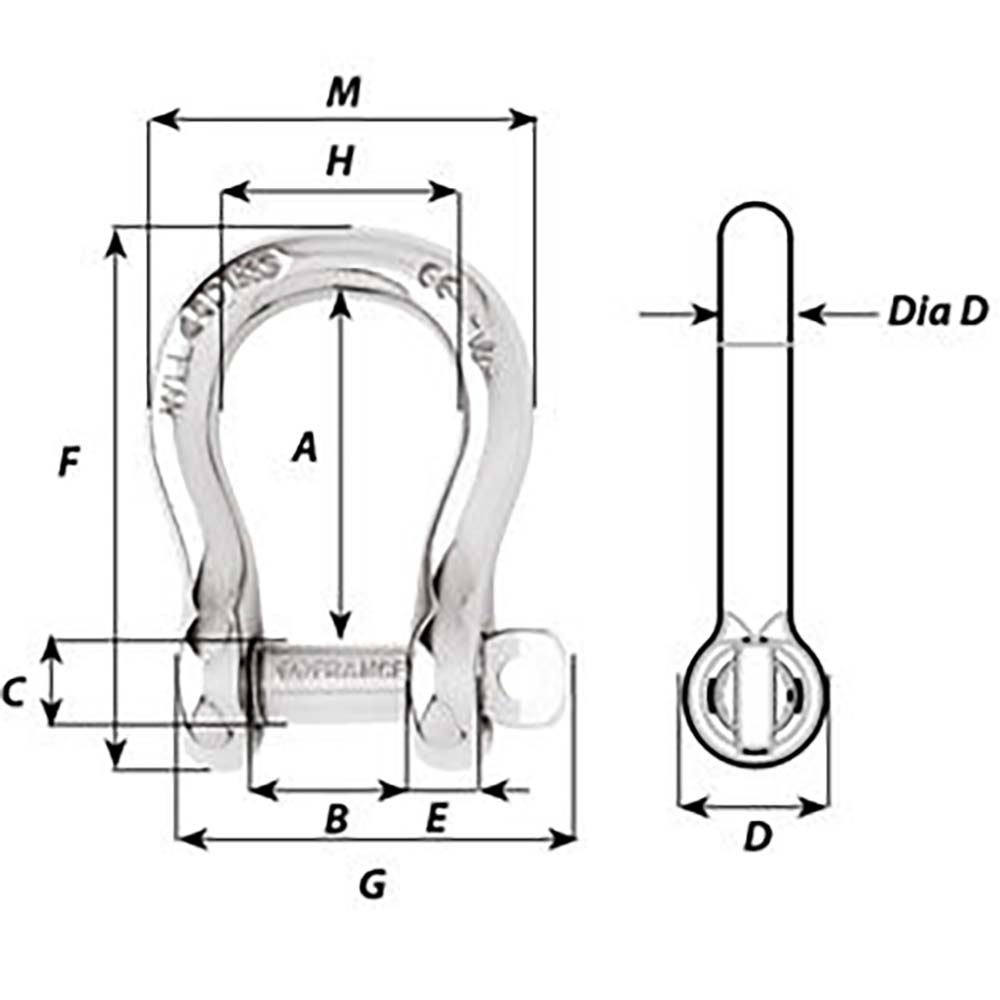

Dimensions (see 2nd image):

• A (inch) 1-29/64"
• B (inch) 5/8"
• C (inch) 23/64"
• D (inch) 45/64"
• D diameter (inch) 5/16"
• E (inch) 5/16"
• M (inch) 1-21/32"

The Wichard Marine 1444W Captive Pin Bow Shackle is a high-performance hardware component designed for demanding industrial lifting and rigging applications. Crafted from durable grade 316L stainless steel, this shackle offers exceptional corrosion resistance and strength. Its 8mm (5/16 inch) diameter pin is permanently connected to the body, ensuring safety and reliability during use. The pin locks into one of the indentations, preventing loosening due to vibrations and providing a secure connection even under heavy loads. This feature makes it suitable for situations where ample room is available and multiple lines or cables need to be attached simultaneously. The shackle's outstanding working load limit of 2,200 pounds and breaking strength of 8,150 pounds make it ideal for industrial lifting tasks that require robust hardware.

The Wichard Marine 1444W is designed with single-handed operation, enhancing safety and ease of use in demanding environments. Its CE marking and batch number certify compliance with industry standards, ensuring quality and traceability. The shackle's compact dimensions make it versatile for various applications, including marine, construction, and heavy-duty rigging projects. Its lightweight construction, weighing only about 0.165 pounds, allows for easy handling without sacrificing strength or durability. This bow shackle is suitable for use in applications where secure attachment and strength are critical, such as attaching multiple lines or cables in complex rigging setups. Its corrosion-resistant stainless steel construction ensures longevity even in harsh marine environments, making it a reliable choice for professional use. Whether used on boats, cranes, or industrial machinery, the Wichard Marine 1444W provides a trusted solution for secure and efficient load management.

Features:

• Captive pin forged in grade 316L stainless steel for durability and corrosion resistance

• Pin remains connected to the body at all times for safety

• Pin locks into indentations to prevent loosening from vibrations

• Outstanding working and breaking loads ensure reliable performance under heavy loads

• Single-handed operation enhances safety and ease of use

• CE marked with batch number for quality assurance and traceability

• Designed for applications requiring ample room and multiple line attachments
