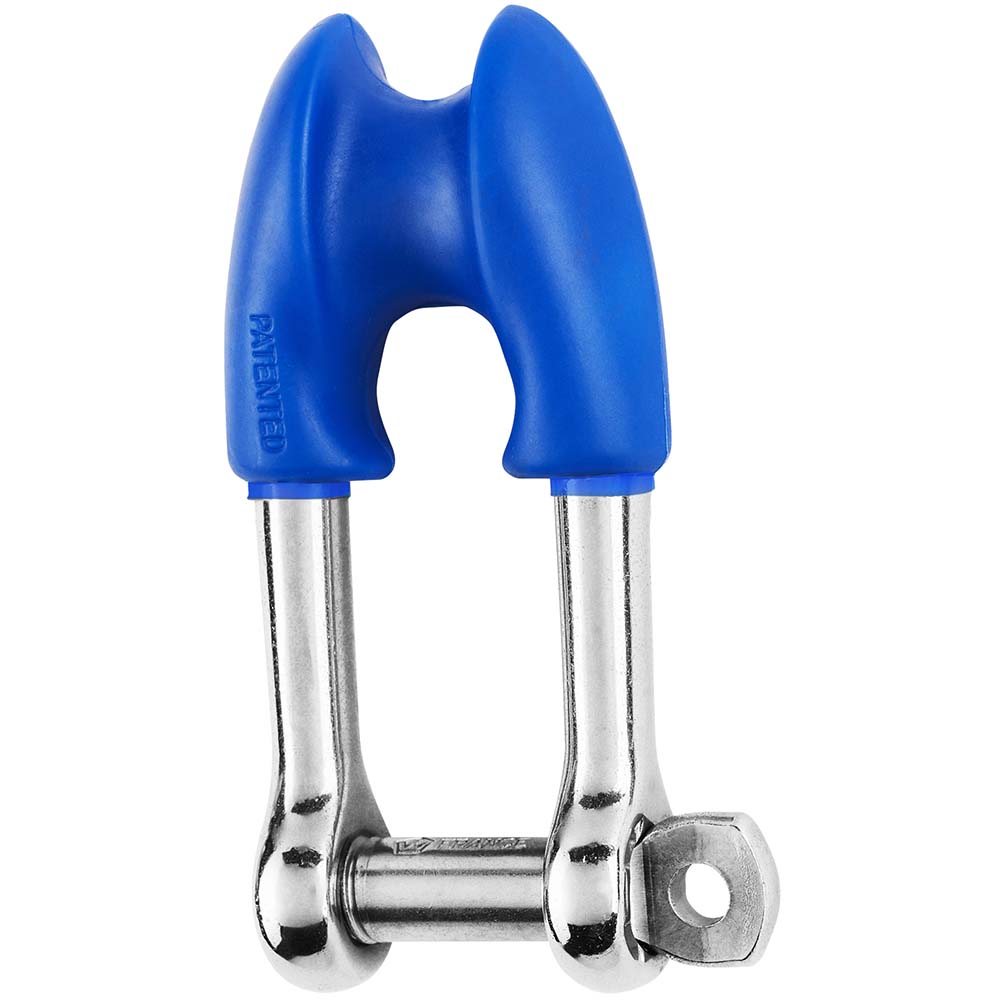

Wichard Marine 1494W Thimble Shackle with Captive Pin - 8mm Diameter, 5/16 Inch

Thimble Shackle - Captive Pin - Diameter 8mm - 5/16"

Features:

• Thimble shackle with captive pin forged in grade 316L stainless steel
• Allows to spliced a rope without adding an additional thimble
• With the captive pin, no risk to lose the pin
• Outstanding working and breaking loads

Applications:

• Mainsheet halyards
• Max rope size: 12mm

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• Breaking load (lb) 6610
• Weight (lb) 0.172

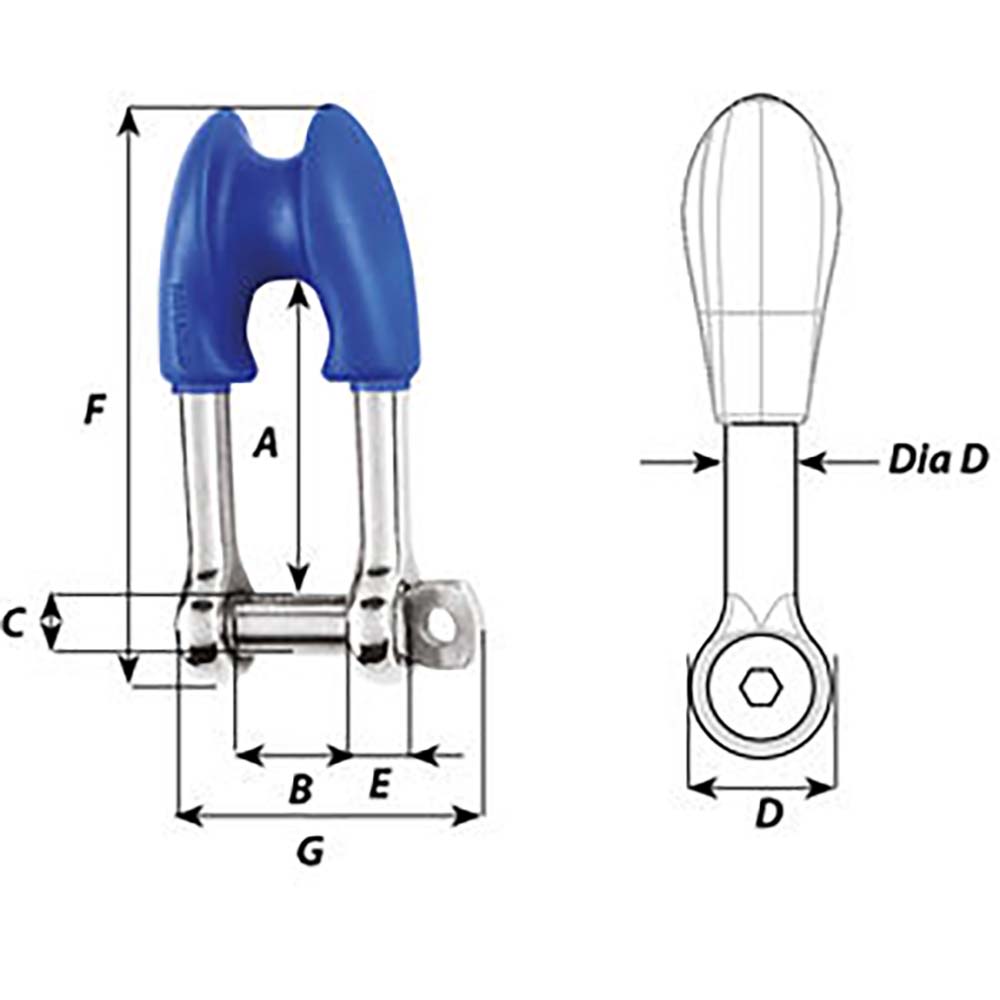

Dimensions (see 2nd image):

• A (inch) 1-39/64"
• B (inch) 5/8"
• C (inch) 5/16"
• D (inch) 5/8"
• D diameter (inch) 5/16"
• E (inch) 9/32"
• F (inch) 2-63/64"
• G (inch) 1-21/32"

The Wichard Marine 1494W Thimble Shackle with Captive Pin is a durable and reliable hardware component designed for demanding maritime applications. Crafted from high-grade 316L stainless steel, this shackle offers exceptional corrosion resistance and strength for long-term use in marine environments. Its innovative captive pin design eliminates the risk of losing the pin during operation, ensuring safety and ease of handling. This shackle allows for splicing a rope directly without the need for an additional thimble, streamlining installation and reducing hardware clutter on boats and sailing rigs. Featuring outstanding working and breaking loads, it supports up to 2,200 pounds of working load and can withstand breaking forces of up to 6,610 pounds, making it suitable for critical rigging tasks such as mainsheet halyards and other load-bearing connections. The compact dimensions and robust construction make it an ideal choice for sailors seeking dependable hardware that combines strength and convenience. Easy to install and maintain, the Wichard Marine 1494W Thimble Shackle is engineered to meet the rigorous demands of maritime use, ensuring safety and performance in every application. Whether used in sailboat rigging or other marine hardware, this shackle provides a secure, corrosion-resistant connection with minimal fuss and maximum confidence.

Features:

• Thimble shackle with captive pin forged in grade 316L stainless steel

• Allows splicing a rope without adding an additional thimble

• Captive pin design prevents loss during operation

• Supports high working and breaking loads for demanding applications
