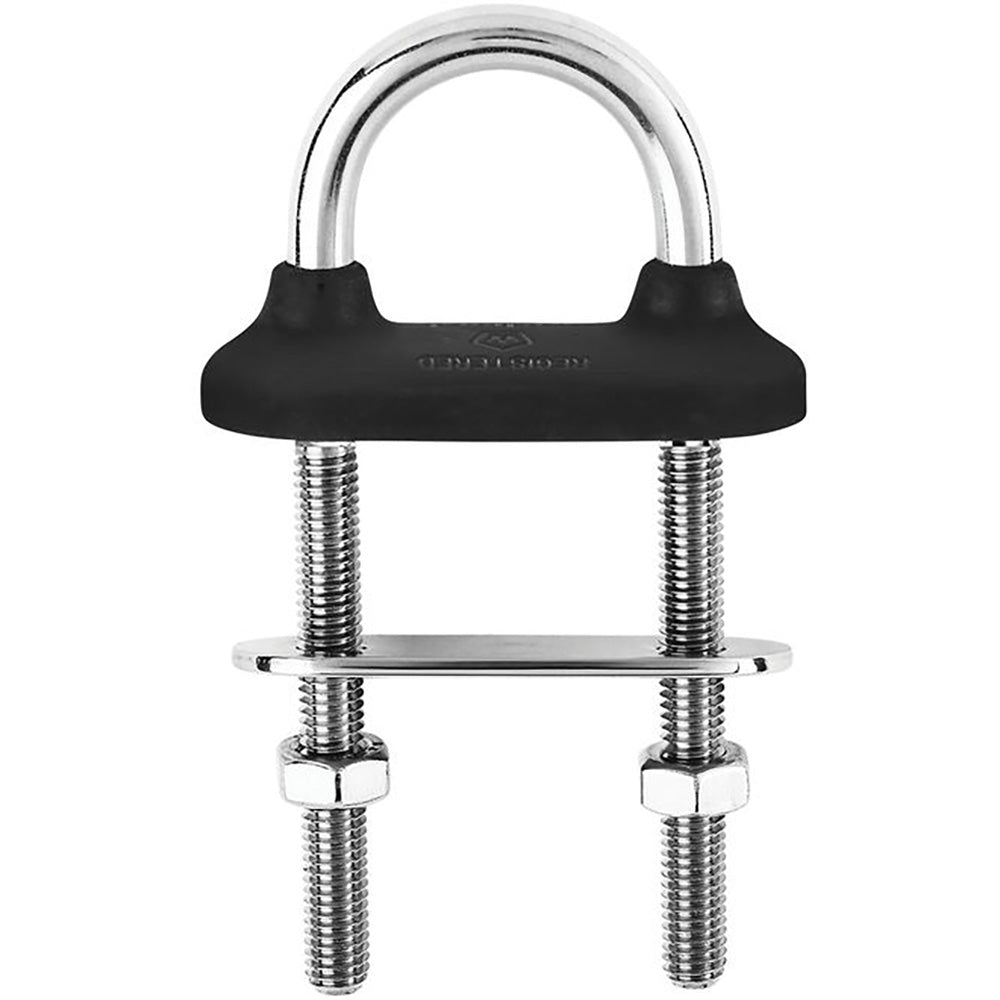

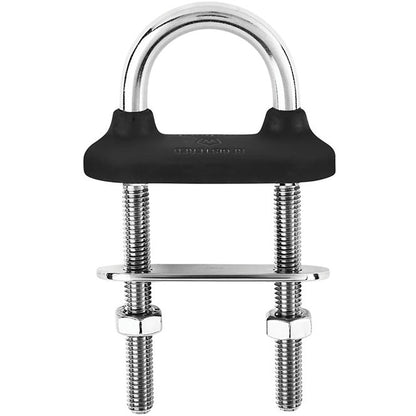

Wichard Marine Black Watertight U-Bolt 10mm Diameter, 4-21/64 Inches Length with Stainless Steel Construction

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"

Features:

• Fully drop-forged product with high-quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 36 nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Color: Black
• Working load: (lb) 7930 / (kg) 3600
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.525 / (g) 238

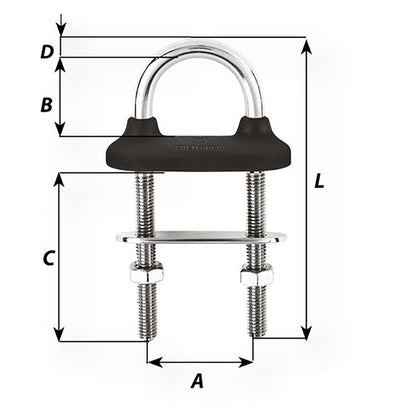

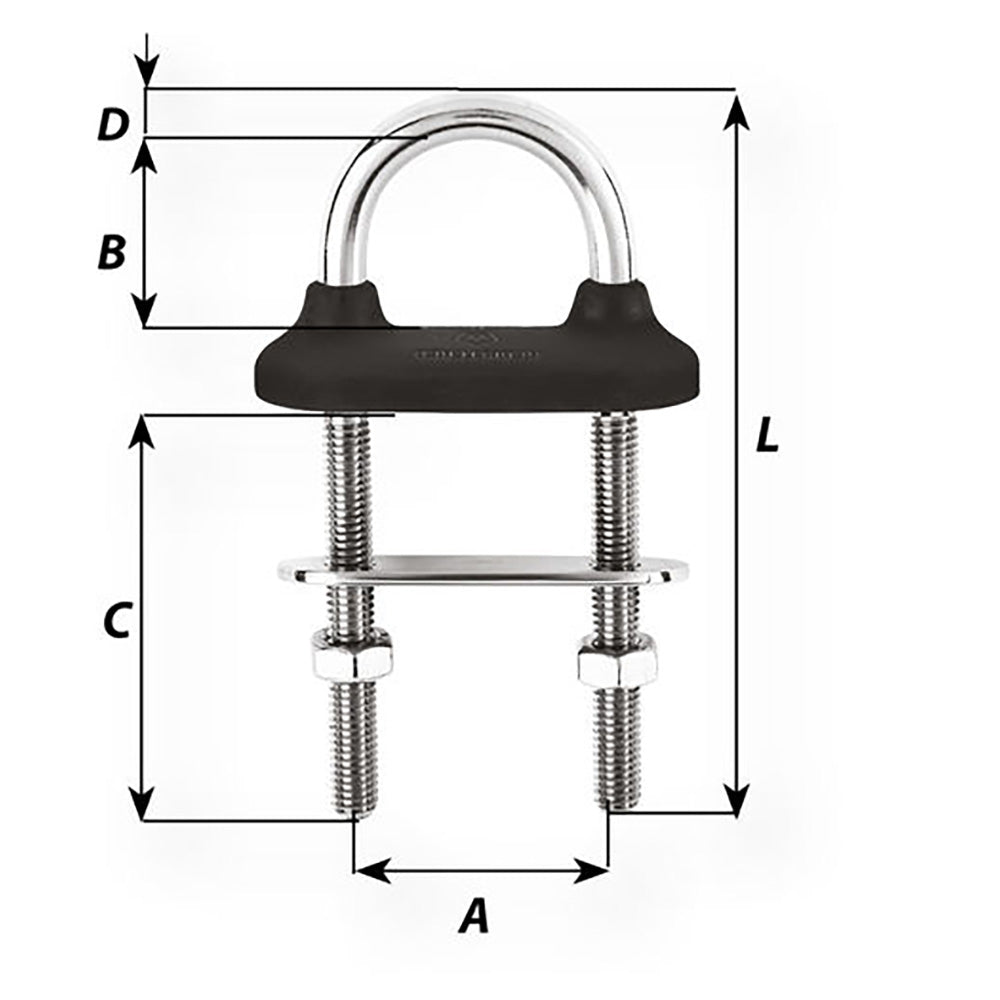

Dimensions:

• Length: (inch) 4 21/64" / (mm) 110
• A: (inch) 1 37/64" / (mm) 40
• B: (inch) 1 1/32" / (mm) 26
• C: (inch) 2 9/16" / (mm) 65
• D diameter: (inch) 25/64" / (mm) 10

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Black Watertight U-Bolt, Part Number 65451W, is a robust fastening solution designed for demanding marine and industrial applications. Crafted from high-quality 316L stainless steel, this fully drop-forged U-bolt offers exceptional strength with a working load limit of 3,600 kg (7,930 lb) and a breaking load of 7,000 kg (15,430 lb). Its corrosion-resistant black finish and water-tight rubber collar ensure secure connections even in harsh environments, making it ideal for securing shrouds, lifelines, and blocks. The U-bolt's design features a 10mm diameter (25/64 inches) and a length of 4-21/64 inches (110 mm), providing versatile fastening capabilities. Installation is straightforward, as the U-bolt is supplied with bolts and a counter-plate, eliminating the need for additional waterproof sealants. The maximum tightening torque is 36 nm, ensuring a tight and secure fit without risking damage to the component. The combination of durable materials and thoughtful design makes this U-bolt suitable for both nautical and industrial applications, where safety and reliability are paramount. Whether used on boats or in industrial settings, the Wichard Marine U-bolt provides dependable performance in demanding environments, backed by its high breaking and working load capacities and water-tight construction. Its compact and sturdy design ensures long-lasting service, making it a valuable component for securing critical equipment and structures in marine and industrial projects.

Features:

• Fully drop-forged stainless steel construction for superior strength and durability

• Outstanding working and breaking loads suitable for heavy-duty applications

• Water-tight rubber collar provides complete waterproof sealing

• Easy to install with included bolts and counter-plate, no additional sealants needed

• Maximum tightening torque of 36 nm ensures a secure fit
