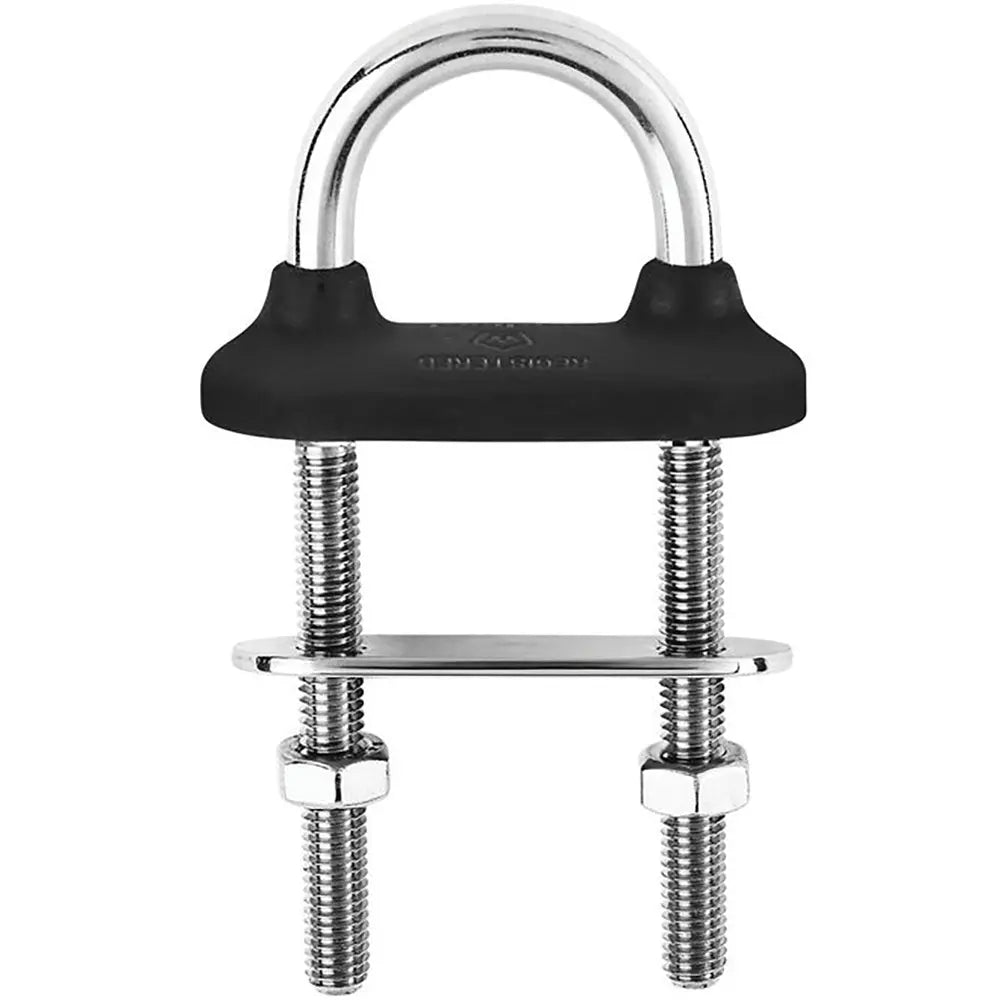

Wichard Marine Black Watertight U-Bolt 10mm Diameter, 90mm Length for Marine and Industrial Use

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"

Features:

• Fully drop-forged product with high-quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 36 nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Color: Black
• Working load: (lb) 7930 / (kg) 3600
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.483 / (g) 219

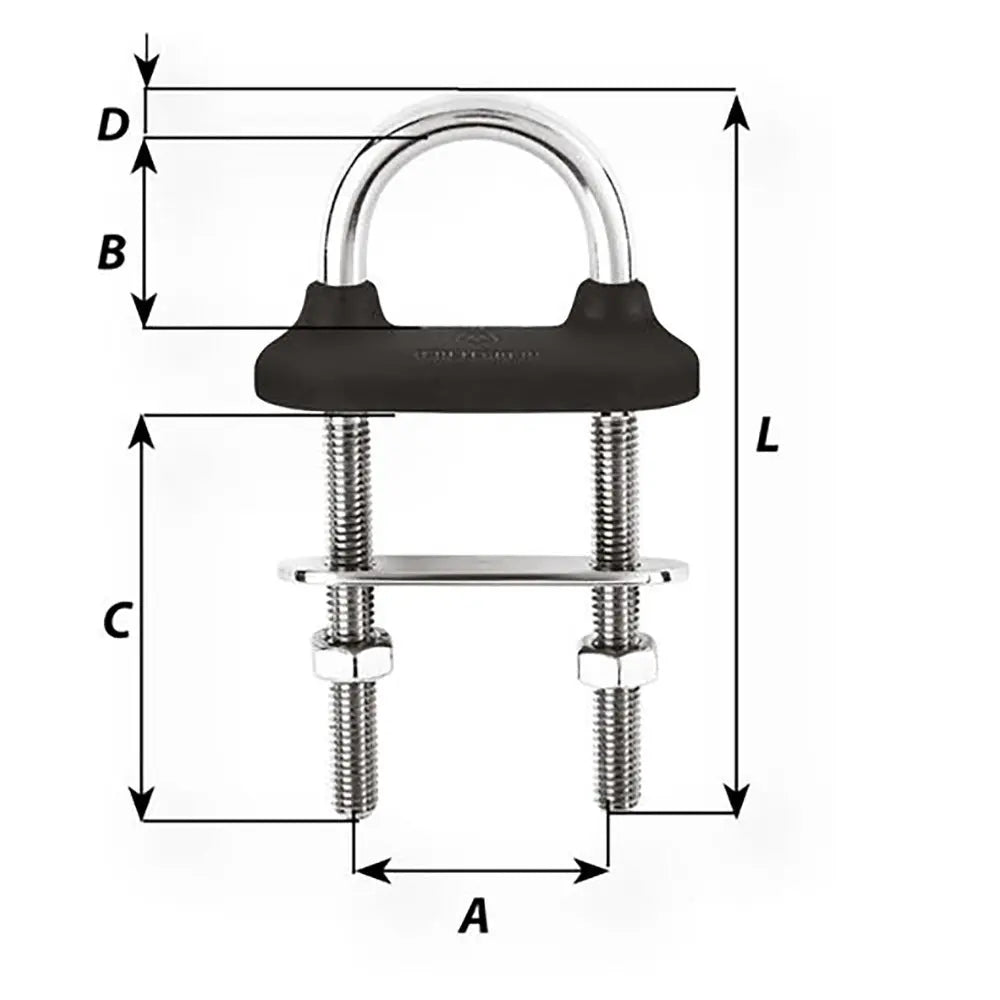

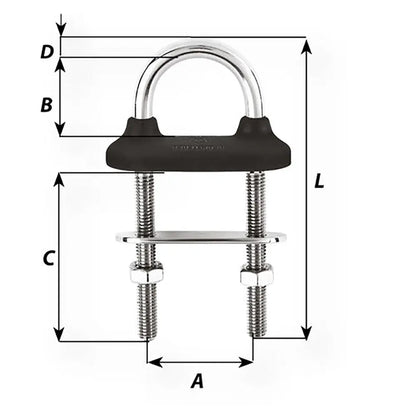

Dimensions:

• Length: (inch) 3 35/64" / (mm) 90
• A: (inch) 1 37/64" / (mm) 40
• B: (inch) 1 1/32" / (mm) 26
• C: (inch) 1 49/64" / (mm) 45
• D diameter: (inch) 25/64" / (mm) 10

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Black Watertight U-Bolt with a 10mm diameter and 90mm length is engineered for demanding marine and industrial applications. Crafted from high-quality 316L stainless steel, this fully drop-forged U-bolt offers exceptional strength and durability. Its outstanding working and breaking loads ensure reliable performance in critical fastening tasks such as securing shrouds, lifelines, and blocks. The black rubber collar provides complete water-tightness, preventing moisture ingress and corrosion, making it suitable for harsh environments. Installation is straightforward, as the U-bolt does not require additional waterproof sealants, and it is supplied with bolts and a counter-plate for ease of use. The maximum tightening torque is 36 nm, ensuring proper fastening without risking damage to the component or the structure it secures. Designed for both nautical and industrial applications, this U-bolt has a working load limit of approximately 3,600 kg (7,930 lbs) and a breaking load of approximately 7,000 kg (15,430 lbs). Its compact dimensions and robust construction make it a versatile choice for various securing needs, providing peace of mind in safety-critical settings. Whether used on boats, ships, or industrial frameworks, the Wichard Marine U-bolt delivers reliable, water-tight fastening with ease of installation and proven strength.

Features:

• Fully drop-forged stainless steel construction for maximum strength and durability

• Outstanding working and breaking loads for reliable performance

• Water-tight rubber collar resists moisture and corrosion

• Easy installation without the need for waterproof sealants

• Supplied with bolts and a durable counter-plate

• Maximum tightening torque of 36 nm for secure fastening
