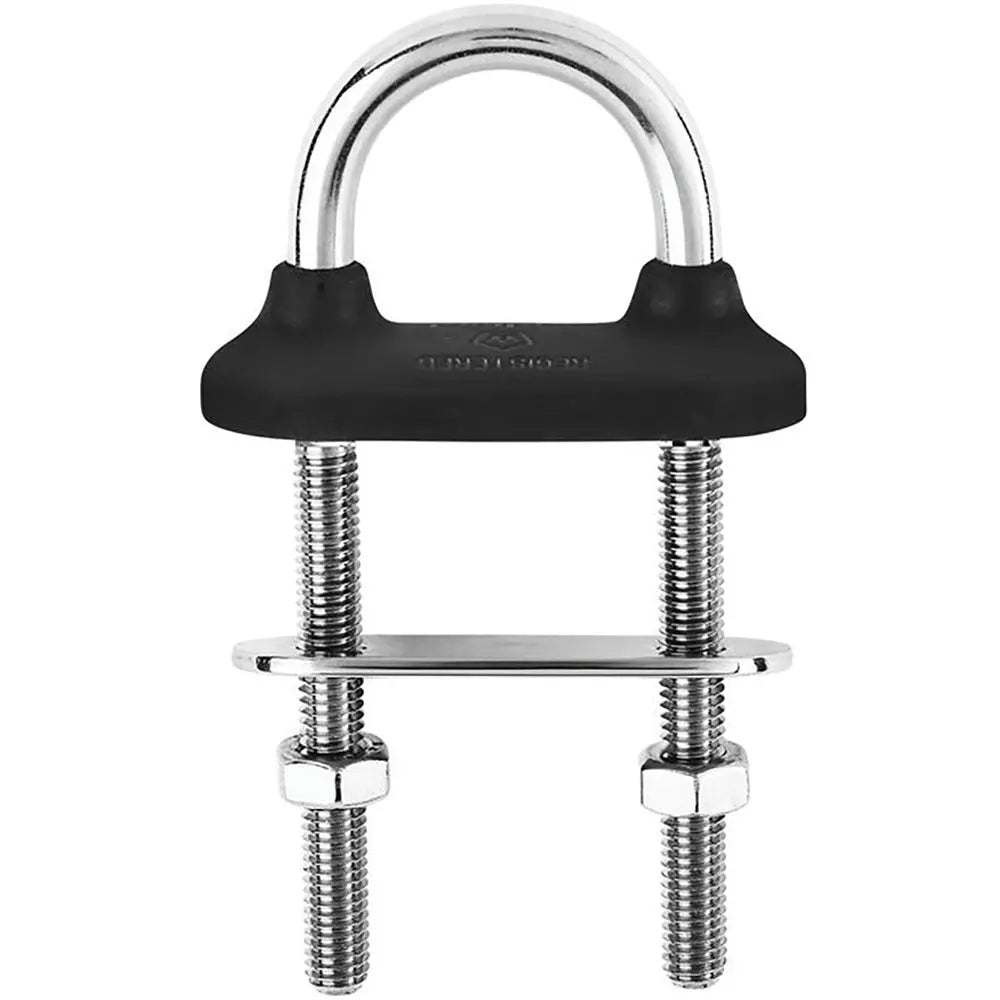

Wichard Marine Black Watertight U-Bolt 12mm Diameter, 15/32 in. Length, 4 21/64 in. - Heavy-Duty Marine Fastening Hardware

Black Watertight U-Bolt - 12mm Diameter - 15/32" - 110mm Length - 4 21/64"

Features:

• Fully dropforged product with high quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 60 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials; 316L stainless steel grade
• Color: Black
• Working load: (lb) 14100 / (kg) 6400
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 0.761 / (g) 345

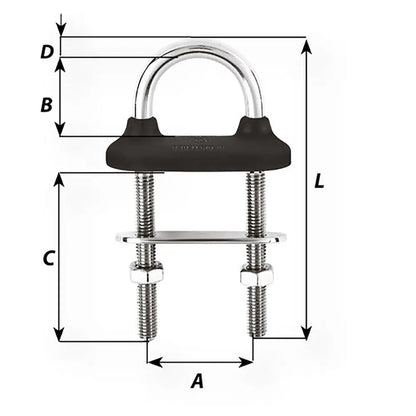

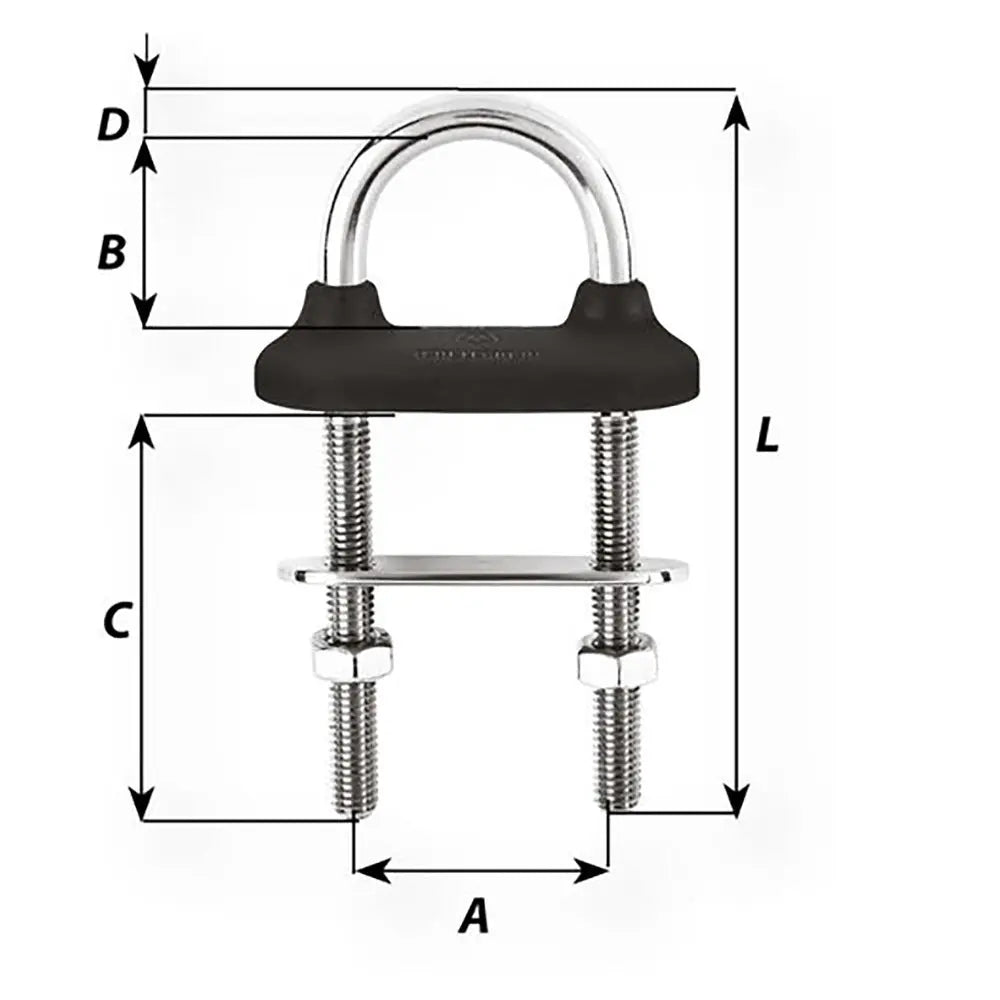

Dimensions:

• Length: (inch) 4 21/64" / (mm) 110
• A: (inch) 1 47/64" / (mm) 44
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 1 31/32" / (mm) 50
• D diameter: (inch) 15/32" / (mm) 12

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Black Watertight U-Bolt, Part Number 65361W, is engineered for demanding marine applications requiring reliable fastening solutions. Crafted from premium 316L stainless steel, this U-bolt offers exceptional corrosion resistance and durability in harsh environments. Its fully drop-forged construction ensures high strength and outstanding working and breaking loads, making it suitable for securing shrouds, lifelines, and blocks on boats and other marine structures. The black rubber collar provides complete water-tightness, preventing water ingress and protecting the integrity of your connections. Installation is straightforward, as the U-bolt can be secured without additional waterproof sealants, and it comes complete with bolts and a counter-plate for convenience. The maximum tightening torque is 60 Nm, ensuring secure fastening without over-tightening that could compromise the integrity of the hardware. Designed for both nautical and industrial applications, the U-bolt's high working load capacity of approximately 14,100 pounds (6,400 kg) and breaking load of around 22,040 pounds (10,000 kg) make it suitable for a wide range of heavy-duty fastening tasks. Its dimensions are optimized for versatile use, with a length of 4 21/64 inches (110 mm), a diameter of 15/32 inches (12 mm), and other detailed measurements that ensure compatibility with various fittings. The black finish not only enhances its corrosion resistance but also provides a sleek, professional appearance. Whether used for marine rigging or industrial anchoring, the Wichard Marine U-bolt delivers dependable performance, safety, and ease of installation in demanding environments. This hardware is sold individually to meet specific project needs and ensures a high standard of quality and reliability in every application.

Features:

• Fully dropforged high-quality stainless steel construction for strength and durability

• Outstanding working and breaking loads suitable for heavy-duty applications

• Complete water-tightness provided by a resistant black rubber collar

• Easy installation without the need for waterproof sealants

• Includes bolts and a counter-plate for quick setup

• Maximum tightening torque of 60 Nm ensures secure fastening
