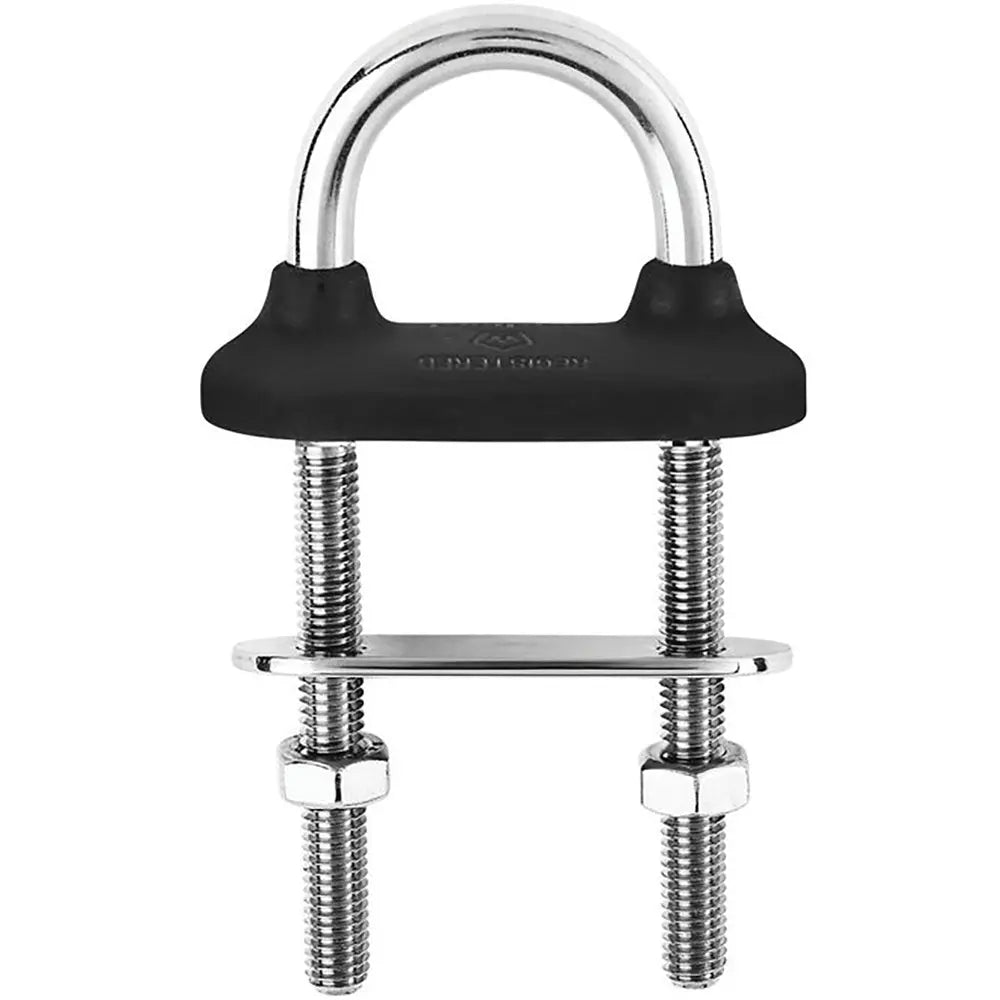

Wichard Marine Black Watertight U-Bolt 6mm Diameter, 15/64 Inch - 70mm Length for Secure Marine Fastening

Black Watertight U-Bolt - 6mm Diameter - 15/64" - 70mm Length - 2-3/4"

Features:

• Fully drop-forged product with high-quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 7.5 nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks

Specifications:

• Materials: 316L stainless steel grade
• Color: Black
• Working load: (lb) 2820 / (kg) 1280
• Breaking load: (lb) 6610 / (kg) 3000
• Weight: (lb) 0.132 / (g) 60

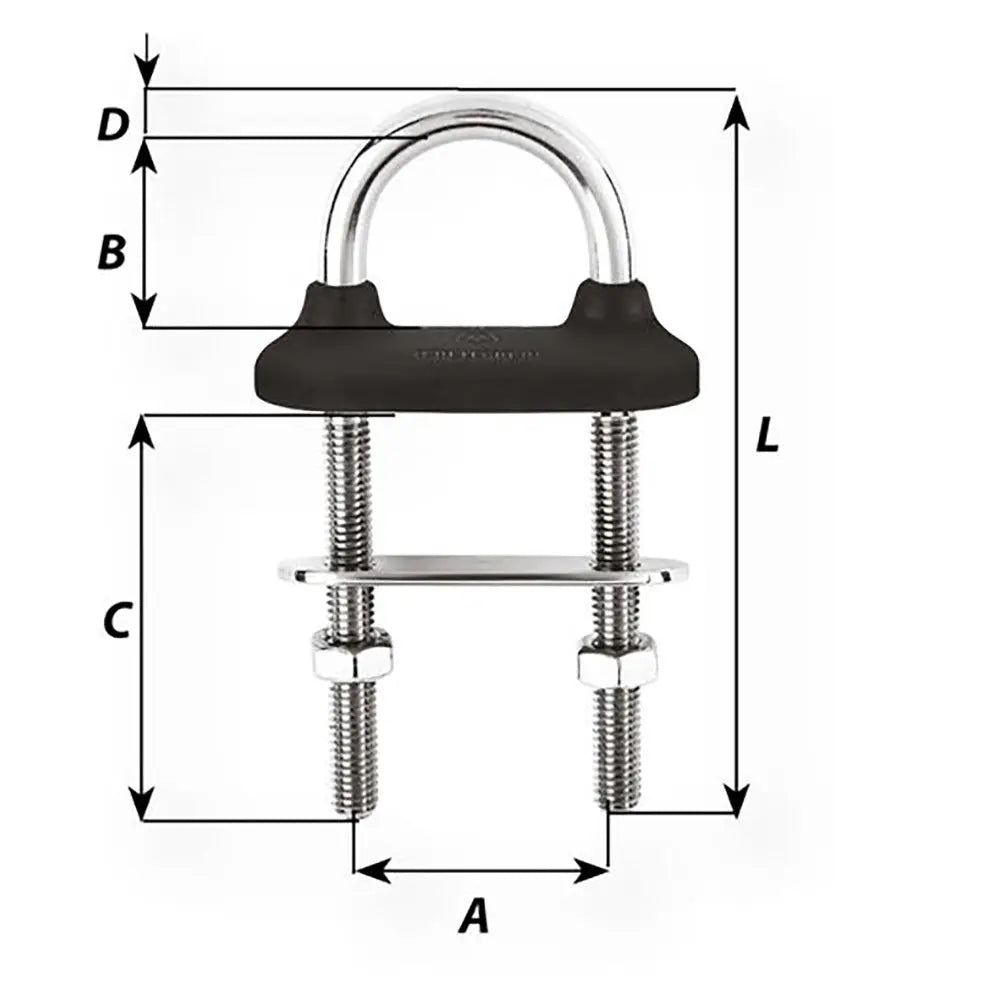

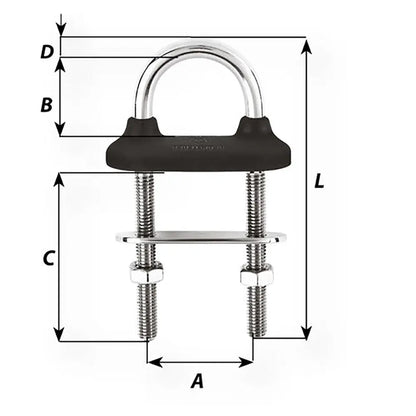

Dimensions:

• Length: (inch) 2 3/4" / (mm) 70
• A: (inch) 1 17/64" / (mm) 32
• B: (inch) 15/16" / (mm) 24
• C: (inch) 1 3/8" / (mm) 35
• D diameter: (inch) 15/64" / (mm) 6

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Black Watertight U-Bolt with part number 65331W is designed for reliable and corrosion-resistant fastening in marine environments. Crafted from high-quality 316L stainless steel, this fully drop-forged U-bolt offers exceptional strength with outstanding working and breaking loads, making it suitable for demanding nautical applications. The black finish not only provides an aesthetic appeal but also enhances resistance against water and corrosion. The U-bolt features a resistant rubber collar that ensures complete water-tightness, preventing leaks and safeguarding your equipment from moisture damage. Installation is straightforward, as no waterproof sealant is required, and the bolt is delivered complete with bolts and a counter-plate for ease of use.

Features:

• Fully drop-forged construction with high-quality 316L stainless steel for durability and strength

• Outstanding working load capacity of 2,820 pounds and breaking load of 6,610 pounds for secure fastening

• Water-tight design with a resistant rubber collar to prevent water ingress

• Easy to install without the need for waterproof sealants, saving time and effort

• Supplied with bolts and a counter-plate for quick and secure mounting

• Maximum tightening torque of 7.5 Nm ensures proper installation without over-tightening
