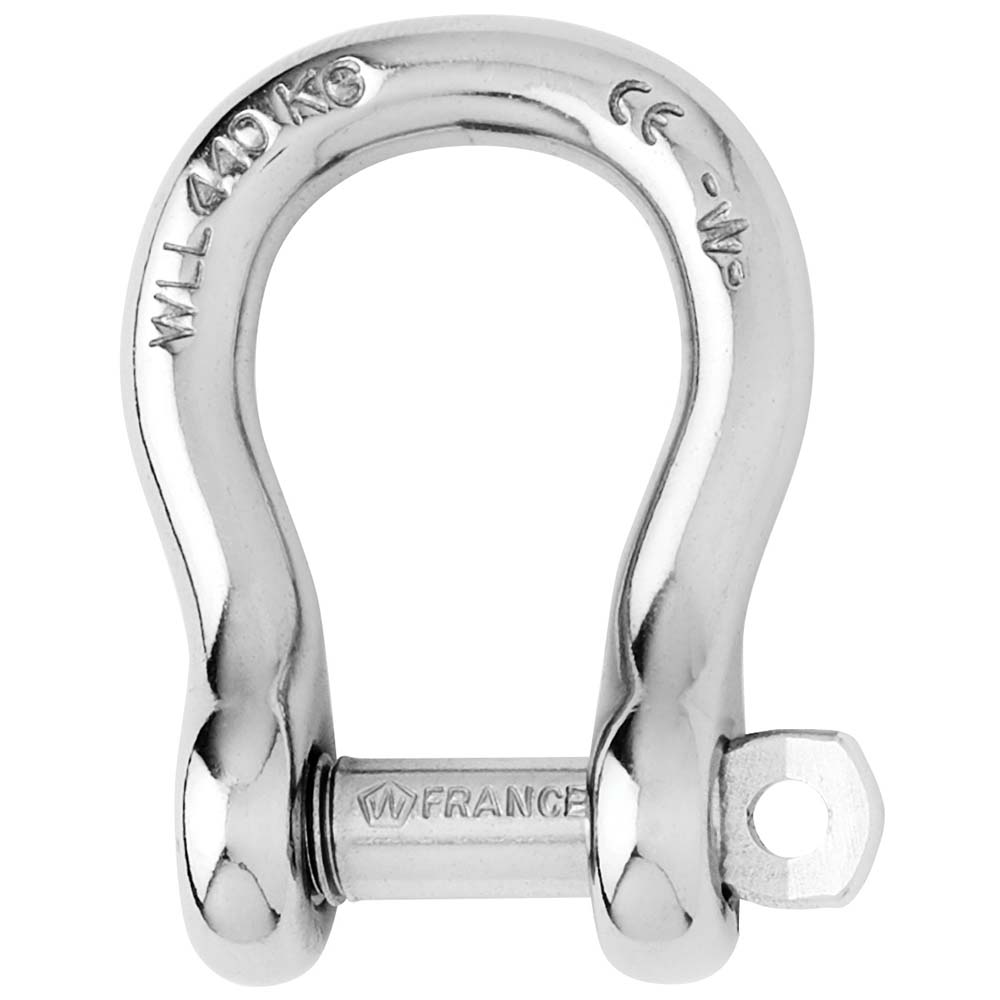

Wichard Marine Captive Pin Bow Shackle 10mm - 13/32 Inch Diameter

Captive Pin Bow Shackle - Diameter 10mm - 13/32"

Riggers have turned to Wichard shackles for their legendary quality, beautiful polish and smooth contours.

Drop-forged 316L stainless steel construction is a perfect blend of strength and corrosion resistance and ensures that shape remains intact at loads that meet or exceed the deformation point. These bow shackles are ideal for applications that involve loads from multiple directions.

At the thumb screw end, the elasticity of the shackles body locks the pins position into one or other of its small indentations. There is no need to worry about it accidentally coming loose due to vibrations. The pin is captive to prevent accidental loss.

Features:

• Captive pin bow shackle
• Outstanding working and breaking loads
• Single handed operation for more safety
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Technical Specifications:

• Material - 316 stainless steel grade
• Working load - 3430 (lbs)
• WLL - 2290 (lbs)
• Breaking load - 11460 (lbs)
• Weight - 0.306 (lbs)

*Sold as an Individual

The Wichard Marine Part Number 1445W captive pin bow shackle is designed for demanding industrial applications where strength, safety, and durability are paramount. Crafted from drop-forged 316L stainless steel, this shackle offers an optimal combination of corrosion resistance and high load capacity, making it suitable for harsh marine environments and heavy-duty lifting tasks. Its smooth contours and polished finish reflect Wichard’s commitment to quality and craftsmanship, ensuring a reliable performance over time. The shackle features a captive pin that prevents accidental loss and a thumb screw end with elastic locking to secure the pin in place, even in vibratory conditions. This design allows for single-handed operation, enhancing safety and efficiency during use.

Features:

• Captive pin bow shackle for secure attachment and easy handling

• Outstanding working and breaking loads for demanding applications

• Single-handed operation for increased safety and convenience

• Designed for industrial lifting and rigging applications

• CE marked with batch number for quality assurance
