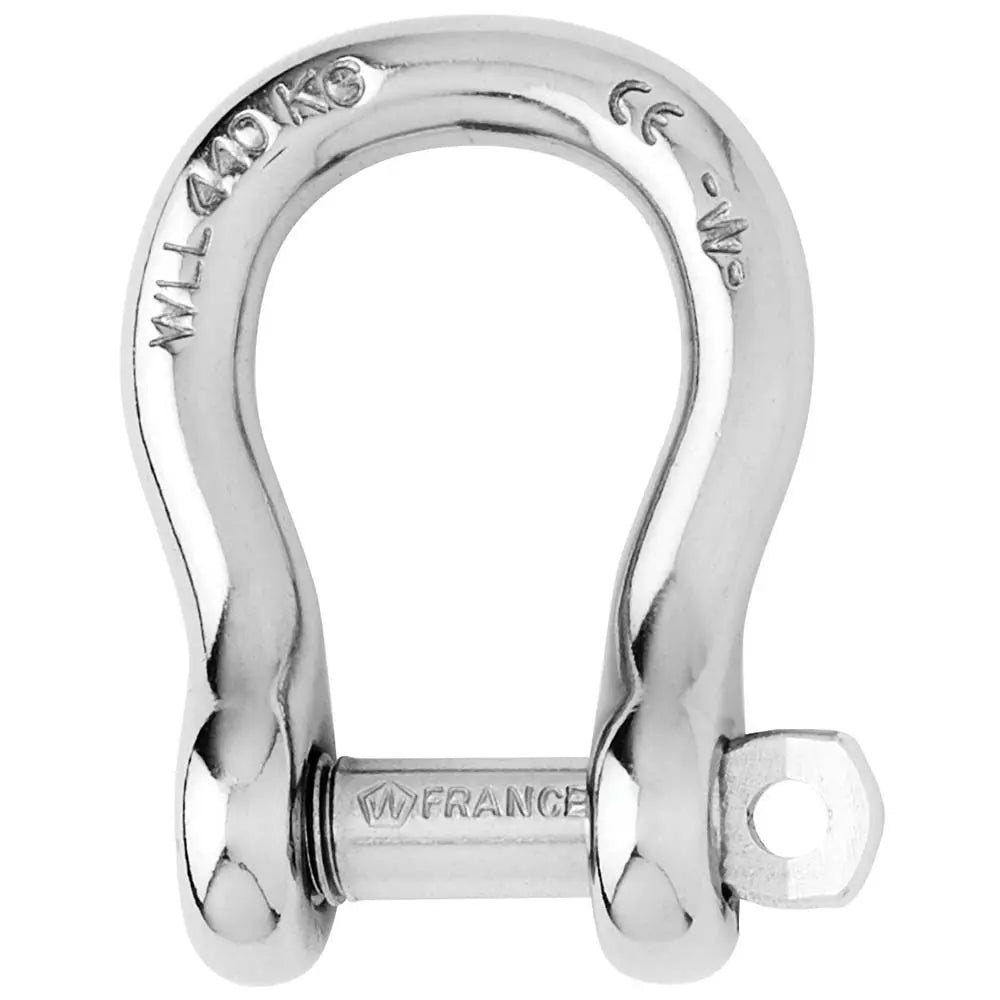

Wichard Marine Captive Pin Bow Shackle 4mm (5/32 inch) Diameter

Captive Pin Bow Shackle - Diameter 4mm - 5/32"

Features:

• Captive pin bow shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single-handed operation for more safety
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 700
• WLL (lb) 440
• Breaking load (lb) 2200
• Weight (lb) 0.022

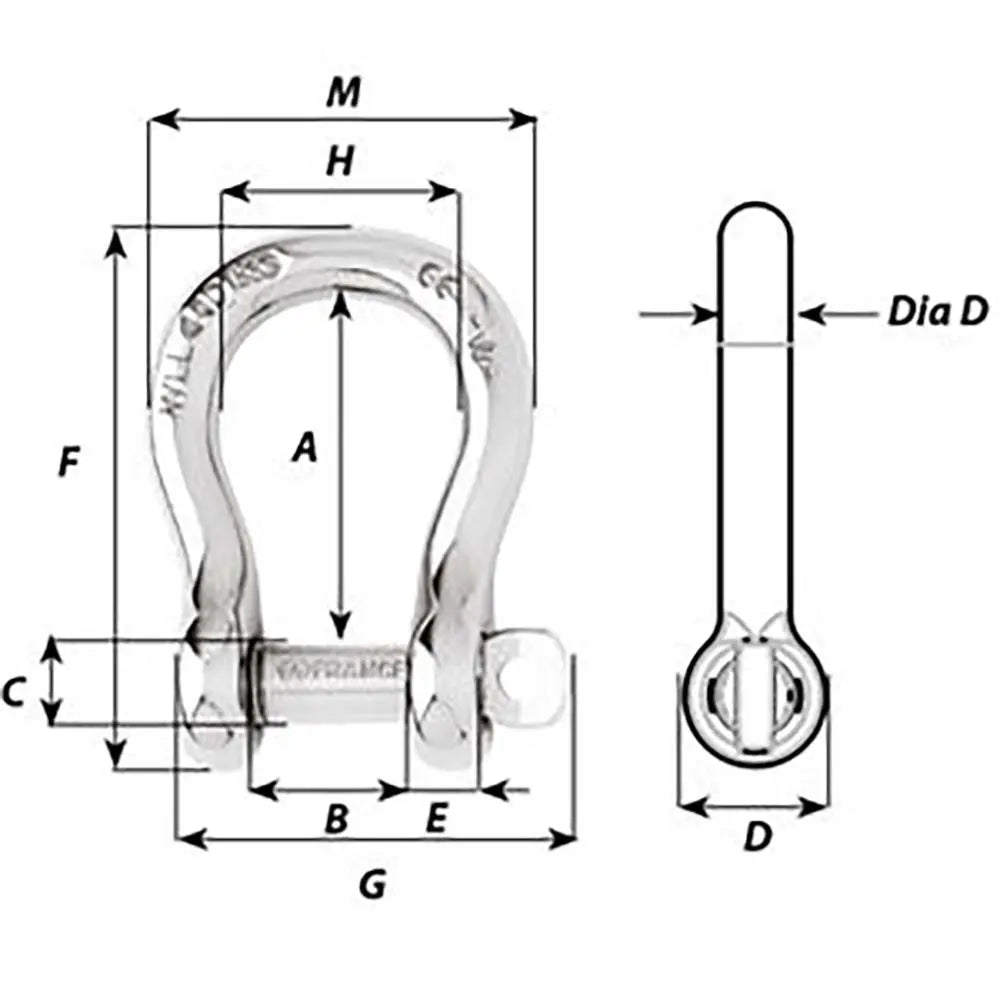

Dimensions (see 2nd image):

• A (inch) 45/64"
• B (inch) 5/16"
• C (inch) 13/64"
• D (inch) 23/64"
• D diameter (inch) 5/32"
• E (inch) 5/32"
• M (inch) 53/64"

The Wichard Marine Captive Pin Bow Shackle, part number 1441W, is designed for demanding industrial applications requiring reliable and secure connections. Crafted from high-grade 316L stainless steel, this shackle offers exceptional strength and corrosion resistance, making it suitable for marine and heavy-duty lifting tasks. Its 4mm (5/32 inch) diameter pin remains connected to the body at all times, even when opened, ensuring safety and ease of use. The pin locks into one of the indentations, preventing accidental loosening due to vibrations, which is critical in dynamic environments. This shackle features outstanding working and breaking loads, with a working load limit of 440 pounds and a breaking load of 2200 pounds, providing a robust solution for various rigging needs. Its design allows for single-handed operation, enhancing safety and efficiency during installation or removal. With CE marking and batch number for quality assurance, this shackle is ideal when ample room is available for multiple lines or cables. Its versatile application makes it suitable for attaching several lines or cables simultaneously, providing a flexible connection point. The Wichard Marine Captive Pin Bow Shackle combines durability, safety, and ease of use in a compact form, making it a dependable choice for industrial lifting, marine rigging, and other heavy-duty tasks. Its lightweight construction, weighing only around 0.8 ounces, ensures minimal added weight without sacrificing strength or security, making it an essential component in demanding environments.

Features:

• Captive pin design with pin always attached to the body for safety and convenience

• Forged in grade 316L stainless steel for corrosion resistance and strength

• Pin locks into indentations to prevent loosening from vibrations

• Outstanding working and breaking loads suitable for industrial lifting applications

• Single-handed operation for ease of use and safety

• CE marking and batch number for quality assurance
