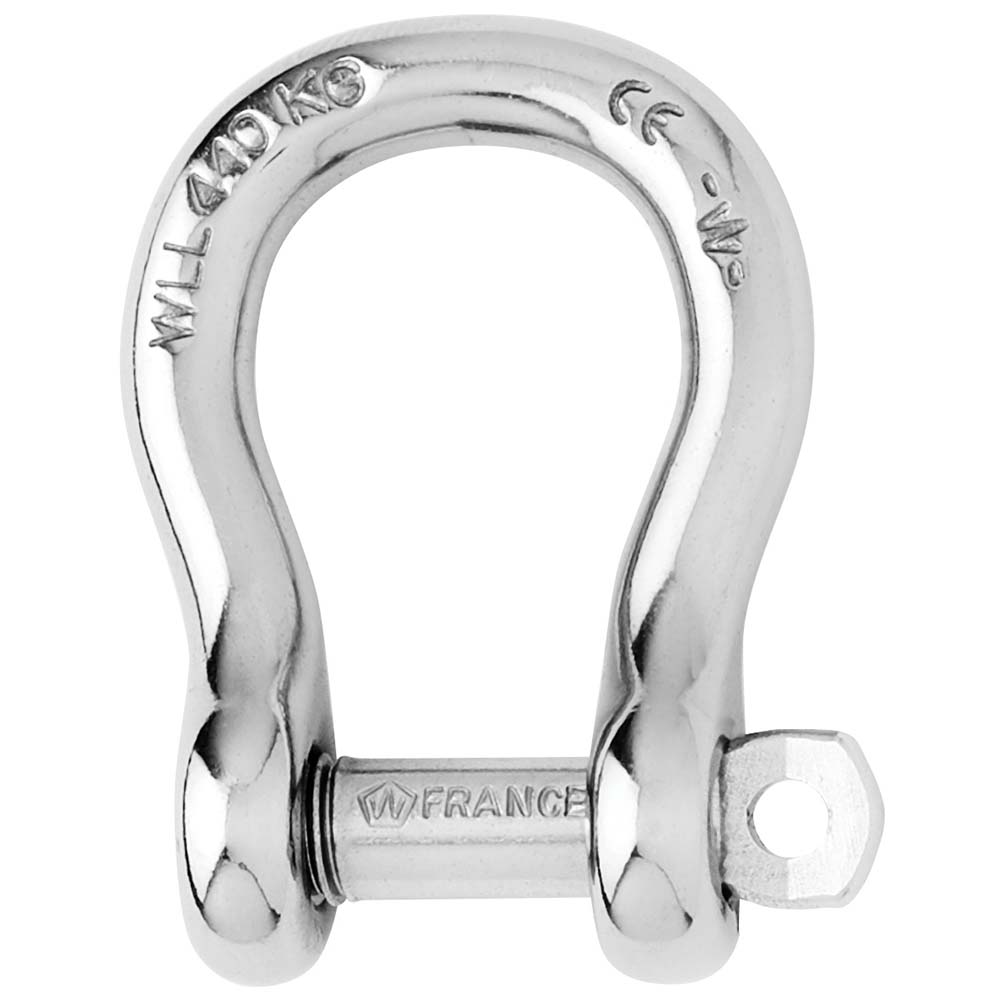

Wichard Marine Captive Pin Bow Shackle 5mm (3/16 inch) Diameter - Grade 316L Stainless Steel

Captive Pin Bow Shackle - Diameter 5mm - 3/16"

Features:

• Captive pin bow shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single handed operation for more safety
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1050
• WLL (lb) 660
• Breaking load (lb) 3300
• Weight (lb) 0.042

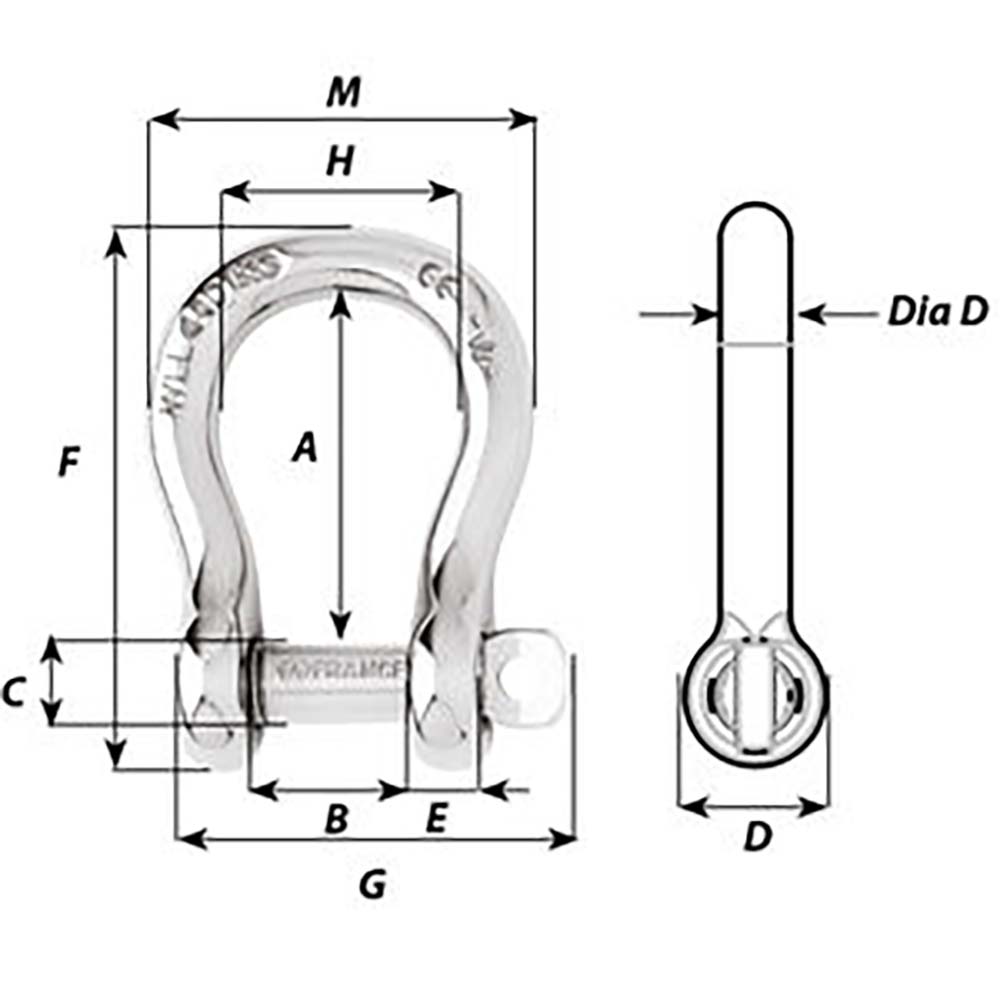

Dimensions (see 2nd image):

• A (inch) 29/32"
• B (inch) 25/64"
• C (inch) 15/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 13/64"
• M (inch) 1-1/32"

The Wichard Marine Captive Pin Bow Shackle, part number 1442W, is crafted from durable grade 316L stainless steel, making it ideal for demanding industrial lifting applications. The 5mm (3/16 inch) diameter shackle features a forged construction that ensures high strength and corrosion resistance, suitable for challenging environments. Its innovative design keeps the pin connected to the body at all times, even when opened, reducing the risk of loss during operation. The pin locks securely into one of the designated indentations, preventing loosening caused by vibrations or dynamic loads. This feature enhances safety during critical lifting or rigging tasks, allowing for single-handed operation, which simplifies handling and improves operational efficiency. The shackle's outstanding working load limit of 1,050 lbs and breaking load of 3,300 lbs make it suitable for heavy-duty industrial use. It is CE marked and batch numbered, complying with relevant safety standards. The shackle is ideal when ample room is necessary to attach multiple lines or cables, providing versatility for various rigging arrangements. Its compact yet robust design makes it a practical choice for marine, industrial, and heavy lifting applications where reliability and safety are paramount. The shackle's dimensions are optimized for ease of use and secure attachment, ensuring consistent performance in demanding environments. Whether used in lifting, rigging, or securing heavy loads, the Wichard Marine Captive Pin Bow Shackle offers a reliable and secure solution that meets rigorous industry standards.

Features:

• Captive pin forged in grade 316L stainless steel for durability and corrosion resistance

• Pin remains connected to the body at all times, even when opened

• Pin locks securely into indentations to prevent loosening from vibrations

• Designed for high working and breaking loads, suitable for industrial lifting

• Single-handed operation enhances safety and ease of use

• CE marked with batch number for compliance and traceability
