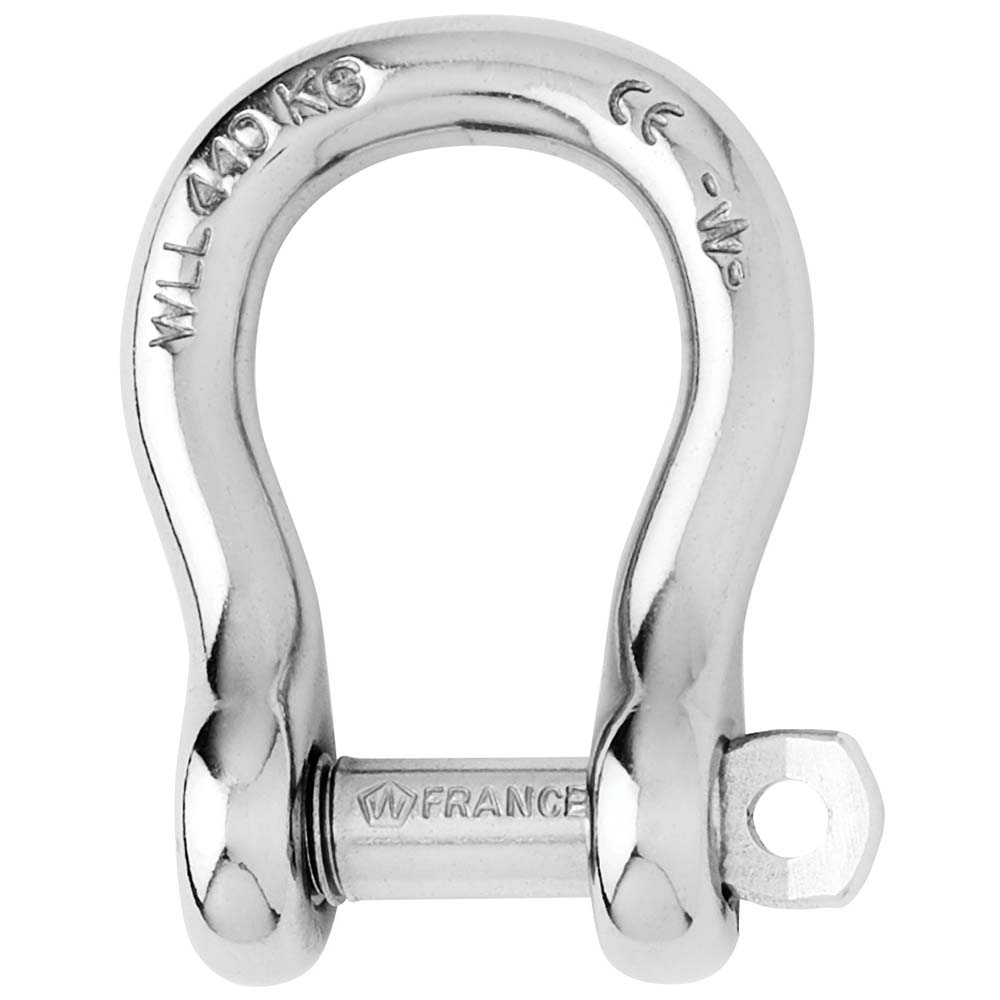

Wichard Marine Captive Pin Bow Shackle 6mm (1/4 inch) - Grade 316L Stainless Steel

Captive Pin Bow Shackle - Diameter 6mm - 1/4"

Features:

• Captive pin bow shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single handed operation for more safety
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1320
• WLL (lb) 970
• Breaking load (lb) 4850
• Weight (lb) 0.073

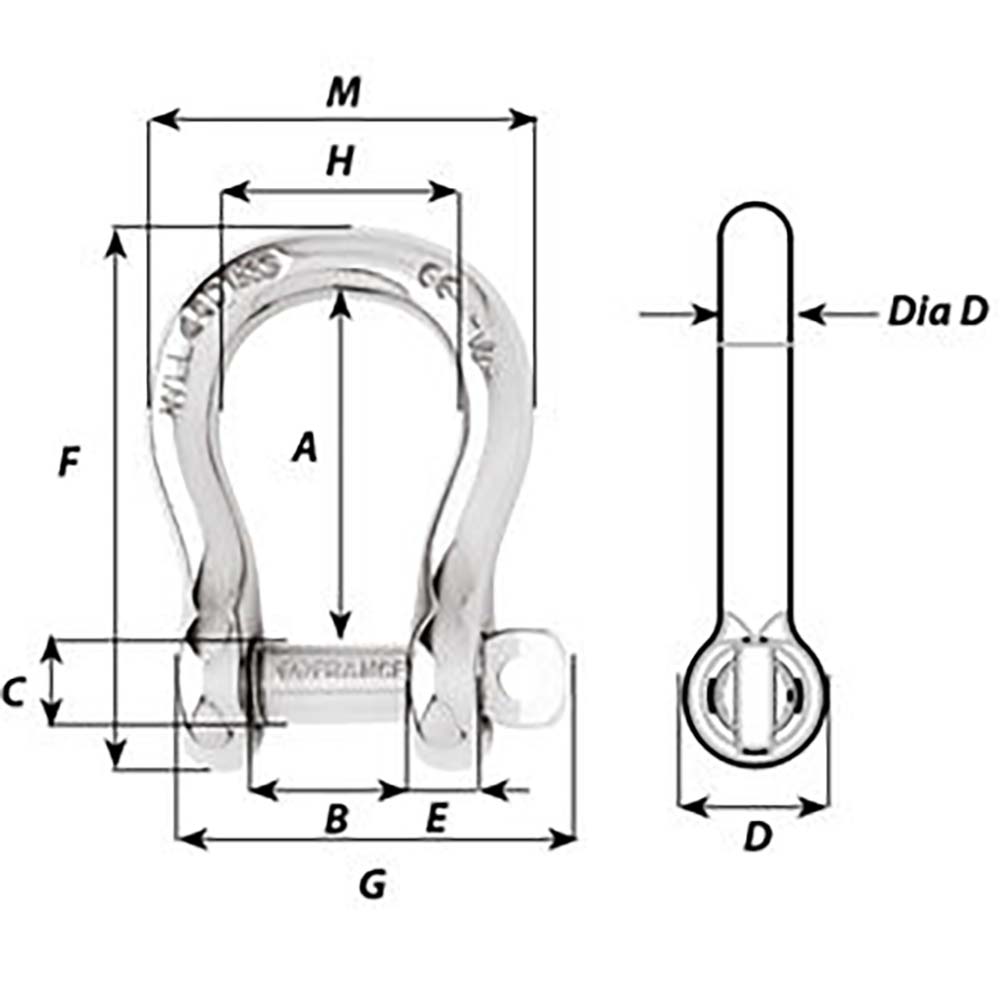

Dimensions (see 2nd image):

• A (inch) 1-1/16"
• B (inch) 15/32"
• C (inch) 9/32"
• D (inch) 35/64"
• D diameter (inch) 15/64"
• E (inch) 15/64"
• M (inch) 1-7/32"

The Wichard Marine Captive Pin Bow Shackle, part number 1443W, is designed for demanding industrial lifting applications where strength and reliability are essential. Crafted from high-grade 316L stainless steel, this shackle features a 6mm (1/4 inch) diameter and offers outstanding durability and corrosion resistance. Its unique design ensures the pin remains connected to the body at all times, even when open, reducing the risk of losing components during operation. The pin locks into one of the indentations, providing a secure fit resistant to loosening caused by vibrations, ensuring safety during heavy-duty tasks. With a working load limit of 1,320 pounds and a breaking load of 4,850 pounds, this shackle is suitable for applications requiring ample room and the ability to attach multiple lines or cables. It is engineered for single-handed operation, offering convenience and safety for users handling heavy loads. Certified with CE markings and batch numbers, the Wichard Marine Captive Pin Bow Shackle guarantees quality and compliance for industrial use. Its compact design makes it ideal for rigs, lifting setups, and marine environments where space is at a premium. The shackle’s lightweight construction, at approximately 0.73 pounds, ensures ease of handling without sacrificing strength. Suitable for various industrial lifting and rigging applications, this shackle provides a reliable connection point with a robust working capacity. Its corrosion-resistant stainless steel material ensures longevity in harsh environments, making it an excellent choice for marine, construction, and heavy equipment operations.

Features:

• Captive pin design forged in grade 316L stainless steel for durability and corrosion resistance

• Pin remains connected to the body at all times, even when opened, preventing loss

• Secure locking into one of the indentations to prevent loosening due to vibrations

• High working and breaking loads suitable for industrial applications

• Single-handed operation for enhanced safety and ease of use

• CE marked with batch number for quality assurance

• Ideal for applications requiring ample room and multi-line attachment
