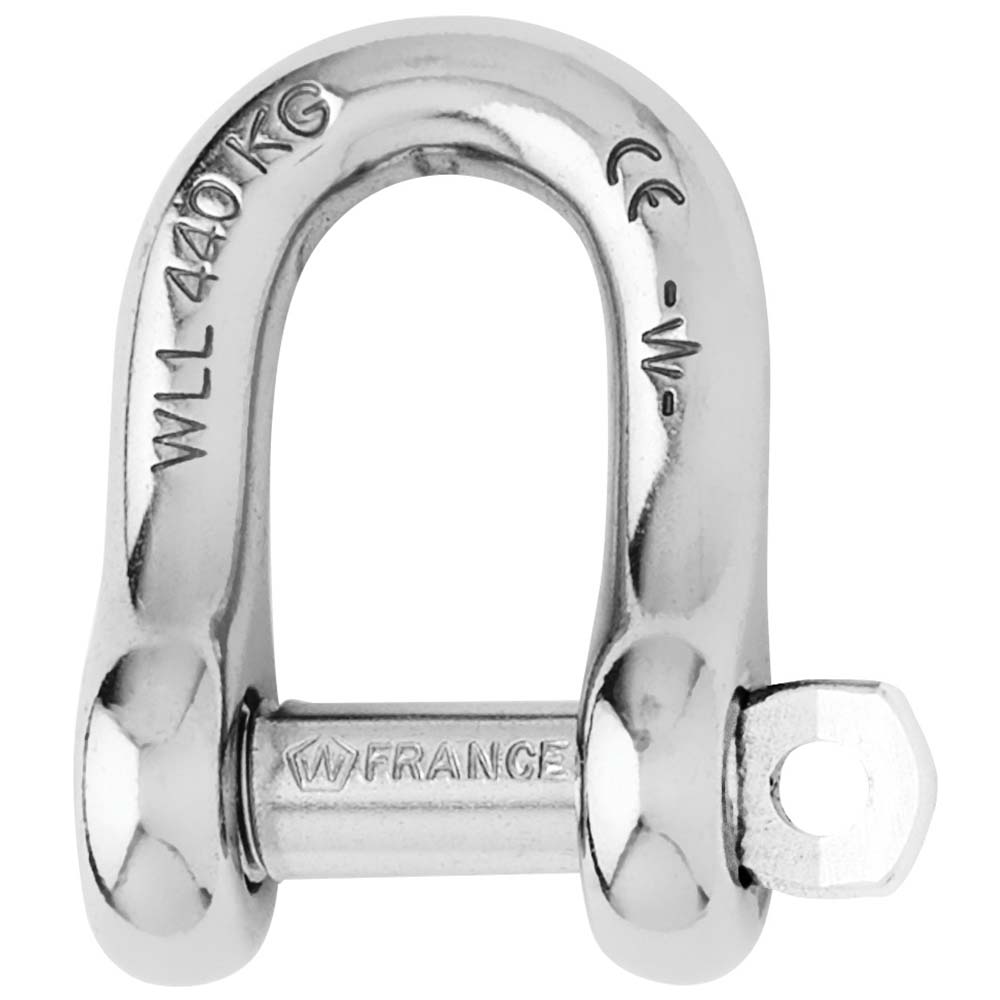

Wichard Marine Captive Pin D Shackle 10mm Diameter – Grade 316L Stainless Steel

Captive Pin D Shackle - Diameter 10mm - 13/32"

Features:

• Captive pin "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 3350
• WLL (lb) 2290
• Breaking load (lb) 11460
• Weight (lb) 0.251

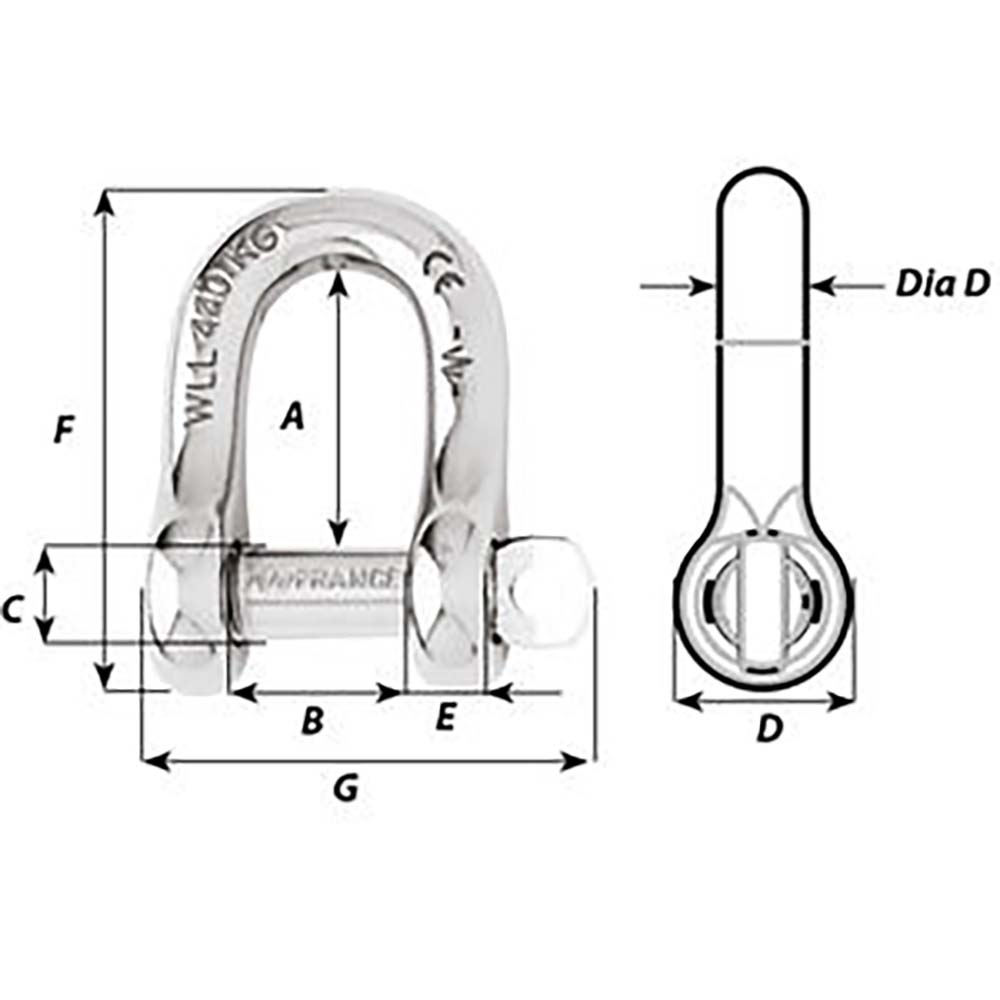

Dimensions (see 2nd image):

• A (inch) 1-19/64"
• B (inch) 25/32"
• C (inch) 7/16"
• D (inch) 53/64"
• D diameter (inch) 25/64"
• E (inch) 23/64"
• F (inch) 2-9/32"
• G (inch) 2-3/32"

The Wichard Marine Captive Pin D Shackle with a 10mm (13/32 inch) diameter offers a robust and reliable lifting and securing solution crafted from high-quality grade 316L stainless steel. Designed for demanding applications, this shackle features a unique captive pin that remains connected to the body at all times, even when opened, ensuring ease of use and safety during operations. The pin locks securely into one of the internal indentations, eliminating the risk of loosening due to vibrations or dynamic loads, making it ideal for marine, industrial, and heavy-duty applications. Its outstanding working and breaking loads provide a significant safety margin, supporting loads up to 3,350 pounds and withstanding breaking forces up to 11,460 pounds. This durability guarantees dependable performance in critical lifting and attachment tasks. The shackle’s compact dimensions and engineered design make it suitable for various standard applications, including attachment points for blocks, heads, and other rigging components. Precision forged from corrosion-resistant stainless steel, it ensures longevity and resistance to harsh environmental conditions. Whether used in maritime environments or industrial settings, the Wichard Marine Captive Pin D Shackle combines safety, reliability, and strength in a compact, easy-to-use form. Its lightweight design, weighing just over a quarter pound, enhances handling and installation, making it an essential component for professionals requiring high-performance rigging hardware. The product's dimensions are optimized for versatility and compatibility with a wide range of fittings and accessories, providing a comprehensive solution for demanding lifting and securing needs. Trust in Wichard Marine’s reputation for quality and craftsmanship to deliver a shackle that meets your safety standards and operational requirements.

Features:

• Captive pin 'D' shackle forged in grade 316L stainless steel

• The pin remains connected to the body at all times, even when opened

• Pin locks securely into an indentation to prevent loosening

• Designed to resist loosening from vibrations and dynamic forces

• Supports outstanding working and breaking loads for safety and durability
