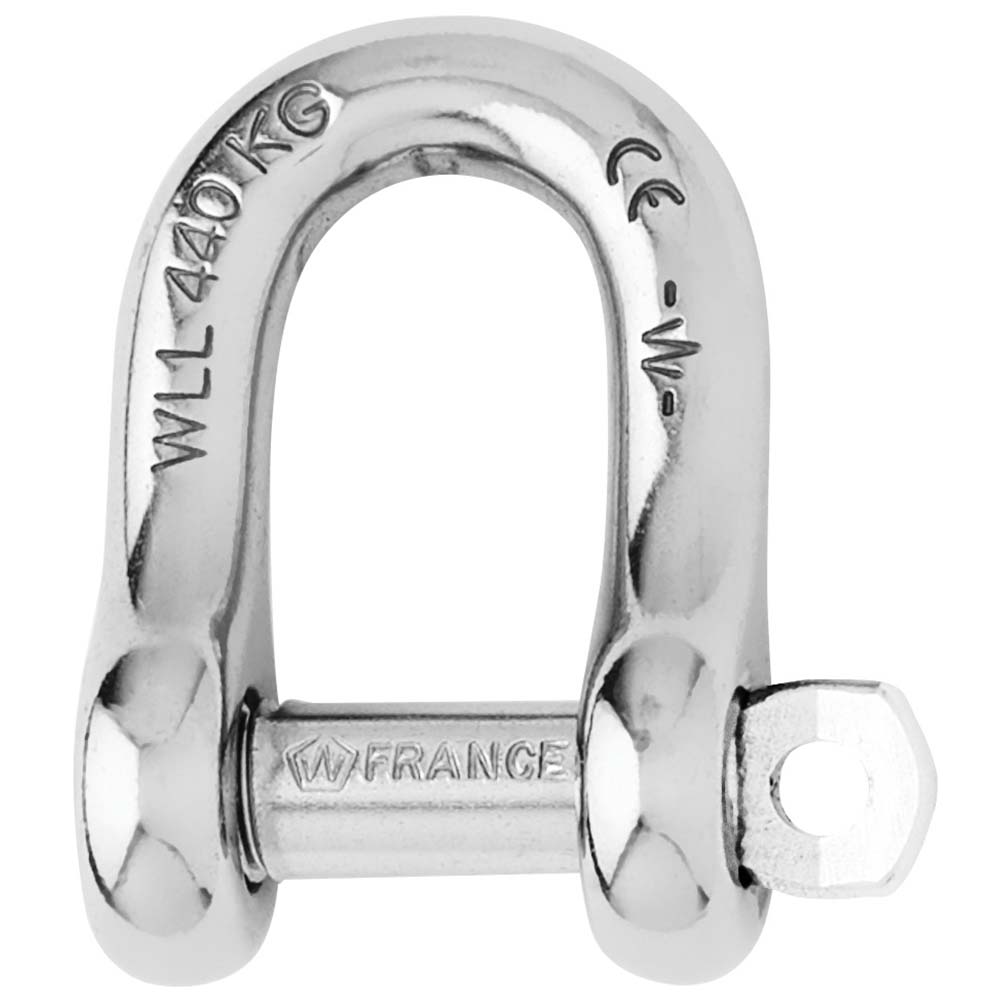

Wichard Marine Captive Pin D Shackle 12mm Diameter – Heavy Duty Stainless Steel Marine Hardware

Captive Pin D Shackle - Diameter 12mm - 15/32"

Features:

• Captive pin "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 4580
• WLL (lb) 3080
• Breaking load (lb) 15430
• Weight (lb) 0.414

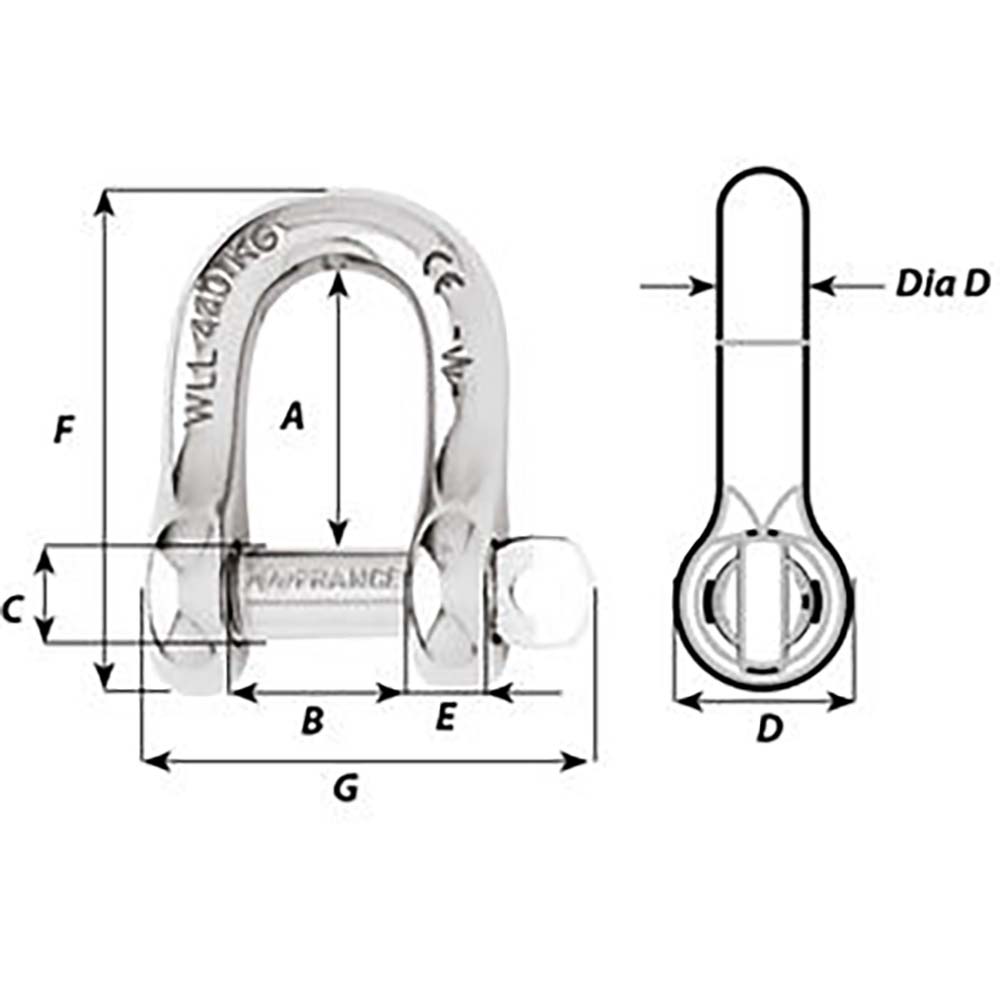

Dimensions (see 2nd image):

• A (inch) 1-17/32"
• B (inch) 15/16"
• C (inch) 33/64"
• D (inch) 15/16"
• D diameter (inch) 15/32"
• E (inch) 7/16"
• F (inch) 2-23/32"
• G (inch) 2-7/16"

The Wichard Marine Captive Pin D Shackle, part number 1406W, is engineered for demanding marine applications requiring reliable strength and safety. Crafted from high-grade 316L stainless steel, this shackle offers exceptional corrosion resistance and durability in harsh environments. The 12mm (15/32 inch) diameter shackle features a forged body with a captive pin design that remains connected to the shackle body at all times, even when open, minimizing the risk of loss or misplacement. The pin securely locks into one of the designated indentations, providing a firm and stable connection that resists loosening caused by vibrations or movement. This design ensures safety and integrity during heavy-duty use, making it suitable for attaching blocks, heads, or other marine equipment. With a working load limit of 3,080 pounds and a breaking load of 15,430 pounds, the Wichard Captive Pin D Shackle is built to handle substantial loads while maintaining ease of operation. Its lightweight construction, weighing approximately 0.41 pounds, combined with precise dimensions, allows for versatile installation in various marine configurations. The shackle's detailed dimensions, including an overall length of just over 1-1/2 inches and a width of around 15/16 inch, enable accurate integration with existing hardware. Whether used in standard marine rigging or specialized attachment scenarios, this shackle provides a robust, reliable, and corrosion-resistant solution for demanding marine environments.

Features:

• Captive pin forged in grade 316L stainless steel for superior corrosion resistance

• Pin remains connected to the body at all times, even when open

• Secure locking into indentations ensures no accidental loosening

• Designed to withstand high working and breaking loads for safety

• Ideal for attaching blocks, heads, and other marine equipment
