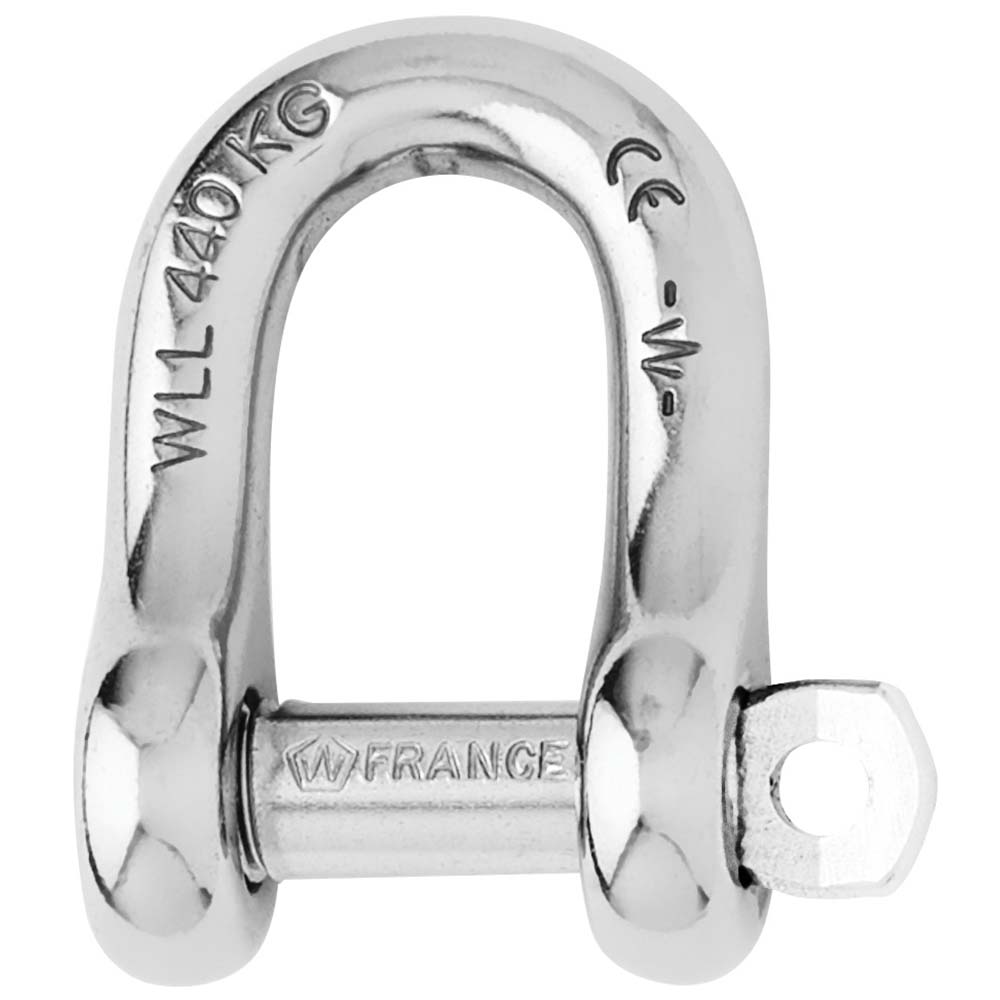

Wichard Marine Captive Pin D Shackle 4mm - 5/32 Inch Diameter for Heavy Duty Lifting and Mooring

Captive Pin D Shackle - Diameter 4mm - 5/32"

Features:

• Captive pin "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle
• Attachment applications: blocks, head

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 700
• WLL (lb) 440
• Breaking load (lb) 2200
• Weight (lb) 0.02

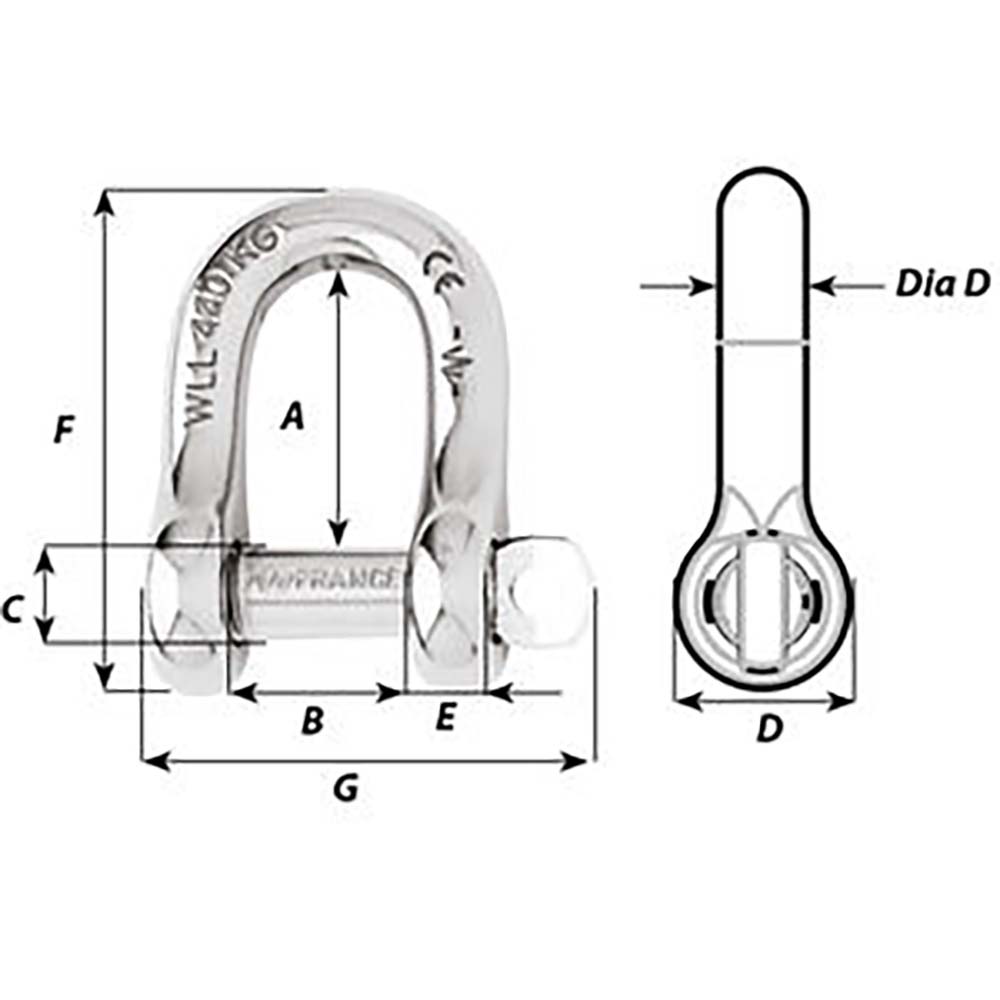

Dimensions (see 2nd image):

• A (inch) 33/64"
• B (inch) 5/16"
• C (inch) 13/64"
• D (inch) 23/64"
• D diameter (inch) 5/32"
• E (inch) 5/32"
• F (inch) 15/16"
• G (inch) 55/64"

The Wichard Marine Captive Pin D Shackle, part number 1401W, is a high-quality hardware component designed for demanding marine and industrial applications. Crafted from durable grade 316L stainless steel, this shackle offers exceptional corrosion resistance and strength, making it suitable for both lifting and attachment tasks in harsh environments. Its 4mm (5/32 inch) diameter pin is securely connected to the body at all times, preventing accidental loss even when opened, which enhances safety during use. The pin locks into one of the designated indentations, ensuring a reliable connection that resists loosening caused by vibrations or dynamic loads. This feature is particularly critical in applications where safety and dependability are paramount. The shackle's outstanding working load of 700 pounds and breaking load of 2200 pounds make it ideal for standard mooring, rigging, and attachment purposes, including connecting blocks, heads, or other hardware components. Its lightweight design, weighing only around 0.03 pounds, allows for easy handling without sacrificing strength or durability. The dimensions of the shackle are optimized for secure attachment, with a total length of approximately 33/64 inches and width of 5/16 inches, ensuring compatibility with a variety of fittings and hardware. The robust construction and high load capacities make the Wichard Marine Captive Pin D Shackle a reliable choice for marine professionals and enthusiasts seeking a secure, corrosion-resistant connection point in demanding environments.

Features:

• Captive pin 'D' shackle forged in grade 316L stainless steel for corrosion resistance and durability

• The pin remains connected to the body at all times, even when open, preventing loss

• Locking pin engages with indentations to prevent loosening due to vibrations

• Designed for high load capacity with a working load limit of 700 pounds and a breaking load of 2200 pounds

• Lightweight construction at approximately 0.03 pounds for easy handling and installation
