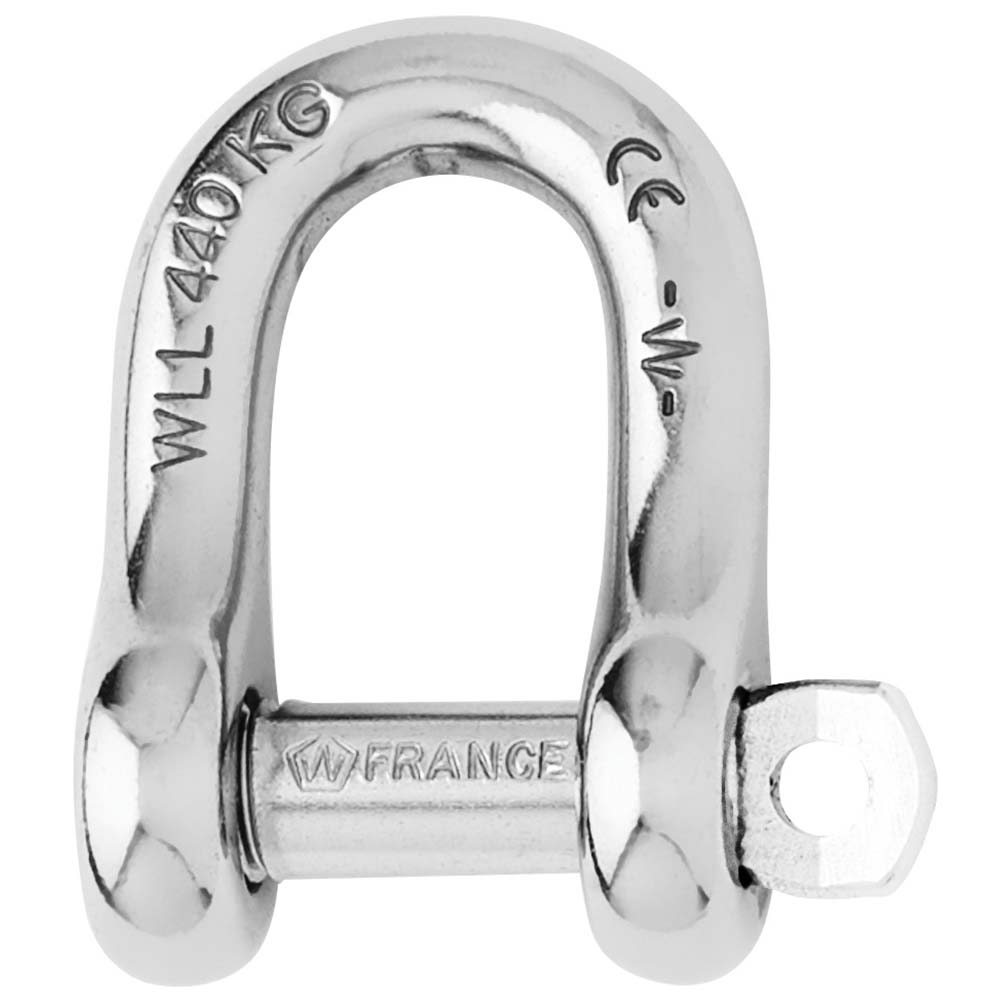

Wichard Marine Captive Pin D Shackle - 5mm Diameter, 3/16 Inch Opening

Captive Pin D Shackle - Diameter 5mm - 3/16"

Features:

• Captive pin "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1050
• WLL (lb) 660
• Breaking load (lb) 3300
• Weight (lb) 0.035

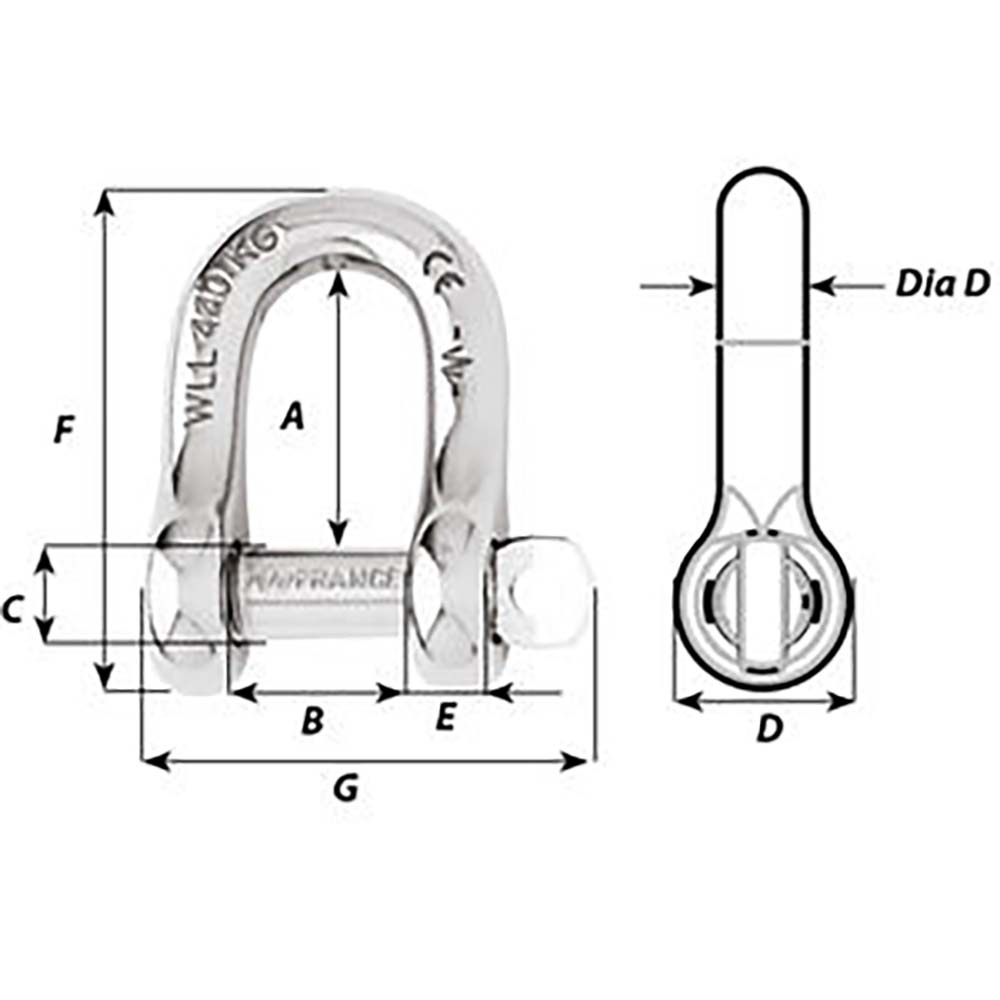

Dimensions (see 2nd image):

• A (inch) 5/8"
• B (inch) 25/64"
• C (inch) 15/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 13/64"
• F (inch) 7/16"
• G (inch) 1-3/16"
• H (inch) 1-1/16"

The Wichard Marine Captive Pin D Shackle, part number 1402W, is crafted from durable grade 316L stainless steel, ensuring exceptional corrosion resistance and strength for demanding marine and industrial applications. Featuring a 5mm diameter captive pin, this shackle maintains its connection to the body at all times, even when opened, providing reliable security during use. The pin locks securely into one of the indentations, eliminating the risk of loosening due to vibrations or dynamic loads, making it ideal for high-stress attachment points such as blocks, heads, or other marine fittings. With outstanding working and breaking loads, this shackle is designed for demanding environments where safety and durability are paramount. Its compact design makes it suitable for a variety of standard applications, offering both strength and ease of use in a corrosion-resistant package. Whether used on boats, industrial equipment, or secure attachments, the Wichard Marine Captive Pin D Shackle delivers reliable performance in a compact form factor.

Measuring approximately 5/8 inch in length and 7/16 inch in width, this shackle has dimensions carefully engineered for compatibility and strength. Its lightweight construction, weighing only about 0.8 ounces, ensures minimal added weight without sacrificing load capacity. The shackle's working load limit (WLL) of 660 pounds and breaking load of up to 3,300 pounds make it suitable for a wide range of heavy-duty applications. Designed for ease of installation and removal, it offers a secure and maintenance-free solution for securing loads or attachments in marine, industrial, or recreational settings. Built from high-quality stainless steel, it withstands harsh environments, including exposure to saltwater, making it a reliable choice for demanding conditions.

Whether for professional marine use or recreational activities, the Wichard Marine Captive Pin D Shackle provides a dependable connection point with high load capacity and corrosion resistance. Its innovative captive pin design ensures safety and ease of operation, preventing accidental loosening and ensuring consistent performance over time. This shackle is an essential component for those seeking a reliable, high-strength, corrosion-resistant securing solution in challenging conditions.

Features:

• Captive pin 'D' shackle forged in grade 316L stainless steel for corrosion resistance

• The pin remains connected to the body at all times, even when opened

• Pin locks into one of the indentations for secure attachment

• Designed to prevent loosening due to vibrations or dynamic loads

• Offers outstanding working and breaking loads for high-stress applications
