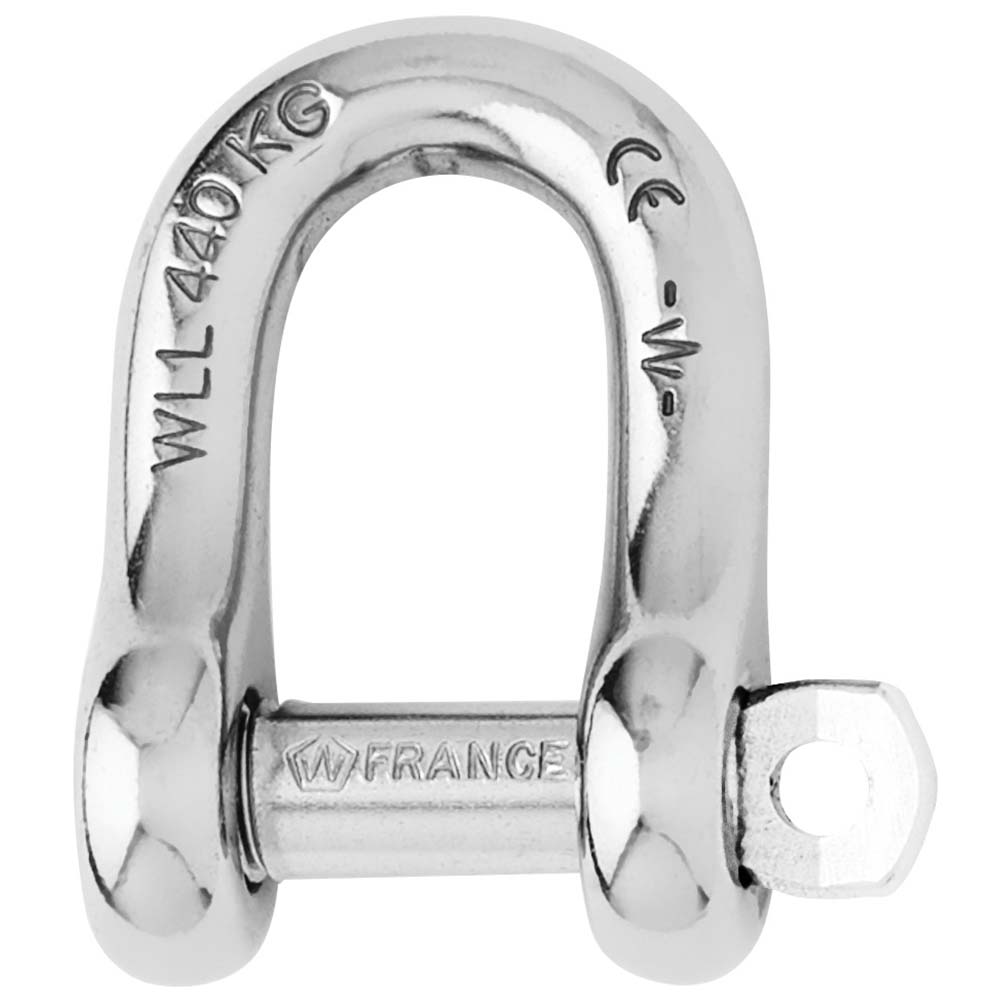

Wichard Marine Captive Pin D Shackle 6mm (1/4 inch) Grade 316L Stainless Steel

Captive Pin D Shackle - Diameter 6mm - 1/4"

Features:

• Captive pin "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1490
• WLL (lb) 970
• Breaking load (lb) 4850
• Weight (lb) 0.062

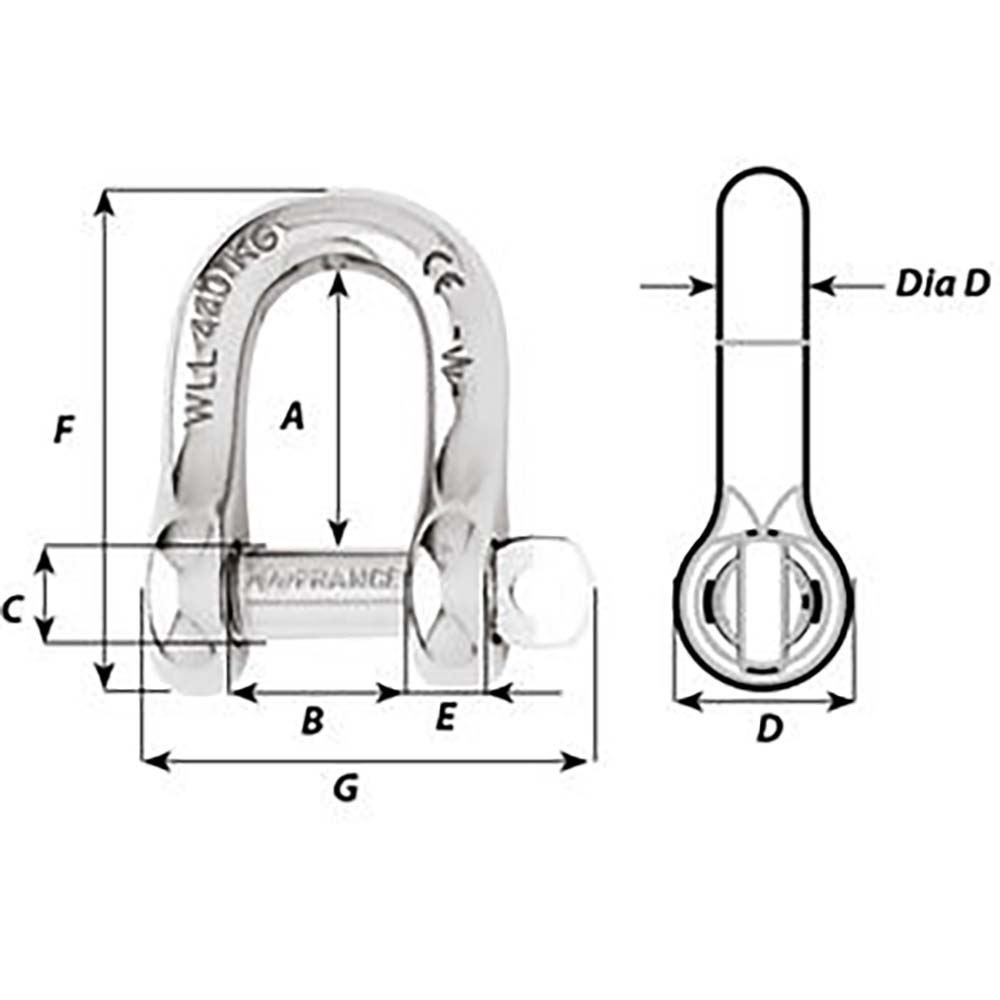

Dimensions (see 2nd image):

• A (inch) 25/32"
• B (inch) 15/32"
• C (inch) 9/32"
• D (inch) 35/64"
• D diameter (inch) 15/64"
• E (inch) 15/64"
• F (inch) 1-27/64"
• G (inch) 1-17/64"

The Wichard Marine Captive Pin D Shackle is a high-performance hardware component designed for demanding marine and industrial applications. Crafted from durable grade 316L stainless steel, this shackle offers exceptional corrosion resistance and strength. Its 6mm (1/4 inch) diameter pin remains connected to the body at all times, even when opened, ensuring easy handling and minimizing the risk of loss during use. The pin locks securely into one of the indentations, providing a reliable connection that resists loosening caused by vibrations or dynamic loads. This feature enhances safety and reliability in critical attachment points, such as blocks and heads. With outstanding working and breaking loads, the shackle is suitable for a variety of standard and attachment applications where strength and durability are essential. The compact design and precise dimensions make it ideal for tight spaces and specific load requirements. The shackle’s construction and locking mechanism enable it to withstand heavy loads while maintaining ease of use, making it a preferred choice for marine professionals and industrial operators. Whether used in rigging, lifting, or securing equipment aboard vessels or in industrial settings, this shackle provides dependable performance. Its robust build and secure locking design help ensure safety and operational efficiency in challenging environments. The Wichard Marine Captive Pin D Shackle combines quality, safety, and ease of use, making it an essential component for those requiring reliable hardware in demanding settings.

Features:

• Captive pin "D" shackle forged in grade 316L stainless steel for corrosion resistance

• Pin remains connected to the body at all times for convenience and safety

• Pin locks into one of the indentations to prevent loosening due to vibrations

• Designed to handle outstanding working and breaking loads for demanding applications

• Compact dimensions suitable for tight spaces and specific load requirements
