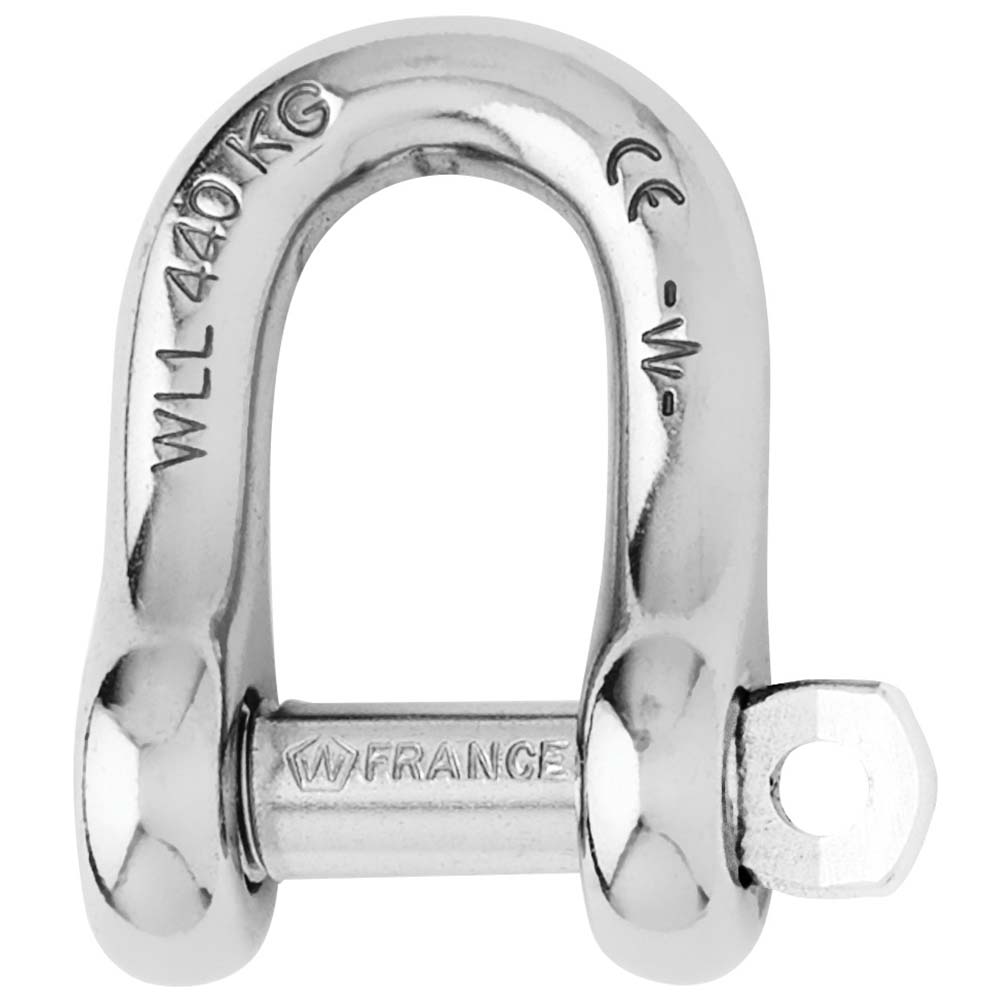

Wichard Marine Captive Pin D Shackle 8mm (5/16 inch) – Grade 316L Stainless Steel Heavy Duty Link

Captive Pin D Shackle - Diameter 8mm - 5/16"

Features:

• Captive pin "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• WLL (lb) 1580
• Breaking load (lb) 7930
• Weight (lb) 0.134

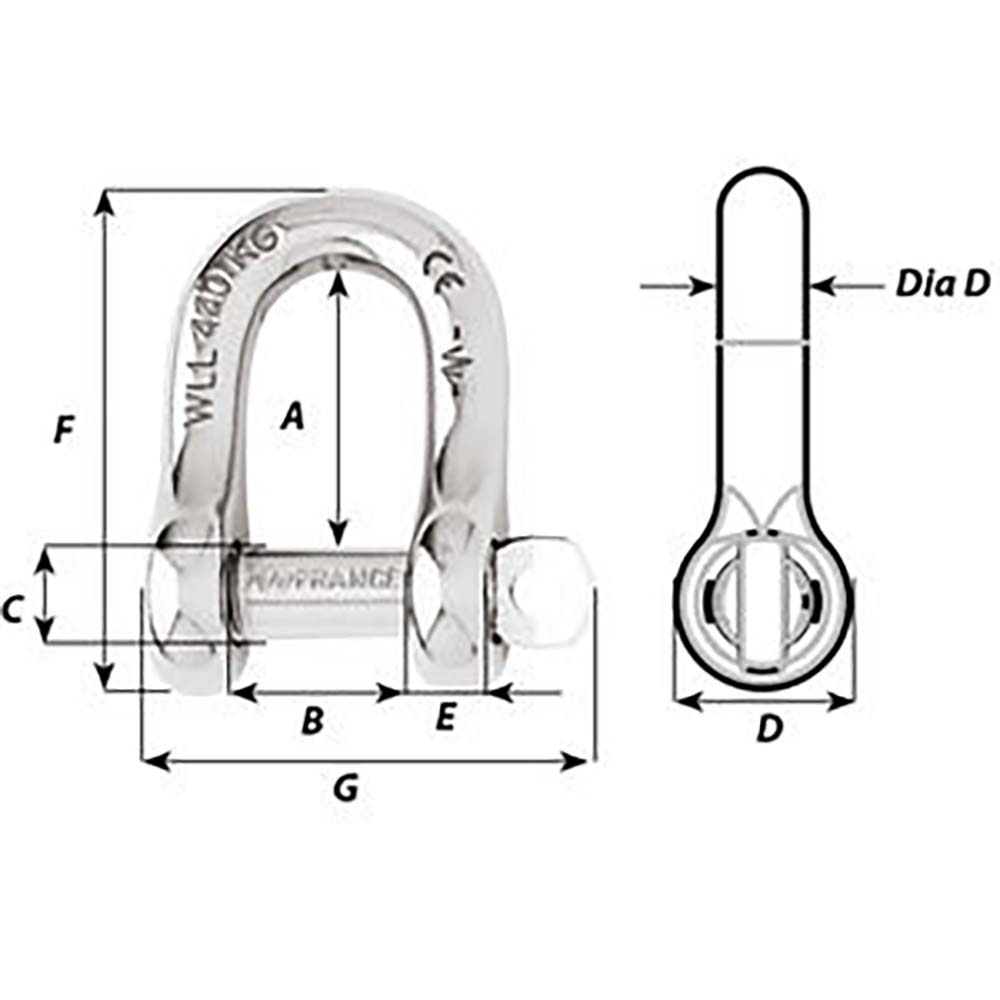

Dimensions (see 2nd image):

• A (inch) 1-1/32"
• B (inch) 5/8"
• C (inch) 23/64"
• D (inch) 45/64"
• D diameter (inch) 5/16"
• E (inch) 5/16"
• F (inch) 1-27/32"
• G (inch) 1-21/32"

The Wichard Marine Captive Pin D Shackle is a robust and reliable lifting and securing component designed for demanding marine and industrial applications. Crafted from high-grade 316L stainless steel, this shackle offers exceptional corrosion resistance, making it suitable for use in harsh environments. The 8mm (5/16 inch) diameter pin is permanently attached to the shackle body, ensuring the pin is always secure and eliminating the risk of accidental loss during operation. This design feature enhances safety and simplifies handling, especially in dynamic or vibration-prone settings. The pin locks into one of the predetermined indentations, providing a secure attachment point that resists loosening even under heavy loads or vibrations. With outstanding working and breaking loads, this shackle is engineered for heavy-duty applications like securing blocks, heads, or other rigging components in both commercial and recreational maritime settings. Its compact dimensions and durable construction make it an ideal choice for situations where space and strength are critical. The Wichard Marine Captive Pin D Shackle combines safety, durability, and ease of use, ensuring secure connections in demanding environments. Whether used for standard rigging or specialized attachment needs, this shackle provides peace of mind and reliable performance in every application.

Features:

• Captive pin 'D' shackle forged in grade 316L stainless steel for maximum corrosion resistance

• The pin is permanently connected to the body, preventing loss during use

• Pin locks into one of multiple indentations for secure attachment

• Designed to resist loosening caused by vibrations and dynamic forces

• High working and breaking loads for demanding applications
