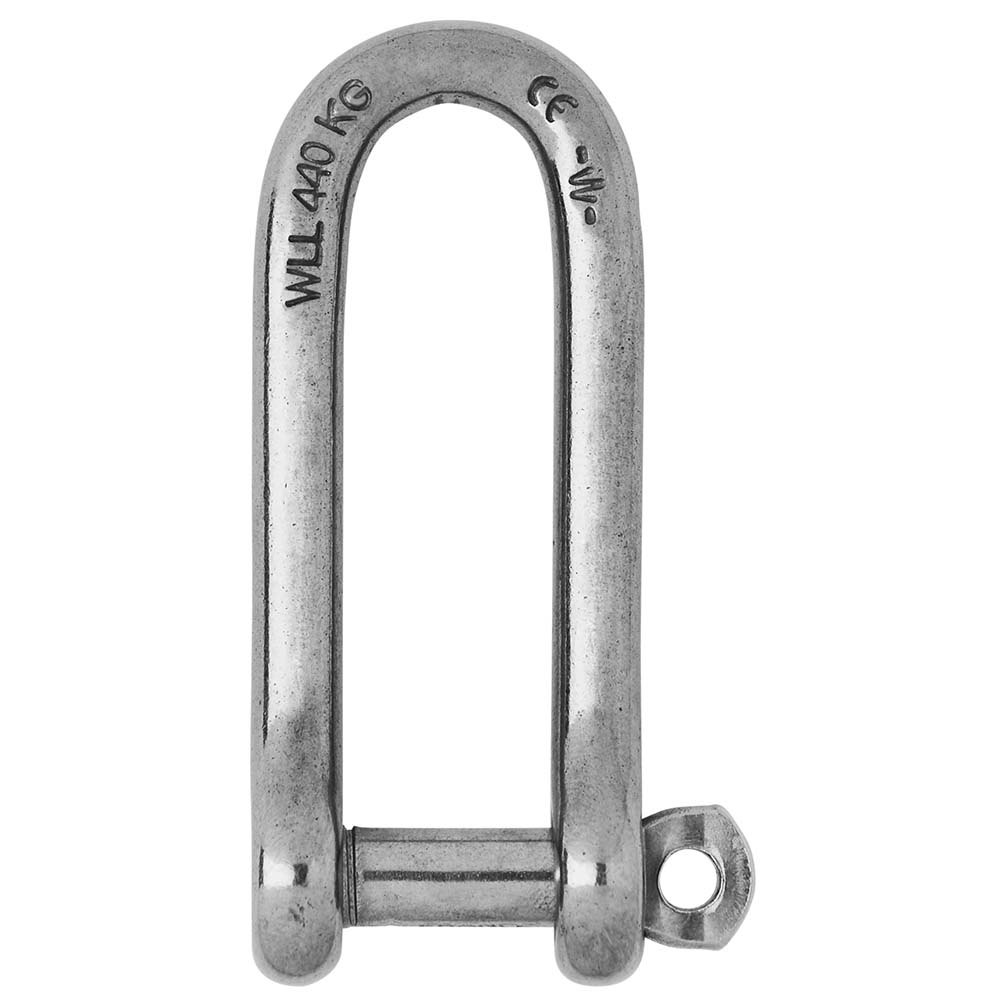

Wichard Marine Captive Pin Long D Shackle 10mm Diameter - Heavy-Duty Stainless Steel

Captive Pin Long D Shackle - Diameter 10mm - 13/32"

Features:

• Captive pin long "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 3350
• WLL (lb) 2290
• Breaking load (lb) 11460
• Weight (lb) 0.388

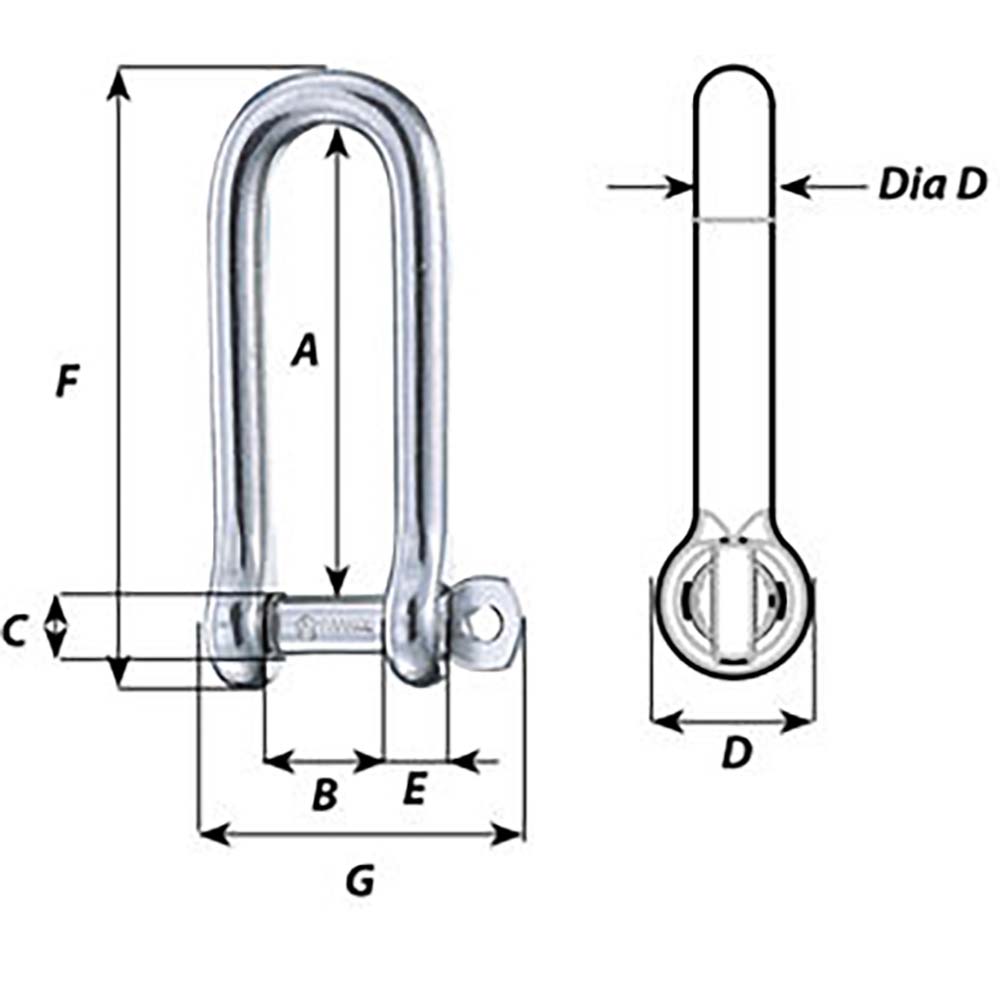

Dimensions (see 2nd image):

• A (inch) 3-5/64"
• B (inch) 25/32"
• C (inch) 7/16"
• D (inch) 53/64"
• D diameter (inch) 25/64"
• E (inch) 25/64"
• F (inch) 4-1/16"
• G (inch) 2-1/8"

The Wichard Marine Captive Pin Long D Shackle, part number 1415W, is engineered for demanding marine and industrial applications. Crafted from high-grade 316L stainless steel, this shackle offers exceptional corrosion resistance and durability. Its 10mm (13/32 inch) diameter pin is designed with a captive feature that remains connected to the shackle body at all times, ensuring safety and ease of use during assembly and disassembly. The pin locks securely into one of the indentations, eliminating the risk of loosening due to vibrations or dynamic loads, making it ideal for critical attachment points. The robust construction provides outstanding working and breaking loads, supporting heavy-duty tasks such as securing blocks, heads, or other rigging components requiring additional length for proper connection. The Wichard Marine Captive Pin Long D Shackle has a working load limit (WLL) of 2,290 pounds and a breaking load of 11,460 pounds, ensuring reliable performance under high stress. Weighing approximately 0.39 pounds, this shackle is suitable for applications where strength and reliability are paramount, including marine, industrial, and heavy equipment setups. Its design features include a length of just over 3 inches, with width and height dimensions tailored for optimal strength and ease of handling, making it a versatile choice for professionals seeking dependable hardware. Whether for standard or specialized rigging tasks, this shackle combines safety, strength, and corrosion resistance in a compact, easy-to-use package, ensuring secure connections in challenging environments.

Features:

• Captive pin long 'D' shackle forged in grade 316L stainless steel

• The pin remains connected to the body at all times, even when opened

• Pin locks into one of the indentations for secure fastening

• Design prevents loosening due to vibrations

• Supports outstanding working and breaking loads for heavy-duty applications
