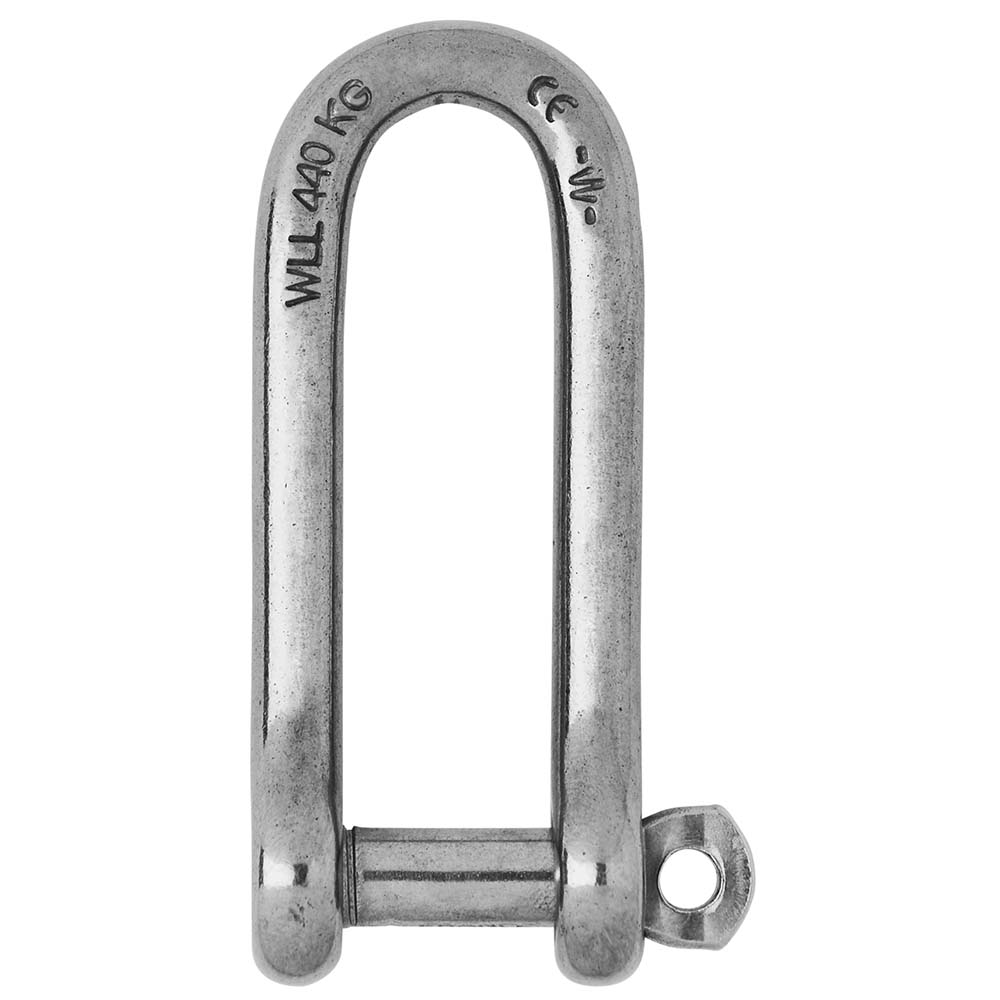

Wichard Marine Captive Pin Long D Shackle 4mm Diameter 5/32 inch

Captive Pin Long D Shackle - Diameter 4mm - 5/32"

Features:

• Captive pin long "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 700
• WLL (lb) 440
• Breaking load (lb) 2200
• Weight (lb) 0.026

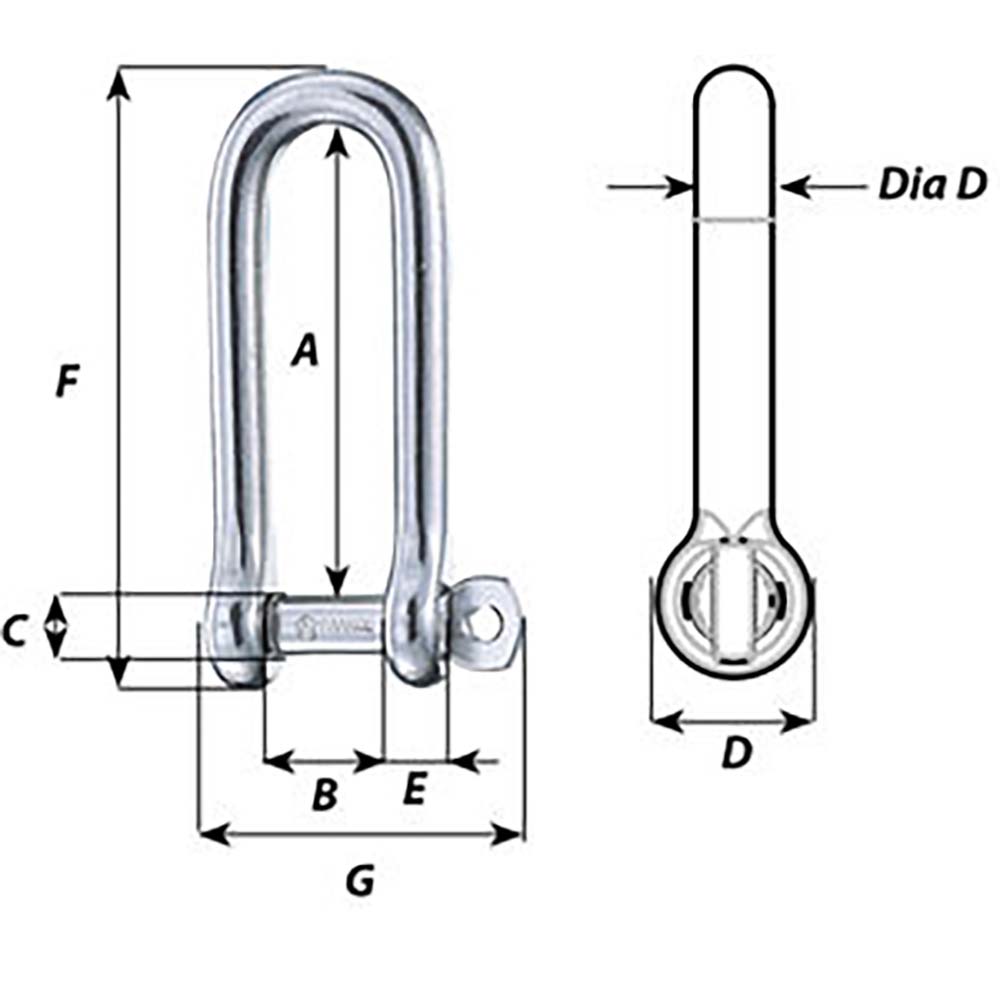

Dimensions (see 2nd image):

• A (inch) 1-7/32"
• B (inch) 5/16"
• C (inch) 13/64"
• D (inch) 23/64"
• D diameter (inch) 5/32"
• E (inch) 5/32"
• F (inch) 1-39/64"
• G (inch) 55/64"

The Wichard Marine Part Number 1411W is a high-quality captive pin long D shackle crafted from durable grade 316L stainless steel. Designed for demanding marine and industrial applications, this shackle features a 4mm diameter pin with a length of approximately 1-7/32 inches, making it suitable for use where additional length is required. Its robust construction ensures outstanding working and breaking loads, providing reliability in critical lifting and securing tasks. The pin remains connected to the body at all times and locks into designated indentations, eliminating the risk of loosening due to vibrations and ensuring safety during operation. Its corrosion-resistant stainless steel material makes it ideal for harsh environments, including saltwater conditions, extending the lifespan and maintaining strength over time. The Wichard Captive Pin Long D Shackle is well-suited for attachments such as blocks, heads, and other rigging components, especially when longer reach is necessary. Its compact weight of approximately 0.026 pounds enhances ease of handling without sacrificing load capacity, making it a practical choice for various marine and industrial applications. With a working load limit of 700 pounds and a breaking load of 2,200 pounds, this shackle provides a dependable connection point that combines safety, strength, and durability in one compact package.

Features:

• Captive pin long 'D' shackle forged in grade 316L stainless steel

• Pin remains connected to the body at all times, even when opened

• Pin locks into one of the indentations to prevent loosening

• Designed to resist loosening due to vibrations

• Offers outstanding working and breaking loads for safety and reliability
