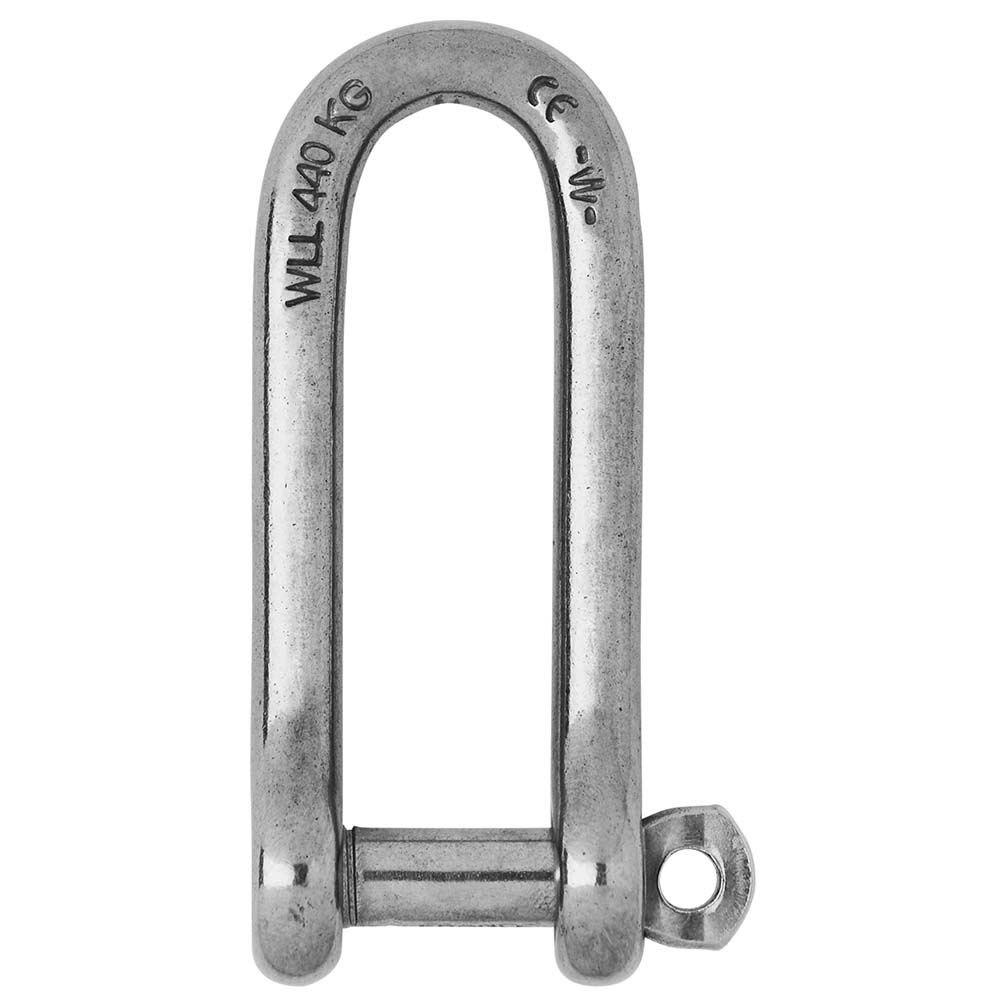

Wichard Marine Captive Pin Long D Shackle 5mm (3/16 inch) Diameter

Captive Pin Long D Shackle - Diameter 5mm - 3/16"

Features:

• Captive pin long "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1050
• WLL (lb) 660
• Breaking load (lb) 3300
• Weight (lb) 0.053

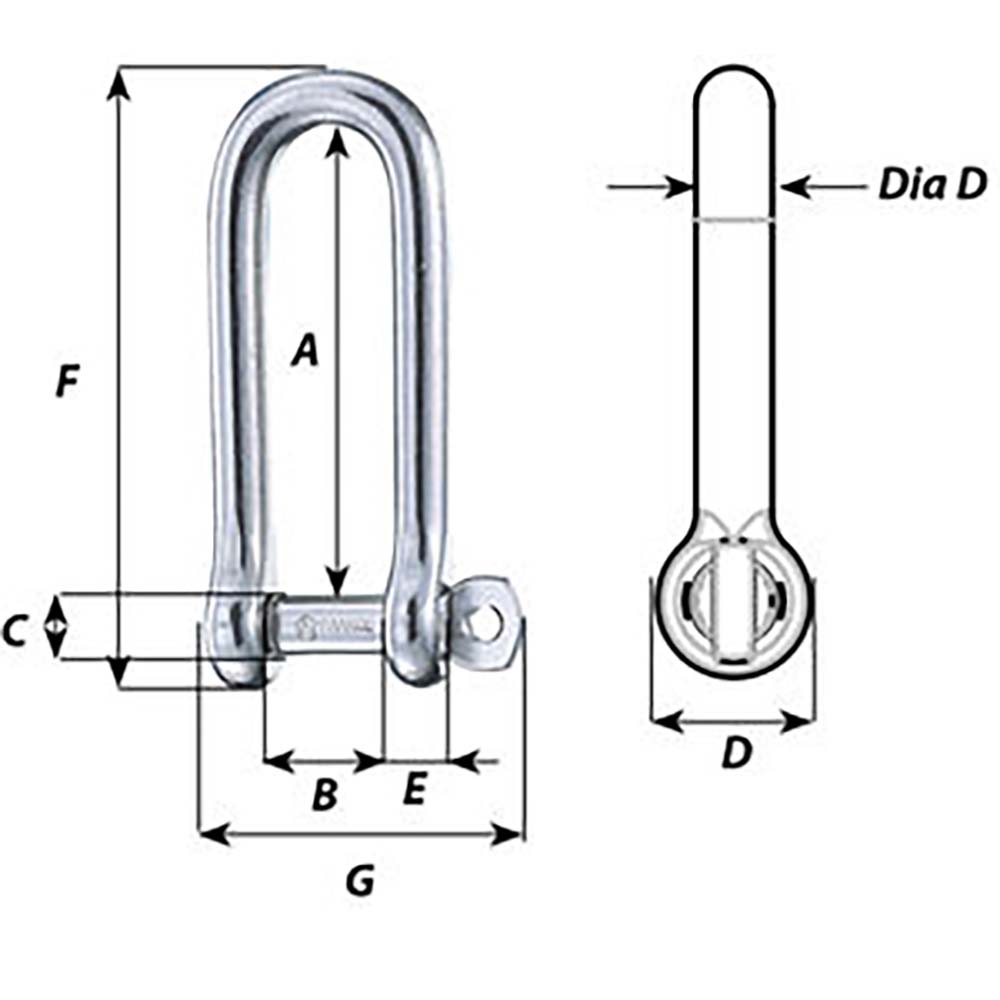

Dimensions (see 2nd image):

• A (inch) 1-17/32"
• B (inch) 25/64"
• C (inch) 15/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 13/64"
• F (inch) 2-3/64"
• G (inch) 1-1/16"

The Wichard Marine Captive Pin Long D Shackle, part number 1412W, is a high-performance hardware component crafted from durable grade 316L stainless steel. Designed for demanding marine and industrial applications, this shackle features a 5mm (3/16 inch) diameter pin that remains connected to the body at all times, even when opened, minimizing the risk of loss or misplacement. The pin locks securely into one of the indentations, providing a reliable connection that resists loosening due to vibrations or dynamic loads. Its robust construction offers outstanding working and breaking loads, making it suitable for critical attachment points such as blocks, heads, or other rigging components requiring additional length and strength. The shackle's forged design ensures maximum strength and durability, capable of handling a working load limit of 660 pounds and a breaking load of 3300 pounds. Its lightweight design, weighing approximately 0.053 pounds, facilitates easy handling and installation in tight or hard-to-reach spaces. With precise dimensions tailored for various marine and industrial needs, this shackle fits seamlessly into standard rigging setups, providing safety, reliability, and longevity in harsh environments. Whether used in marine vessels, heavy-duty rigging, or industrial applications, the Wichard Marine Captive Pin Long D Shackle combines innovative design with superior material quality to meet demanding operational requirements.

Features:

• Captive pin long 'D' shackle forged in grade 316L stainless steel for corrosion resistance and strength

• The pin remains connected to the body at all times, preventing loss during operation

• Pin locks into one of the indentations for secure engagement and easy release

• Design prevents loosening due to vibrations or dynamic forces

• Offers high working and breaking loads suitable for demanding applications
