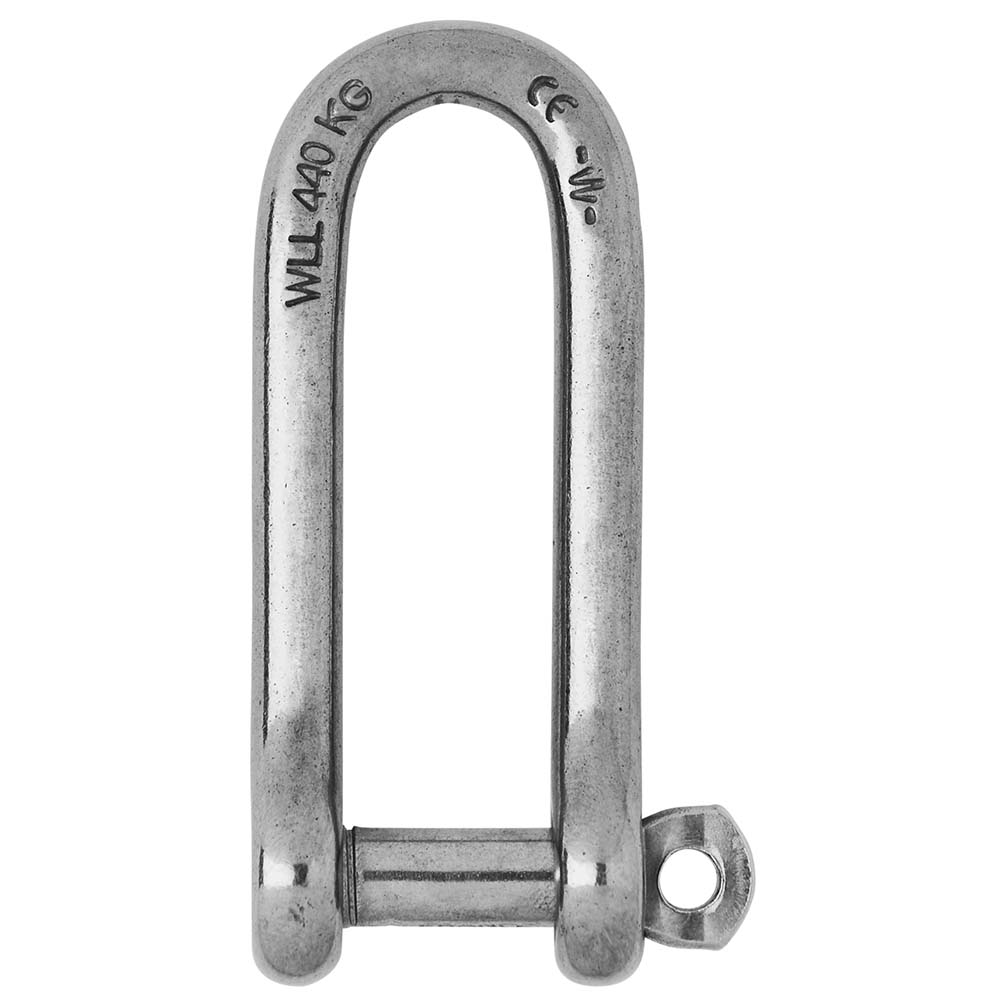

Wichard Marine Captive Pin Long D Shackle 6mm Diameter (1/4 inch) - Grade 316L Stainless Steel

Captive Pin Long D Shackle - Diameter 6mm - 1/4"

Features:

• Captive pin long "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1490
• WLL (lb) 970
• Breaking load (lb) 4850
• Weight (lb) 0.088

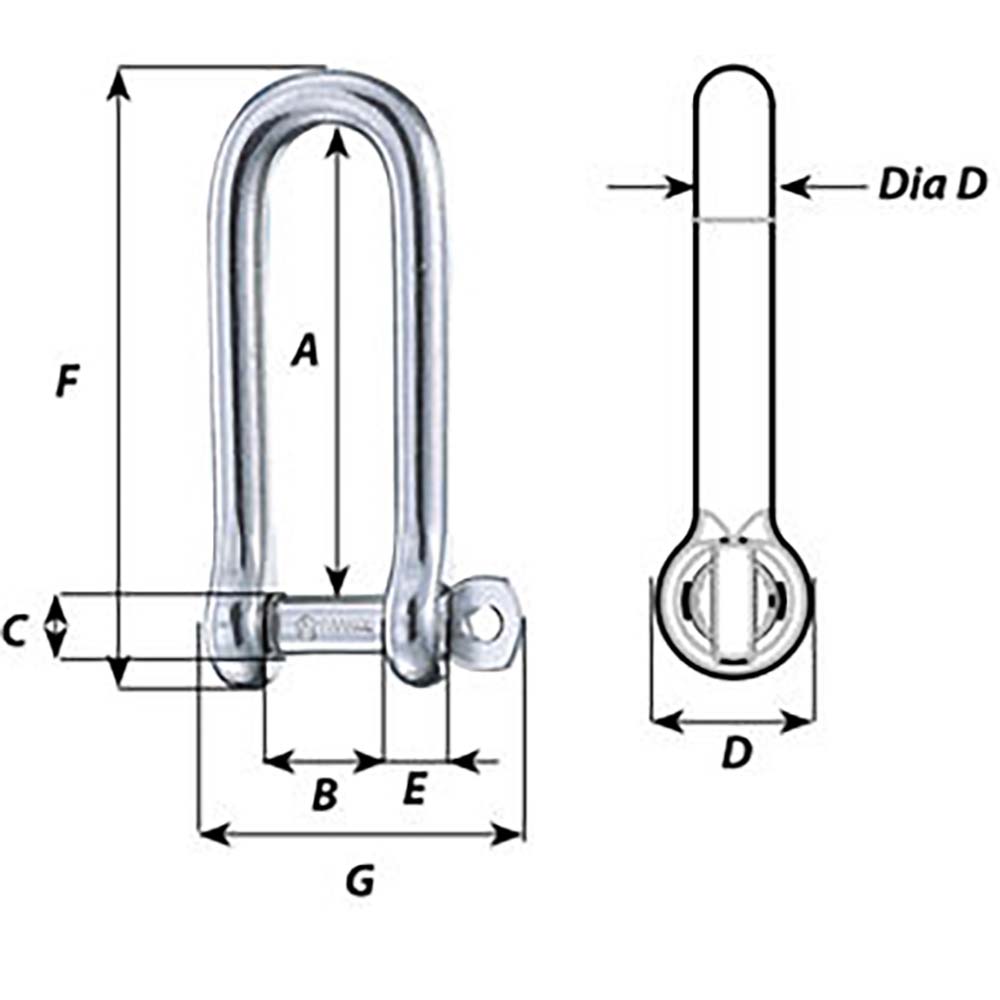

Dimensions (see 2nd image):

• A (inch) 1-13/16"
• B (inch) 15/32"
• C (inch) 9/32"
• D (inch) 35/64"
• D diameter (inch) 15/64"
• E (inch) 15/64"
• F (inch) 2-31/64"
• G (inch) 1-17/64"

The Wichard Marine Captive Pin Long D Shackle with a 6mm diameter (1/4 inch) offers a reliable and durable solution for heavy-duty lifting and attachment applications. Crafted from high-grade 316L stainless steel, this shackle provides excellent corrosion resistance and strength, making it suitable for marine environments and other demanding conditions. The design features a captive pin that remains connected to the body at all times, even when opened, ensuring ease of use and reducing the risk of losing components during operation. The pin locks securely into one of the indentations, preventing loosening due to vibrations and providing peace of mind during critical tasks. The shackle's outstanding working load limit of 1,490 pounds and breaking load of 4,850 pounds make it ideal for applications requiring robust strength and safety margins. Its construction facilitates standard applications where additional length is needed, and it is well-suited for attachment points such as blocks, heads, and other rigging components. The dimensions of the shackle are engineered to meet precise specifications, with a length of approximately 1-13/16 inches and other key measurements detailed for compatibility and installation considerations. Weighing only about 0.16 pounds, this shackle combines strength with lightweight design for ease of handling and deployment. Whether in marine, industrial, or construction settings, the Wichard Marine Captive Pin Long D Shackle provides a secure, corrosion-resistant, and high-strength option for demanding lifting and rigging applications.

Features:

• Captive pin long 'D' shackle forged in grade 316L stainless steel

• Pin remains connected to the body at all times, even when opened

• Locking pin secures into indentations, preventing loosening from vibrations

• Offers outstanding working and breaking loads for demanding applications

• Designed for standard applications requiring increased length and attachment points
