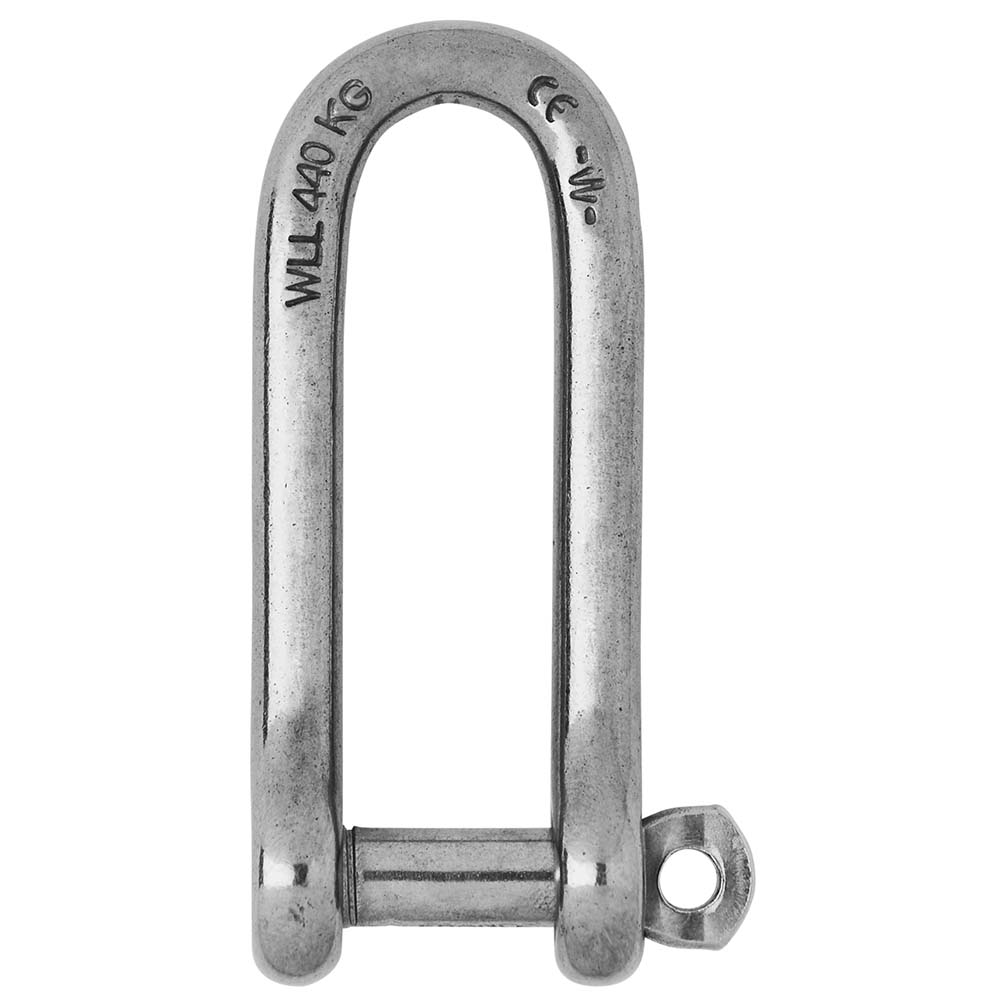

Wichard Marine Captive Pin Long D Shackle 8mm Diameter (Part Number 1414W)

Captive Pin Long D Shackle - Diameter 8mm - 5/16"

Features:

• Captive pin long "D" shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads

Applications:

• Standard applications of shackle requiring more length
• Attachment applications: blocks, head...

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 2200
• WLL (lb) 1580
• Breaking load (lb) 7930
• Weight (lb) 0.203

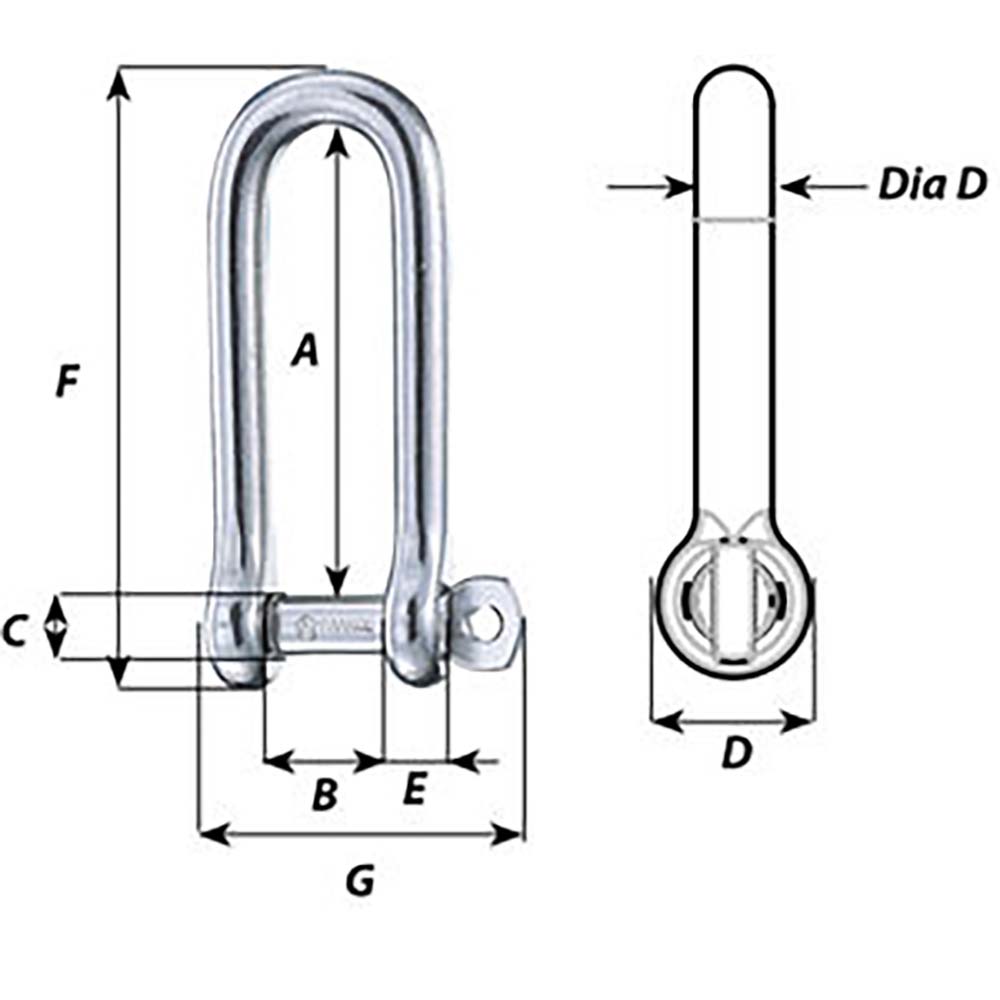

Dimensions (see 2nd image):

• A (inch) 2-7/16"
• B (inch) 5/8"
• C (inch) 23/64"
• D (inch) 43/64"
• D diameter (inch) 5/16"
• E (inch) 5/16"
• F (inch) 3-15/64"
• G (inch) 1-11/16"

The Wichard Marine Captive Pin Long D Shackle is a durable and reliable hardware component designed for demanding lifting and rigging applications. Constructed from high-grade 316L stainless steel, this shackle offers excellent corrosion resistance and strength, making it suitable for marine and industrial environments. The 8mm (5/16 inch) diameter pin is permanently attached to the body, ensuring continuous security and eliminating the risk of loss or misplacement during use. The pin locks into one of the indentations, providing a secure connection that remains unaffected by vibrations or dynamic loads. Thanks to its outstanding working and breaking loads, this shackle is ideal for heavy-duty tasks involving blocks, heads, and other attachment points requiring additional length and strength.

Designed with safety and performance in mind, the Wichard Marine Captive Pin Long D Shackle features a forged body that withstands significant stress while maintaining a lightweight profile. Its dimensions are optimized for ease of handling and compatibility with various rigging setups. The shackle's design ensures quick and secure attachment, making it suitable for both commercial and recreational applications where reliability is critical. Whether used in marine rigging, lifting operations, or other industrial setups, this shackle provides peace of mind through its robust construction and secure locking mechanism.

With a working load limit of 2,200 pounds and a breaking load of 7,930 pounds, the Wichard Marine Captive Pin Long D Shackle meets rigorous safety standards. Its compact weight of approximately 0.34 pounds adds minimal additional load to your system while delivering maximum strength. This shackle’s versatility and resilience make it a trusted choice for professionals requiring dependable hardware that combines durability, safety, and ease of use. Invest in the Wichard Marine Captive Pin Long D Shackle for your demanding rigging and lifting needs, knowing it is engineered to perform reliably under the toughest conditions.

Features:

• Captive pin long 'D' shackle forged in grade 316L stainless steel

• The pin is connected to the body at all times, preventing loss

• Pin locks into indentations for secure attachment

• Resistant to loosening caused by vibrations

• Supports outstanding working and breaking loads
