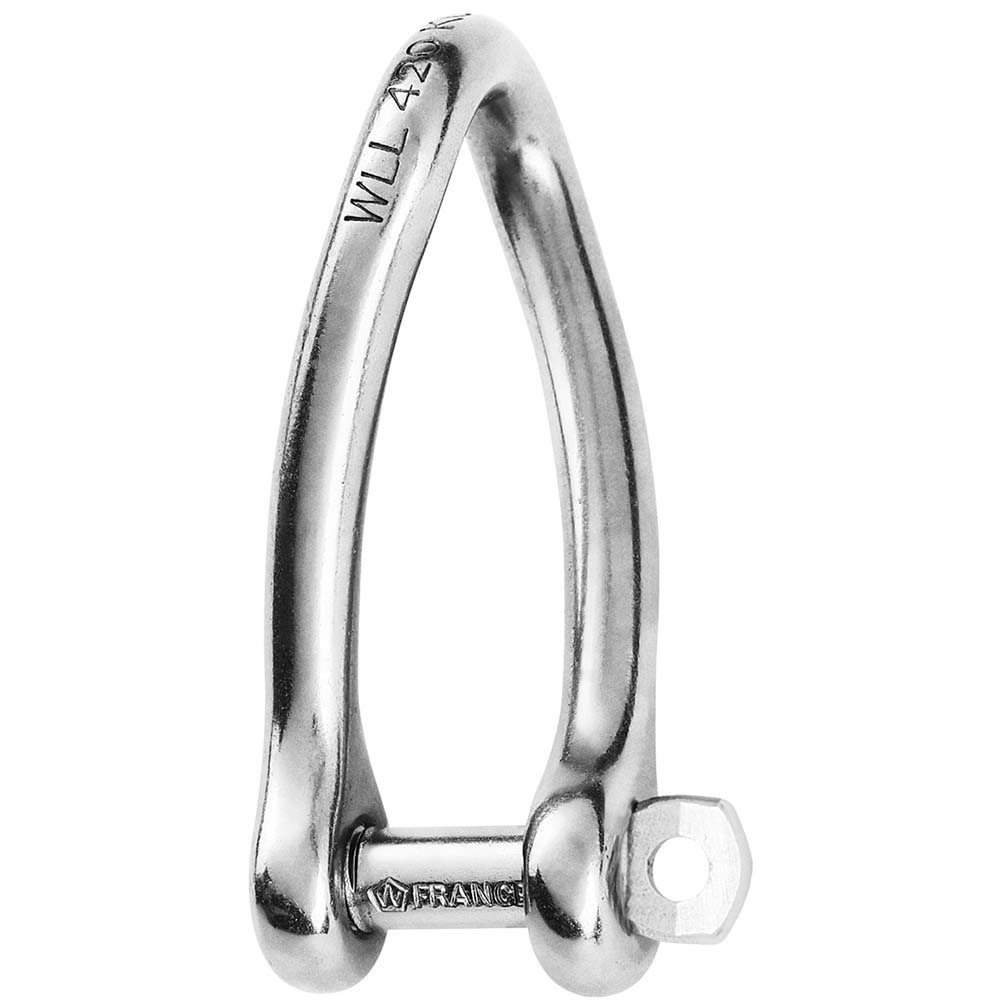

Wichard Marine Captive Pin Twisted Shackle 5mm Diameter - 3/16 Inch - Grade 316L Stainless Steel

Captive Pin Twisted Shackle - Diameter 5mm - 3/16"

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single-handed operation for more safety
• Part # 1422 is not suitable for lifting applications

Applications:

• Perfect for application where a 90 angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1050
• Breaking load (lb) 3300
• Weight (lb) 0.051

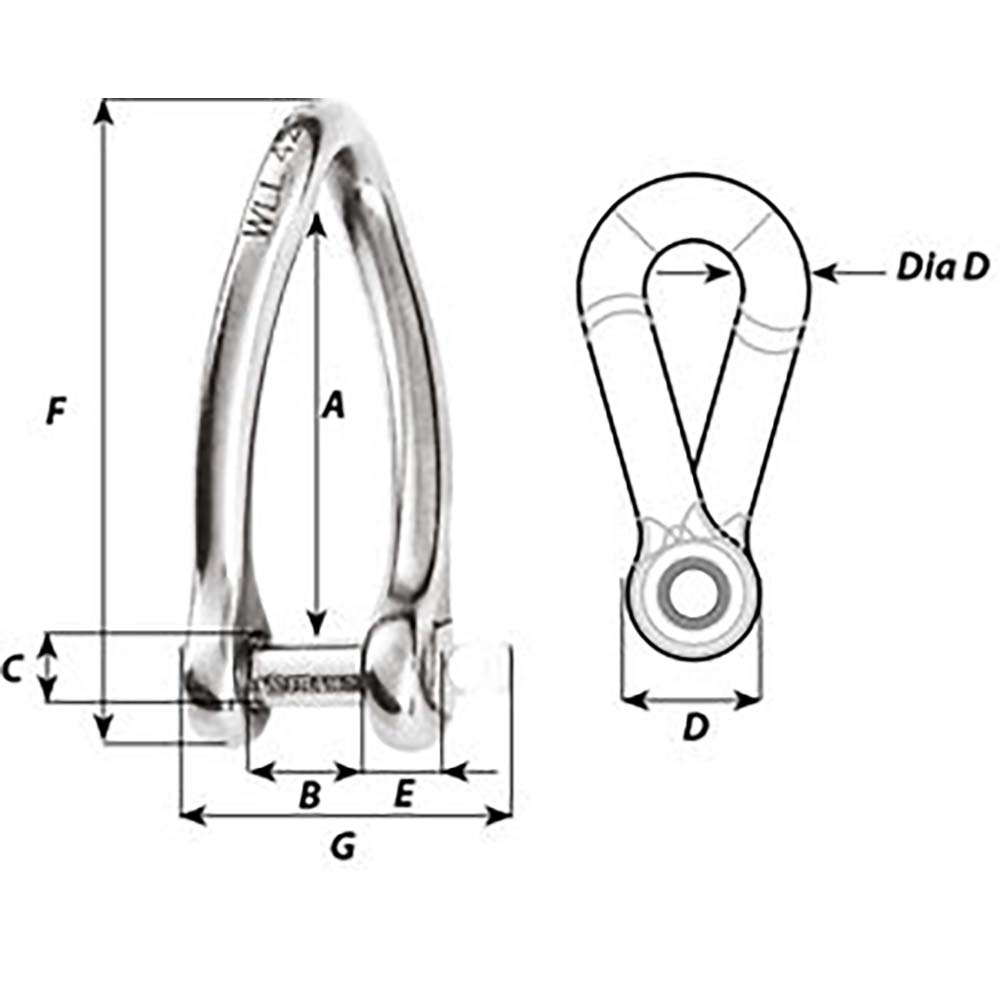

Dimensions (see 2nd image):

• A (inch) 1-29/64"
• B (inch) 25/64"
• C (inch) 15/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 13/64"
• F (inch) 1-31/32"
• G (inch) 1-1/16"

The Wichard Marine Captive Pin Twisted Shackle is a high-performance hardware component designed for secure and reliable connections in demanding environments. Crafted from durable grade 316L stainless steel, this shackle features a twisted pin that remains connected to the body at all times, even when opened, providing enhanced safety and ease of use. The pin locks into one of the indentations, preventing loosening due to vibrations, and allowing for single-handed operation that promotes safer handling. With outstanding working and breaking loads, this shackle is suitable for various applications where a 90-degree twist setup is required, such as attaching unarticulated parts like blocks on rails or other purchase configurations. The compact design ensures strength without excessive weight, making it ideal for marine and industrial use where corrosion resistance and reliability are critical. The shackle’s construction and locking mechanism make it a dependable choice for secure rigging and attachment tasks, offering peace of mind during operation. Please note that part # 1422 is not suitable for lifting applications, emphasizing its use in securing and connecting rather than lifting heavy loads. Whether you need a robust component for marine, industrial, or recreational projects, the Wichard Marine Captive Pin Twisted Shackle provides a combination of strength, safety, and ease of use, ensuring your connections are secure and dependable in challenging conditions.

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel

• Pin remains connected to the body at all times, even when opened

• Pin locks into one of the indentations to prevent loosening due to vibrations

• Outstanding working and breaking load capacities

• Designed for single-handed operation for enhanced safety
