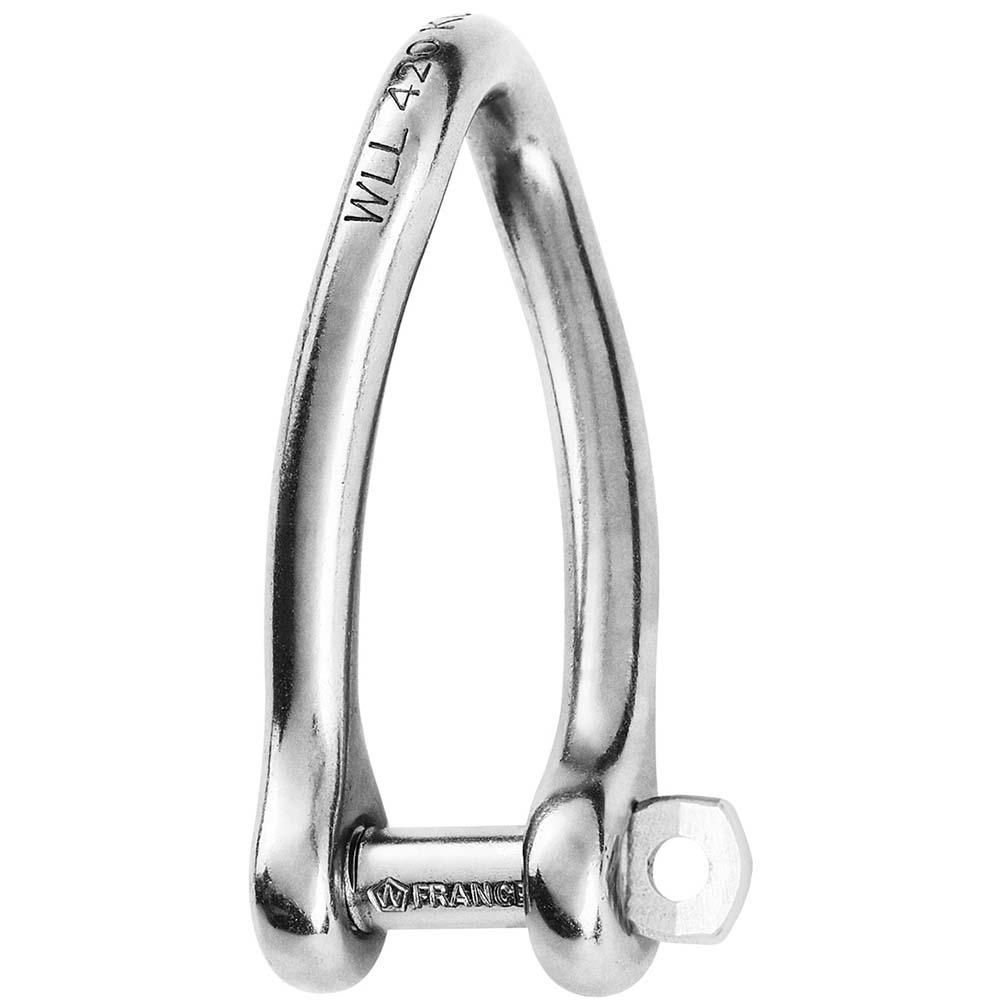

Wichard Marine Captive Pin Twisted Shackle 6mm Diameter – 1/4 Inch for Marine and Rigging Applications

Captive Pin Twisted Shackle - Diameter 6mm - 1/4"

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single-handed operation for more safety

Applications:

• Perfect for application where a 90 angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1320
• Breaking load (lb) 4620
• Weight (lb) 0.086

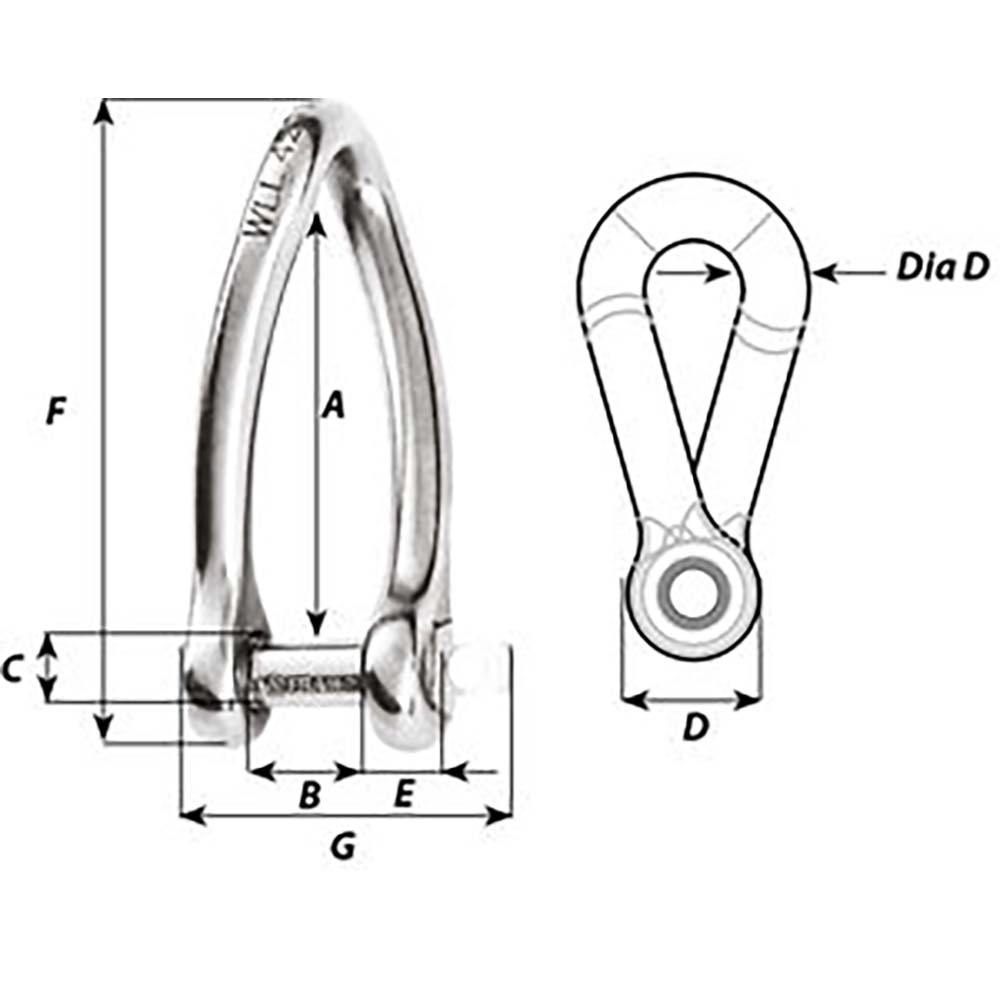

Dimensions (see 2nd image):

• A (inch) 1-47/64"
• B (inch) 15/32"
• C (inch) 9/32"
• D (inch) 35/64"
• D diameter (inch) 15/64"
• E (inch) 15/64"
• F (inch) 2-23/64"
• G (inch) 1-7/32"

The Wichard Marine Part Number 1423W Captive Pin Twisted Shackle is designed for demanding marine and rigging applications requiring secure connections and reliable performance. Crafted from high-grade 316L stainless steel, this 6mm (1/4 inch) shackle provides exceptional corrosion resistance and durability in harsh environments. Its innovative design features a pin that remains connected to the body at all times, even when opened, ensuring ease of use and reducing the risk of losing components during operation. The pin locks into one of the available indentations, preventing accidental loosening caused by vibrations or dynamic loads. This shackle boasts outstanding working and breaking loads, with a working load limit of 1,320 pounds and a breaking load of 4,620 pounds, making it suitable for critical load-bearing applications. Its single-handed operation enhances safety and convenience during installation or adjustment, streamlining handling in tight or challenging conditions. Whether used to attach unarticulated parts, such as blocks on a rail, or in purchase setups, this shackle provides a secure, reliable fastening solution. Its compact form allows for precise fitting in constrained spaces while maintaining high strength standards. Designed for ease of use and reliability, the Wichard Marine Captive Pin Twisted Shackle is ideal for sailing, industrial rigging, and other demanding lifting or securing tasks requiring a twist setup at a 90-degree angle. Its robust construction and safety features make it a trusted choice for professionals seeking durability and performance in marine environments or heavy-duty applications.

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel for corrosion resistance

• Pin remains connected to the body at all times, even when opened, ensuring no loss during use

• Pin locks into one of the indentations for secure fastening and resistance to loosening from vibrations

• Outstanding working load of 1,320 pounds and breaking load of 4,620 pounds for heavy-duty applications

• Single-handed operation enhances safety and ease of handling in tight spaces
