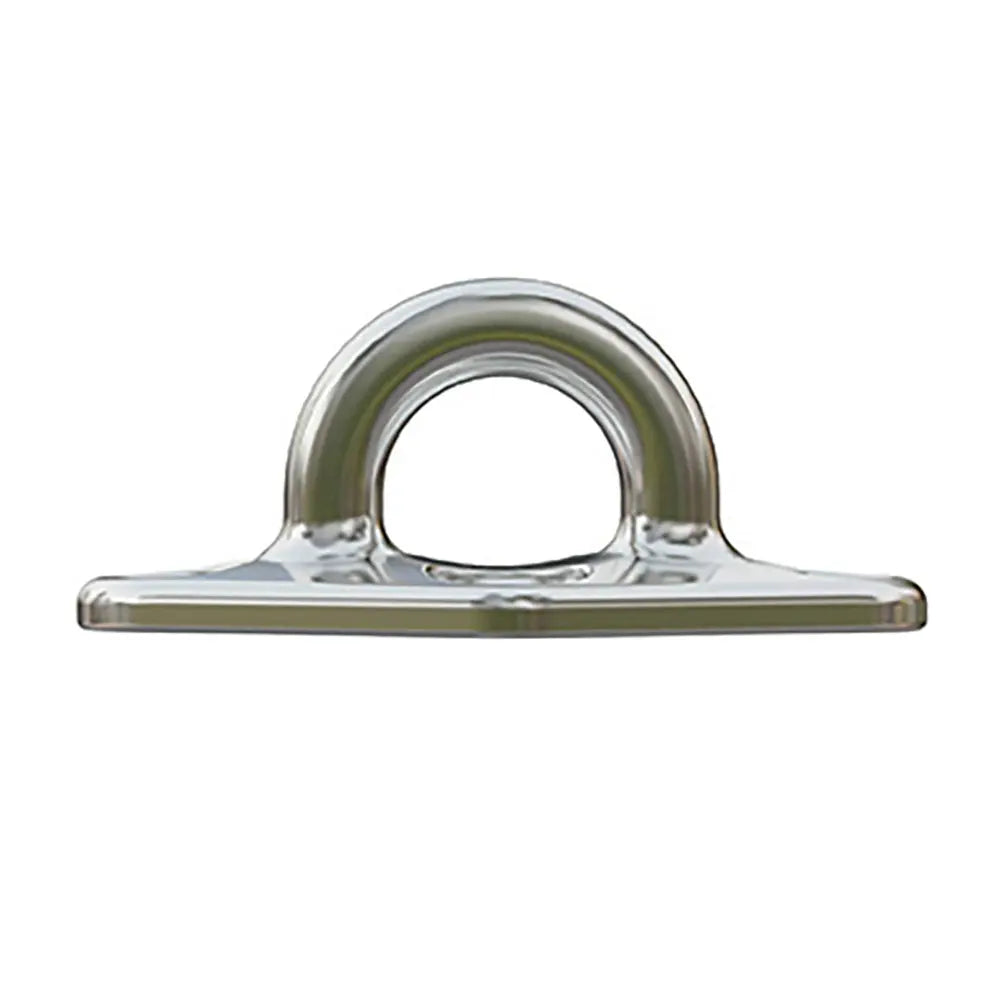

Wichard Marine Diamond Pad Eye - Round 60mm Length with M5 Screw

Diamond Pad Eye - Round - 60mm Length (2-23/64") - M5 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M5 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 2645.5 / (kg) 1200
• Breaking Load: (lb) 7054.7 / (kg) 3200
• Weight: (lb) 0.13 / (g) 59
• W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200
• W.L 2 (45 degrees): (lb) 2425 / (kg) 1100
• W.L 3 (0 degrees): (lb) 2425 / (kg) 1100
• B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200
• B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000
• B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000

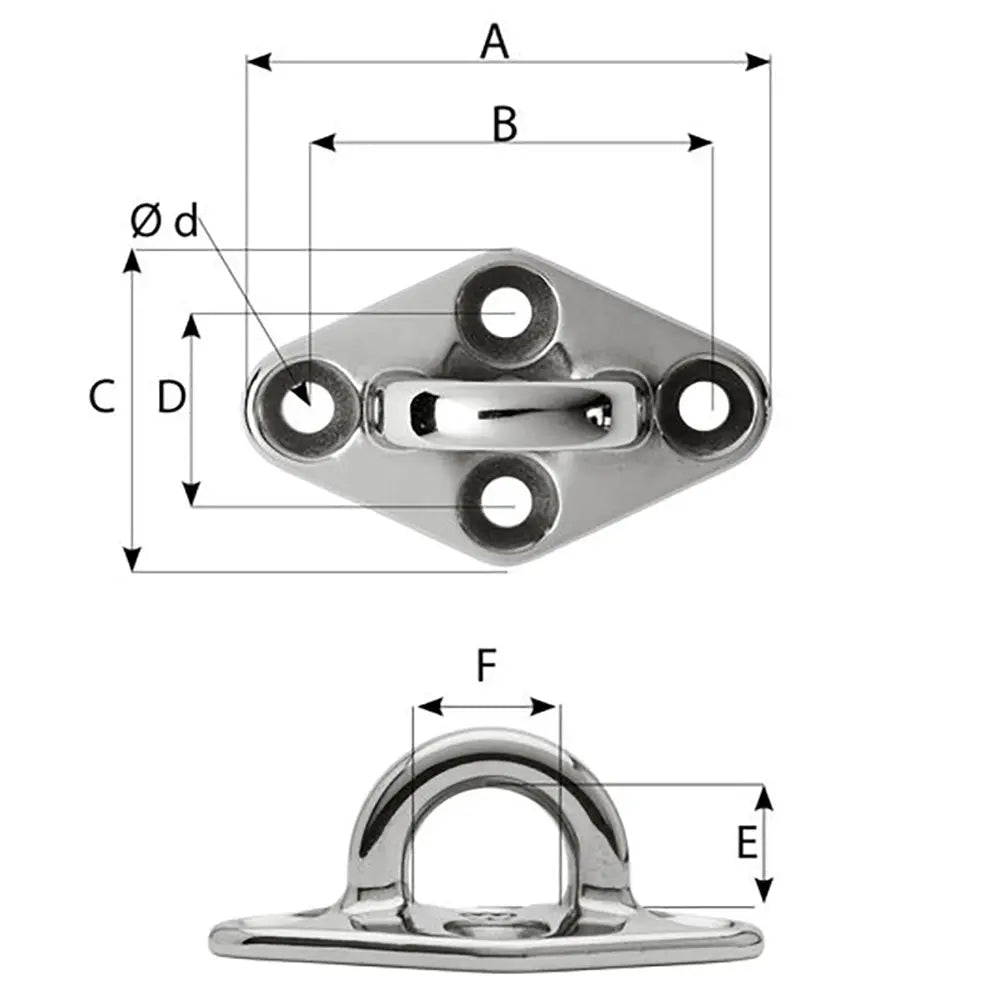

Dimensions:

• A: (inch) 2 23/64" / (mm) 60
• B: (inch) 1 13/16" / (mm) 46
• C: (inch) 1 1/2" / (mm) 38
• D: (inch) 15/16" / (mm) 24
• E: (inch) 37/64" / (mm) 14.5
• F: (inch) 3/4" / (mm) 19

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Diamond Pad Eye combines durability and precision, designed for demanding nautical and industrial applications. Crafted from duplex stainless steel grade, this 60mm round pad eye offers an excellent balance of mechanical strength and corrosion resistance, ensuring reliable performance in harsh environments. Its optimized dimensions make it suitable for a variety of fastening and rigging tasks, including mast foot blocks and reefing systems. The pad eye features a robust M5 screw for secure attachment, making installation straightforward and dependable. Ideal for applications requiring a working load limit of up to 1200 pounds, it also boasts a breaking load capacity of approximately 3200 pounds, providing added safety margins for critical load-bearing tasks. The design emphasizes efficiency with a lightweight profile, weighing only about 2.4 ounces, which minimizes added weight without compromising strength. This versatile component is essential in marine and industrial setups where durability and safety are paramount. Its precise measurements and materials ensure long-lasting service, even under repeated stress or exposure to corrosive elements. Whether used for securing sails, rigging, or other structural components, the Wichard Marine Diamond Pad Eye delivers dependable performance and peace of mind in demanding conditions.

Features:

• Mechanical resistance versus corrosion resistance ratio

• Optimized dimensions for versatile applications

• Designed for secure connection with M5 screw
