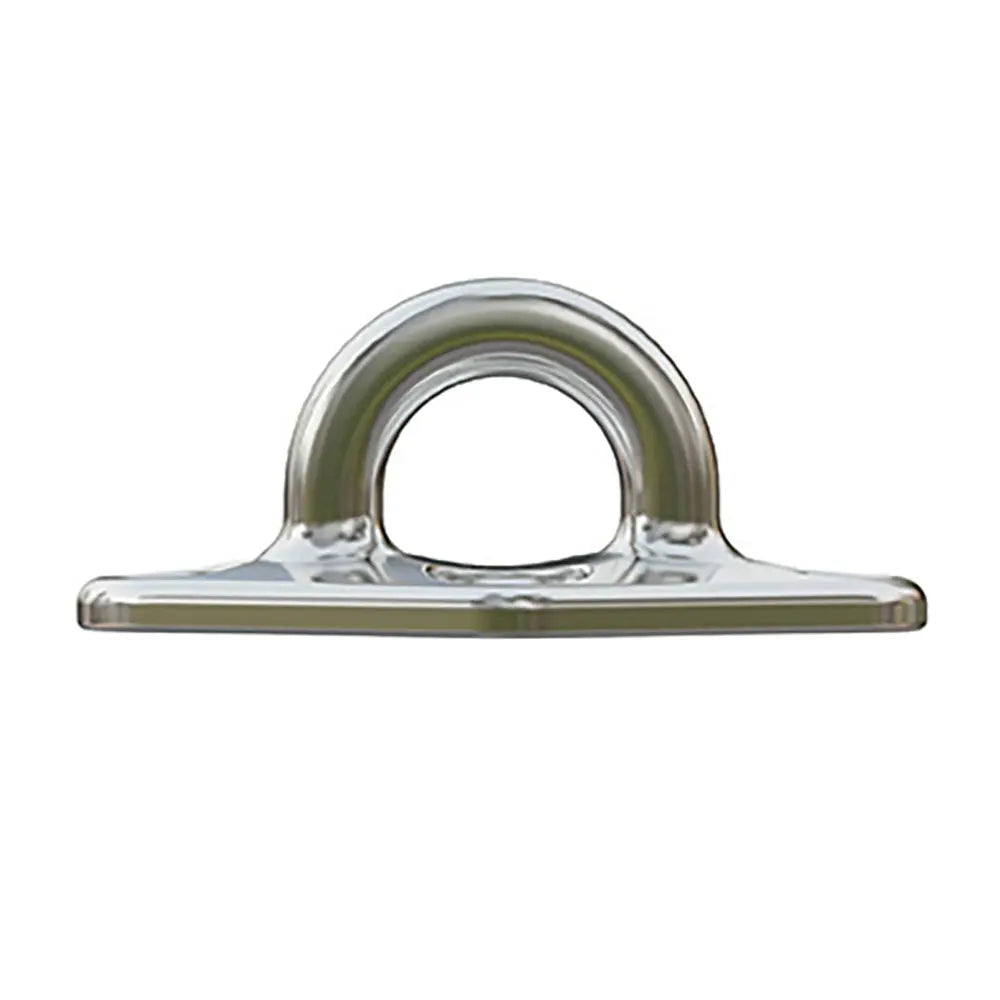

Wichard Marine Diamond Pad Eye - Round, 79mm Length, M6 Screw - Marine Hardware

Wichard Marine Diamond Pad Eye - Round, 79mm Length, M6 Screw - Marine Hardware

Regular price $41.28 USD
Sale price $41.28 USD Regular price
Sale Sold out
Shipping calculated at checkout.

Diamond Pad Eye - Round - 79mm Length (3-7/64") - M6 Screw

Features:

  • Mechanical resistance versus corrosion resistance ratio
  • Optimized dimensions
  • For M6 screw

Applications:

  • Mast foot blocks
  • Reefing blocks
  • Various fastenings

Specifications:

  • Materials: Duplex stainless steel grade
  • Working Load: (lb) 6393.4 / (kg) 2900
  • Breaking Load: (lb) 17196 / (kg) 7800
  • Weight: (lb) 0.315 / (g) 143
  • W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
  • W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
  • W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
  • B.L 1 (90 degrees): (lb) 17196 / (kg) 7800
  • B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
  • B.L 3 (0 degrees): (lb) 13889 / (kg) 6300

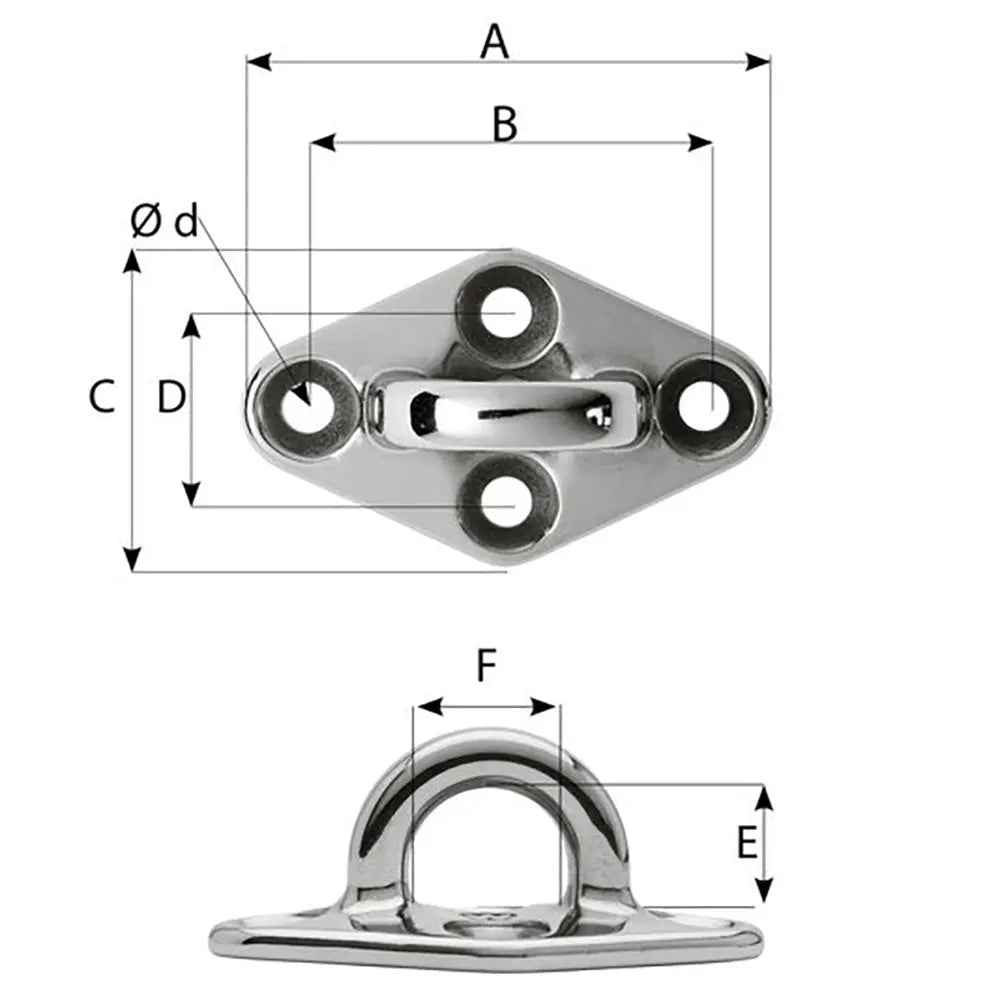

Dimensions:

  • A: (inch) 3 7/64" / (mm) 79
  • B: (inch) 2 23/64" / (mm) 60
  • C: (inch) 1 31/32" / (mm) 50
  • D: (inch) 1 17/64" / (mm) 32
  • E: (inch) 47/64" / (mm) 18.5
  • F: (inch) 55/64" / (mm) 22

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Diamond Pad Eye is a robust and corrosion-resistant hardware component designed for demanding marine applications. Made from duplex stainless steel grade, this pad eye offers an excellent balance of mechanical resistance and durability, ensuring reliable performance in harsh environments. Its optimized dimensions facilitate easy installation and secure fastening, making it suitable for a variety of rigging and structural tasks on boats and ships. The 79mm (3-7/64 inches) length and M6 screw compatibility allow for versatile use in different nautical setups. Whether used for mast foot blocks, reefing blocks, or general fastening purposes, this pad eye maintains high strength and safety standards, supporting working loads up to 2,900 kg (6,393 lbs). The breaking load capacity reaches 7,800 kg (17,196 lbs), providing a substantial safety margin for critical applications. The design features a compact weight of approximately 143 grams (0.315 lbs), ensuring minimal added mass without compromising strength. Its dimensions include a width of 60mm (2-23/64 inches) and a height of 50mm (1-31/32 inches), with other key measurements facilitating compatibility and ease of use. The working load limits vary with the angle of load application, with an optimal rating at 90 degrees, and safety is assured by a safety factor of five times the working load limit. This pad eye is sold individually, offering flexibility for custom configurations and replacements. Suitable for both industrial and nautical environments, the Wichard Marine Diamond Pad Eye provides a reliable, corrosion-resistant fastening solution that withstands demanding conditions and heavy loads, ensuring safety and durability in all your marine rigging projects.

Features:

  • Corrosion-resistant duplex stainless steel grade for durability in marine conditions
  • Optimized dimensions for easy installation and secure fastening
  • Supports a working load of up to 2,900 kg (6,393 lbs) and a breaking load of 7,800 kg (17,196 lbs)
  • Designed for use with M6 screws for versatile applications
  • Ideal for mast foot blocks, reefing blocks, and various fastening tasks in marine settings

Only 1 piece in stock!
