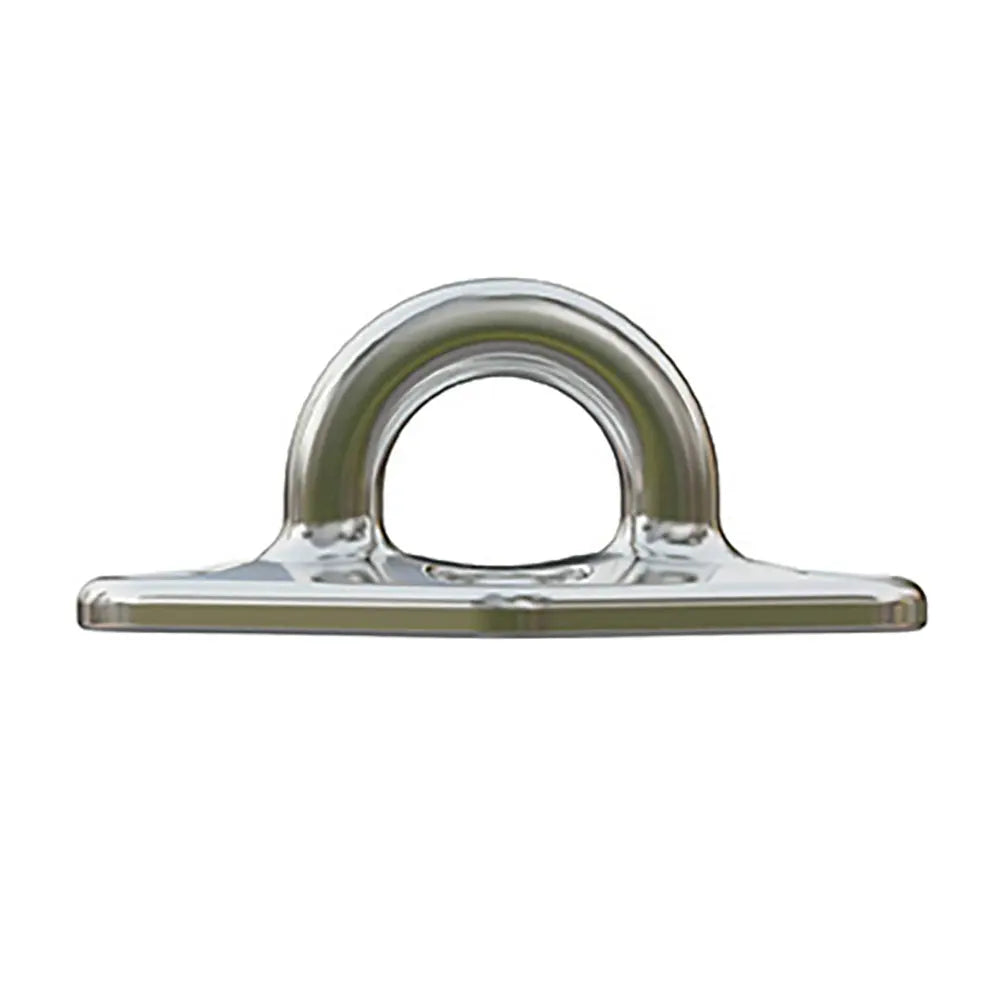

Wichard Marine Diamond Pad Eye Round - 98mm Length with M8 Screw for Marine and Industrial Use

Diamond Pad Eye - Round - 98mm Length (3-55/64") - M8 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M8 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 9259.4 / (kg) 4200
• Breaking Load: (lb) 24691.7 / (kg) 11200
• Weight: (lb) 0.551 / (g) 250
• W.L 1 (90 degrees): (lb) 9259.4 / (kg) 4200
• W.L 2 (45 degrees): (lb) 9259.4 / (kg) 4200
• W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100
• B.L 1 (90 degrees): (lb) 24691.7 / (kg) 11200
• B.L 2 (45 degrees): (lb) 24691.7 / (kg) 11200
• B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

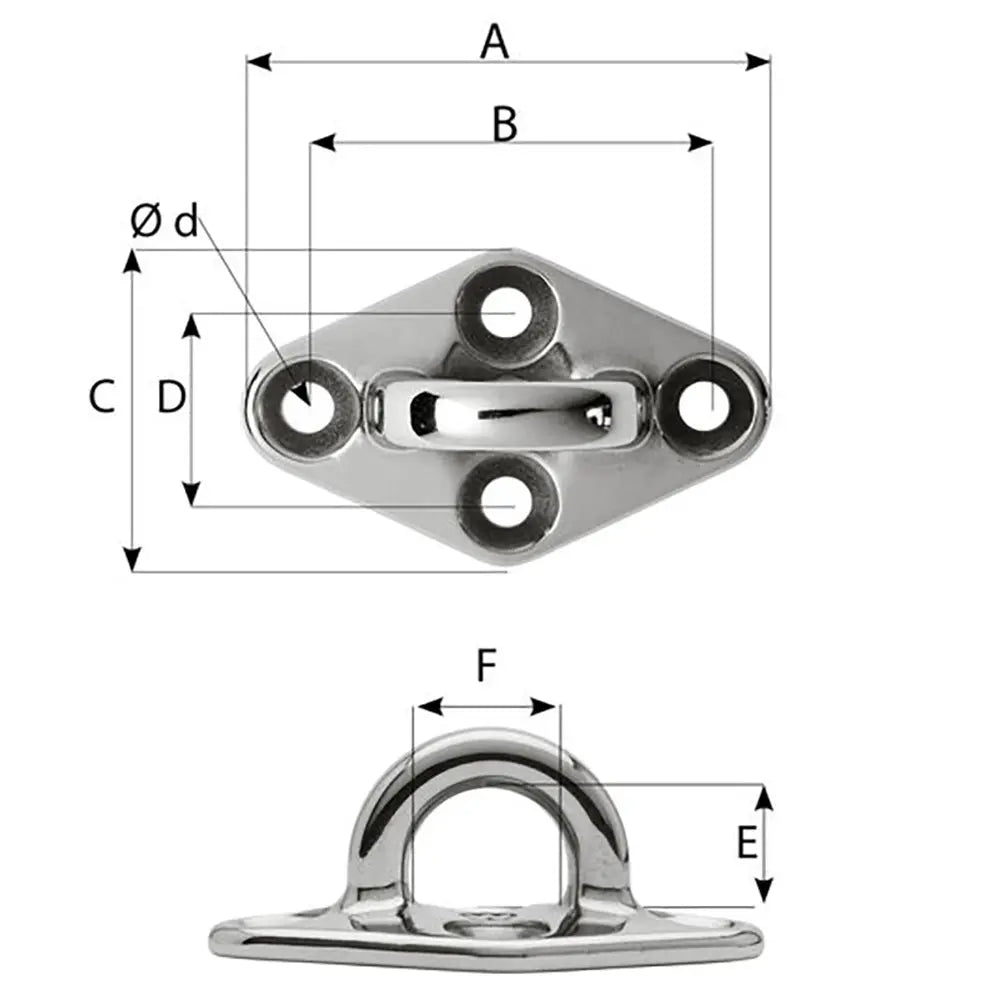

Dimensions:

• A: (inch) 3 55/64" / (mm) 98
• B: (inch) 2 7/8" / (mm) 73
• C: (inch) 2 21/64" / (mm) 59
• D: (inch) 1 3/8" / (mm) 35
• E: (inch) 55/64" / (mm) 22
• F: (inch) 1 1/16" / (mm) 27

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Diamond Pad Eye, model 6646W, is designed for robust marine and industrial applications requiring reliable load-bearing capacity. Crafted from duplex stainless steel grade, this pad eye offers an optimal balance between mechanical strength and corrosion resistance, ensuring durability in harsh environments. Its compact, optimized dimensions make it suitable for use in mast foot blocks, reefing blocks, and various fastening tasks on boats and industrial setups. The 98mm (3-55/64 inches) length and M8 screw compatibility provide versatile installation options, allowing secure attachment for high-load applications. This pad eye has a working load limit of 4,200 kg (9,259.4 lbs) at 90 and 45 degrees, with a breaking load of 11,200 kg (24,691.7 lbs), ensuring safety margins for critical operations. Its lightweight design, at just 0.55 lbs (250 grams), facilitates easy handling and installation without compromising strength.

Designed to meet demanding standards, the Wichard Marine pad eye is ideal for securing rigging, attaching mooring lines, or anchoring systems in both sailing and industrial environments. Its corrosion-resistant duplex stainless steel construction ensures longevity and minimal maintenance, even in saltwater conditions. The pad eye features precise dimensions for consistent performance, with a compact profile that fits seamlessly into various setups. Whether used in a yacht's mast foot or as part of an industrial rigging system, this pad eye provides dependable performance under heavy loads. The design incorporates safety factors aligned with industry standards, making it suitable for applications requiring a safety margin of five times the working load limit.

Sold individually, this pad eye is built for professionals who demand durability and reliability in their fixtures. Its robust construction paired with optimized features makes it an essential component for marine and industrial rigging projects, ensuring safety and efficiency in demanding environments.

Features:

• Mechanical resistance versus corrosion resistance ratio

• Optimized dimensions for versatile applications

• Compatible with M8 screw for secure fastening

• High working load capacity for demanding tasks

• Durable duplex stainless steel construction
