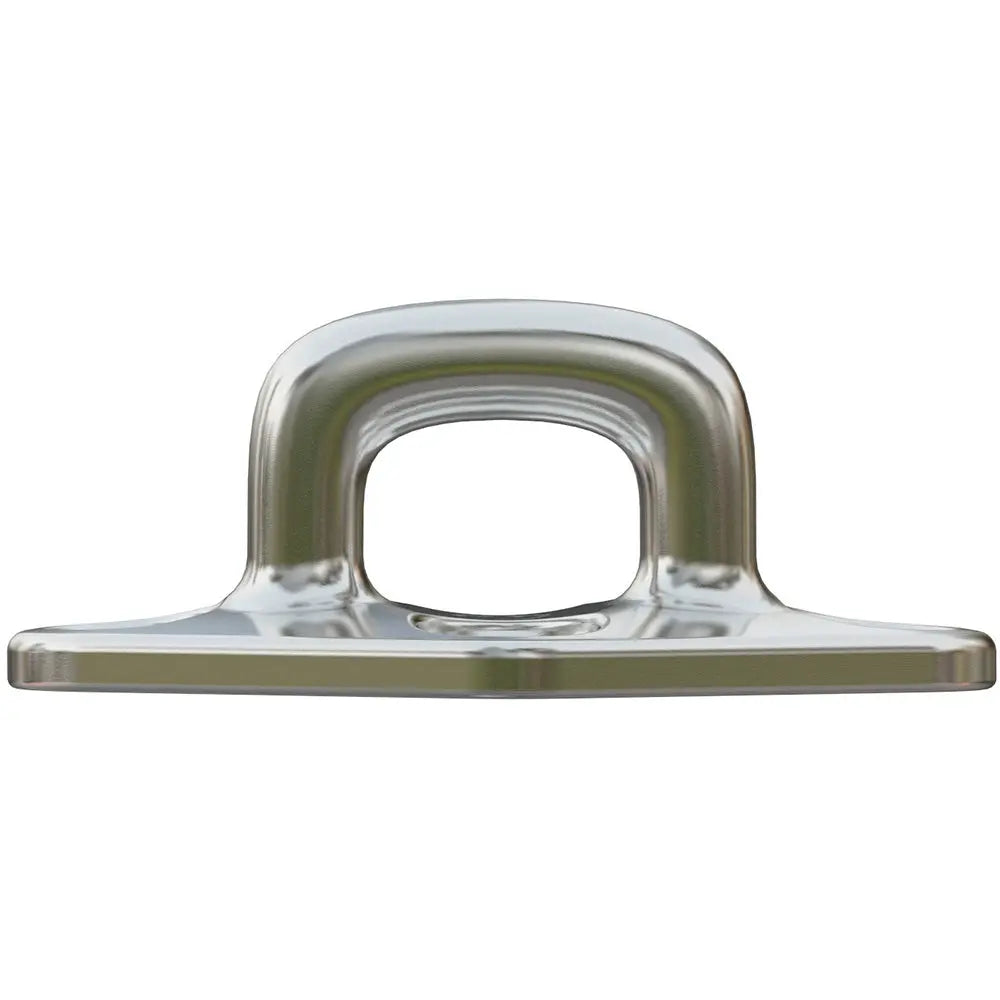

Wichard Marine Diamond Pad Eye Square - 60mm Length with M5 Screw for Marine and Industrial Applications

Diamond Pad Eye - Square - 60mm Length (2-23/64") - M5 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M5 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 2645.5 / (kg) 1200
• Breaking Load: (lb) 7054.7 / (kg) 3200
• Weight: (lb) 0.13 / (g) 59
• W.L 1 (90 degrees): (lb) 2645.5 / (kg) 1200
• W.L 2 (45 degrees): (lb) 2425 / (kg) 1100
• W.L 3 (0 degrees): (lb) 2425 / (kg) 1100
• B.L 1 (90 degrees): (lb) 7054.7 / (kg) 3200
• B.L 2 (45 degrees): (lb) 6613.8 / (kg) 3000
• B.L 3 (0 degrees): (lb) 6613.8 / (kg) 3000

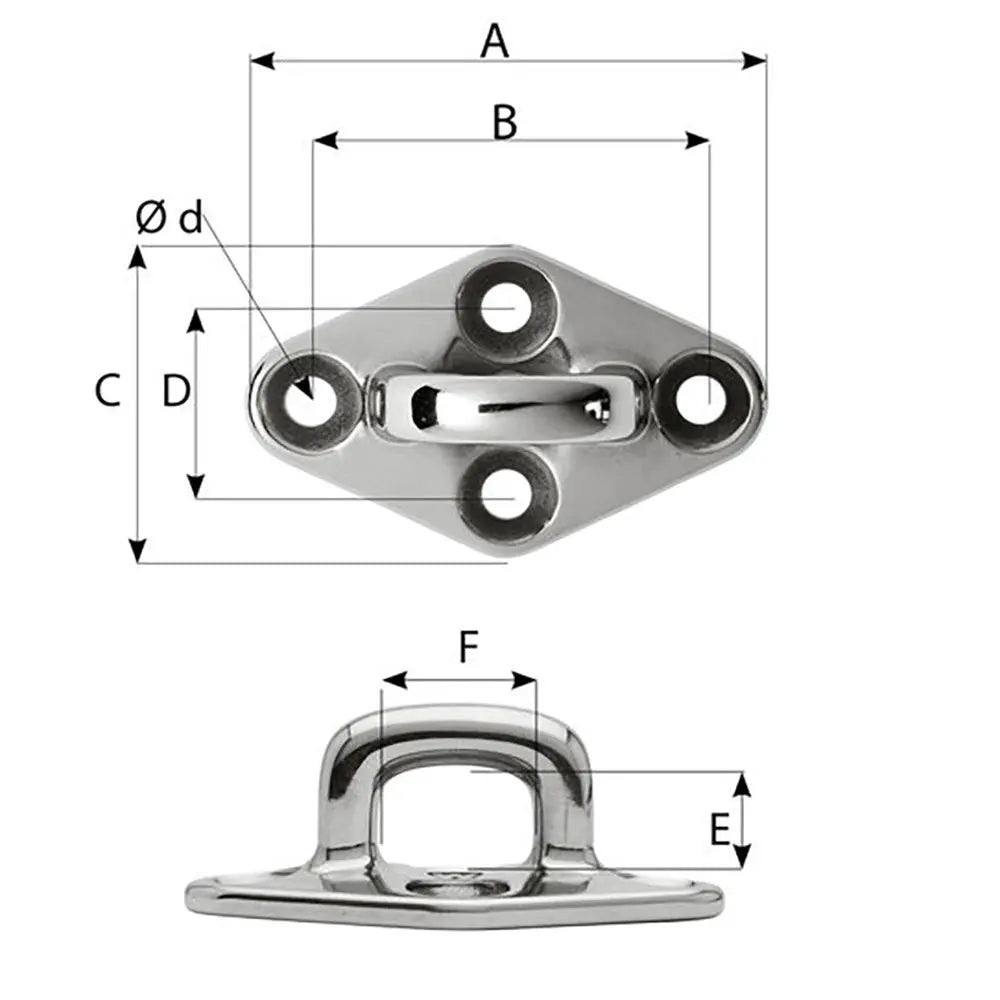

Dimensions:

• A: (inch) 2 23/64" / (mm) 60
• B: (inch) 1 13/16" / (mm) 46
• C: (inch) 1 1/2" / (mm) 38
• D: (inch) 15/16" / (mm) 24
• E: (inch) 15/32" / (mm) 12
• F: (inch) 3/4" / (mm) 19

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Diamond Pad Eye Square with a 60mm length offers a reliable solution for various fastening needs in both nautical and industrial environments. Crafted from high-grade duplex stainless steel, this pad eye provides an excellent balance between mechanical strength and corrosion resistance, making it suitable for demanding marine applications as well as heavy-duty industrial use. Its optimized dimensions ensure compatibility with M5 screws, facilitating straightforward installation on mast foot blocks, reefing systems, and other structural components. The robust design supports a working load of up to 1,200 pounds and a breaking load of 3,200 pounds, ensuring safety and durability under significant stress. The pad eye's compact weight of approximately 2.4 ounces further enhances its suitability for lightweight yet sturdy fastening solutions, especially where space constraints are critical. Its precise measurements and high-quality materials make it an ideal choice for professionals seeking dependable hardware that withstands harsh conditions and maintains performance over time.

Features:

• Mechanical resistance versus corrosion resistance ratio

• Optimized dimensions for ease of installation

• Designed for M5 screw compatibility
