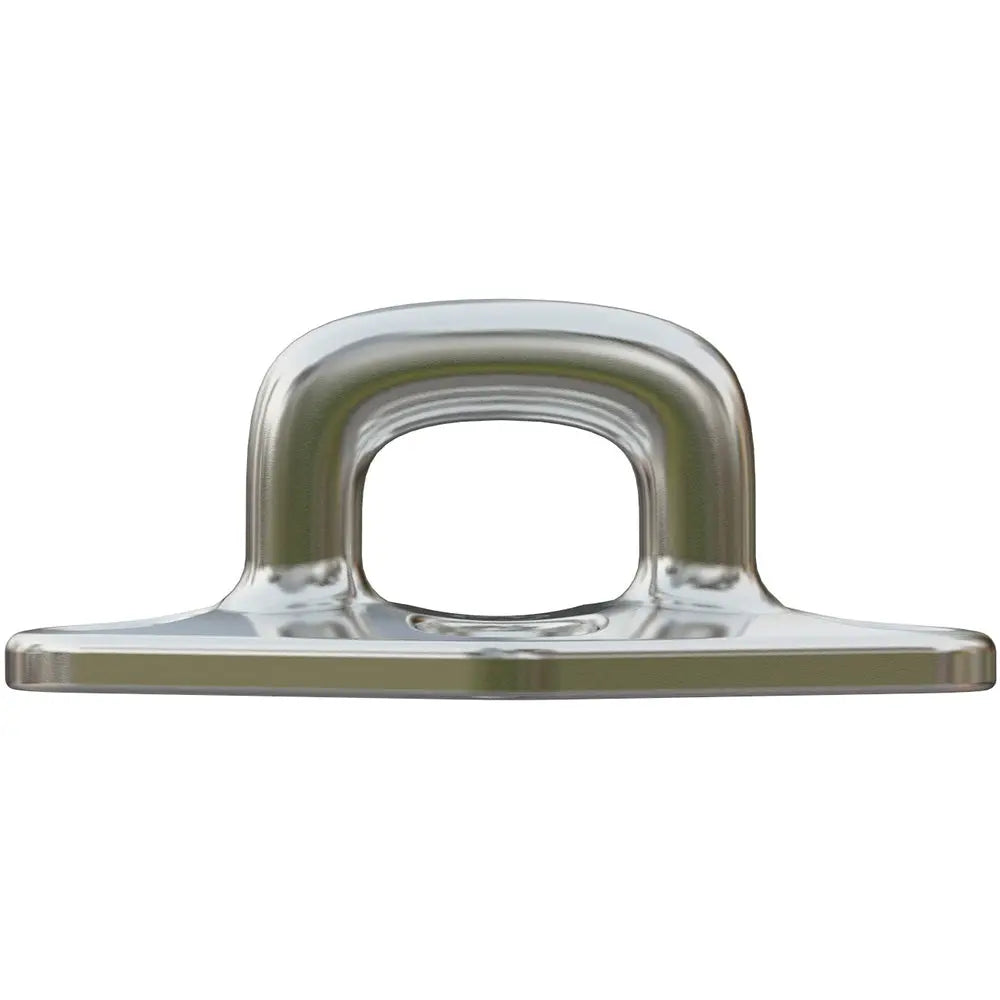

Wichard Marine Diamond Pad Eye - Square, 79mm Length, M6 Screw - Durable Duplex Stainless Steel

Diamond Pad Eye - Square - 79mm Length (3-7/64") - M6 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M6 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 5950 / (kg) 2700
• Breaking Load: (lb) 16093.7 / (kg) 7300
• Weight: (lb) 0.32 / (g) 145
• W.L 1 (90 degrees): (lb) 6393.4 / (kg) 2900
• W.L 2 (45 degrees): (lb) 5732 / (kg) 2600
• W.L 3 (0 degrees): (lb) 5291 / (kg) 2400
• B.L 1 (90 degrees): (lb) 16093.7 / (kg) 7300
• B.L 2 (45 degrees): (lb) 15211.9 / (kg) 6900
• B.L 3 (0 degrees): (lb) 13889.1 / (kg) 6300

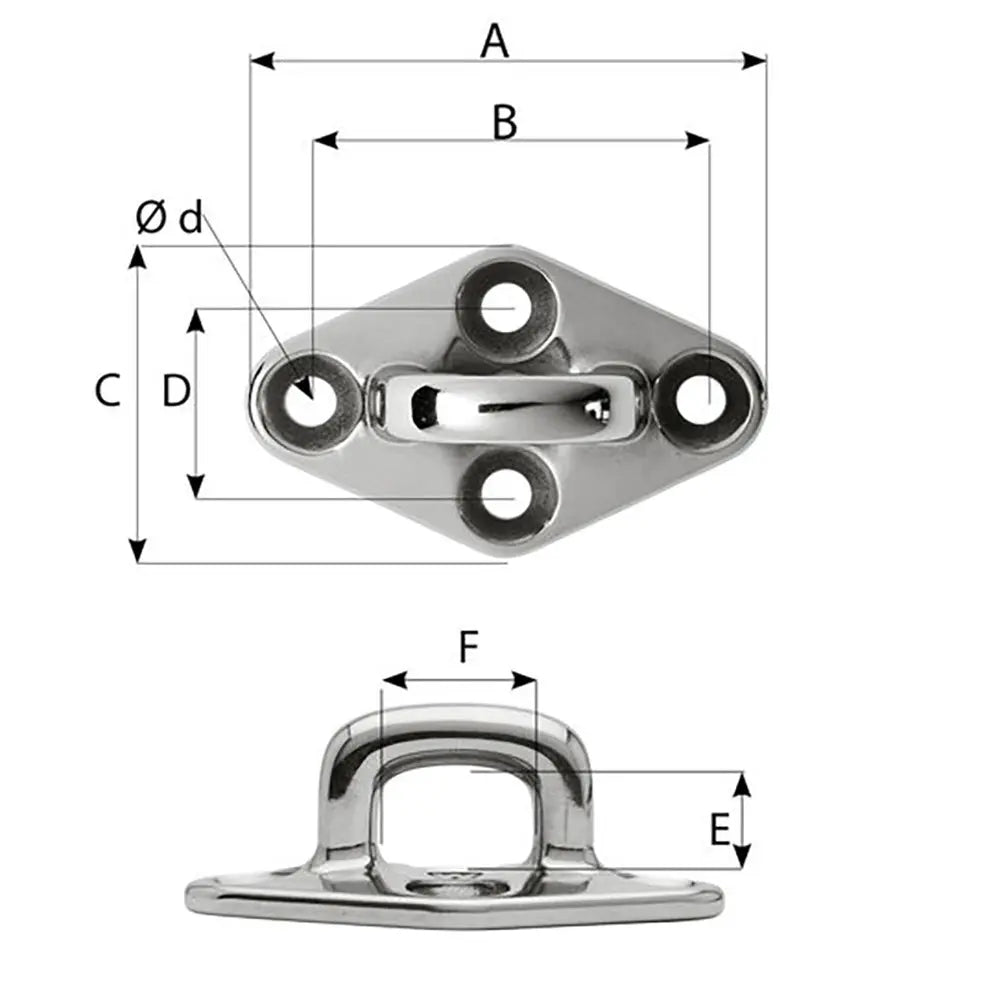

Dimensions:

• A: (inch) 3 7/64" / (mm) 79
• B: (inch) 2 23/64" / (mm) 60
• C: (inch) 1 31/32" / (mm) 50
• D: (inch) 1 17/64" / (mm) 32
• E: (inch) 39/64" / (mm) 15.5
• F: (inch) 55/64" / (mm) 22

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Diamond Pad Eye in a square design offers a reliable solution for various marine and industrial fastening needs. Crafted from high-grade duplex stainless steel, this pad eye provides an excellent balance of mechanical strength and corrosion resistance, ensuring durability in harsh environments. Its optimized dimensions facilitate secure attachment points for rigging, reefing, and mast foot applications, making it suitable for both marine and industrial uses. The pad eye features a working load limit of approximately 2,900 pounds at a 90-degree angle, with a breaking load exceeding 7,300 pounds, providing a substantial safety margin for critical applications.

Designed to work seamlessly with M6 screws, this pad eye has a compact profile with a length of 3-7/64 inches and a width of 2-23/64 inches. Its thoughtful dimensions make it easy to install and integrate into existing systems. The lightweight construction, weighing approximately 0.32 pounds, ensures minimal added stress to your setup while maintaining high strength and resilience. The pad eye’s versatile design makes it ideal for mast foot blocks, reefing blocks, and myriad fastening tasks across marine and industrial environments.

Each unit is sold individually, providing flexibility for project-specific requirements. Whether used in demanding maritime applications or industrial rigging, the Wichard Marine diamond pad eye delivers robust performance backed by durable materials and precise engineering. Its corrosion-resistant duplex stainless steel ensures longevity, even in saltwater conditions, making it a trusted component for professionals seeking reliable and secure fastening solutions.

Features:

• Mechanical resistance versus corrosion resistance ratio for durability in harsh environments

• Optimized dimensions for easy installation and secure fastening

• Designed for use with M6 screws for versatile applications
