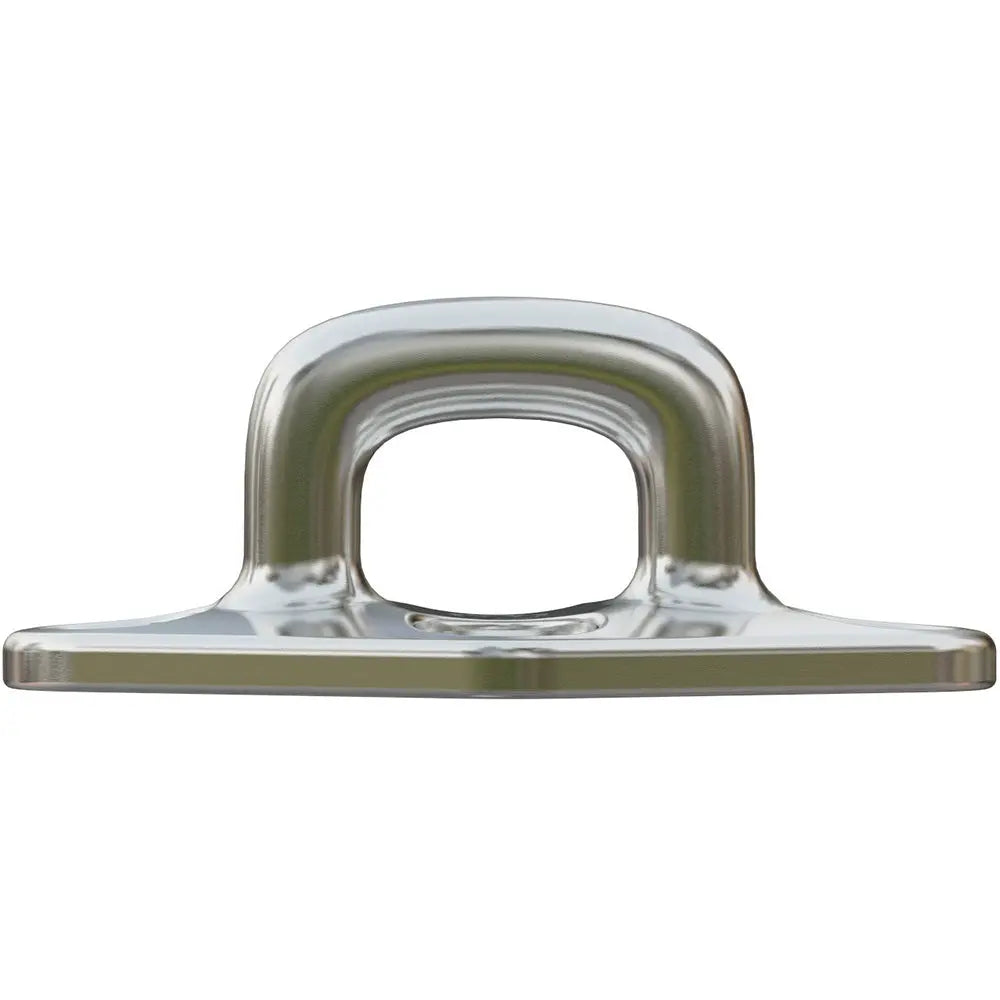

Wichard Marine Diamond Pad Eye Square - 98mm Length with M8 Screw

Diamond Pad Eye - Square - 98mm Length (3-55/64") - M8 Screw

Features:

• Mechanical resistance versus corrosion resistance ratio
• Optimized dimensions
• For M8 screw

Applications:

• Mast foot blocks
• Reefing blocks
• Various fastenings

Specifications:

• Materials: Duplex stainless steel grade
• Working Load: (lb) 9479.8 / (kg) 4300
• Breaking Load: (lb) 25573.6 / (kg) 11600
• Weight: (lb) 0.562 / (g) 255
• W.L 1 (90 degrees): (lb) 9479.8 / (kg) 4300
• W.L 2 (45 degrees): (lb) 9479.8 / (kg) 4300
• W.L 3 (0 degrees): (lb) 9038.9 / (kg) 4100
• B.L 1 (90 degrees): (lb) 25573.6 / (kg) 11600
• B.L 2 (45 degrees): (lb) 25573.6 / (kg) 11600
• B.L 3 (0 degrees): (lb) 24250.8 / (kg) 11000

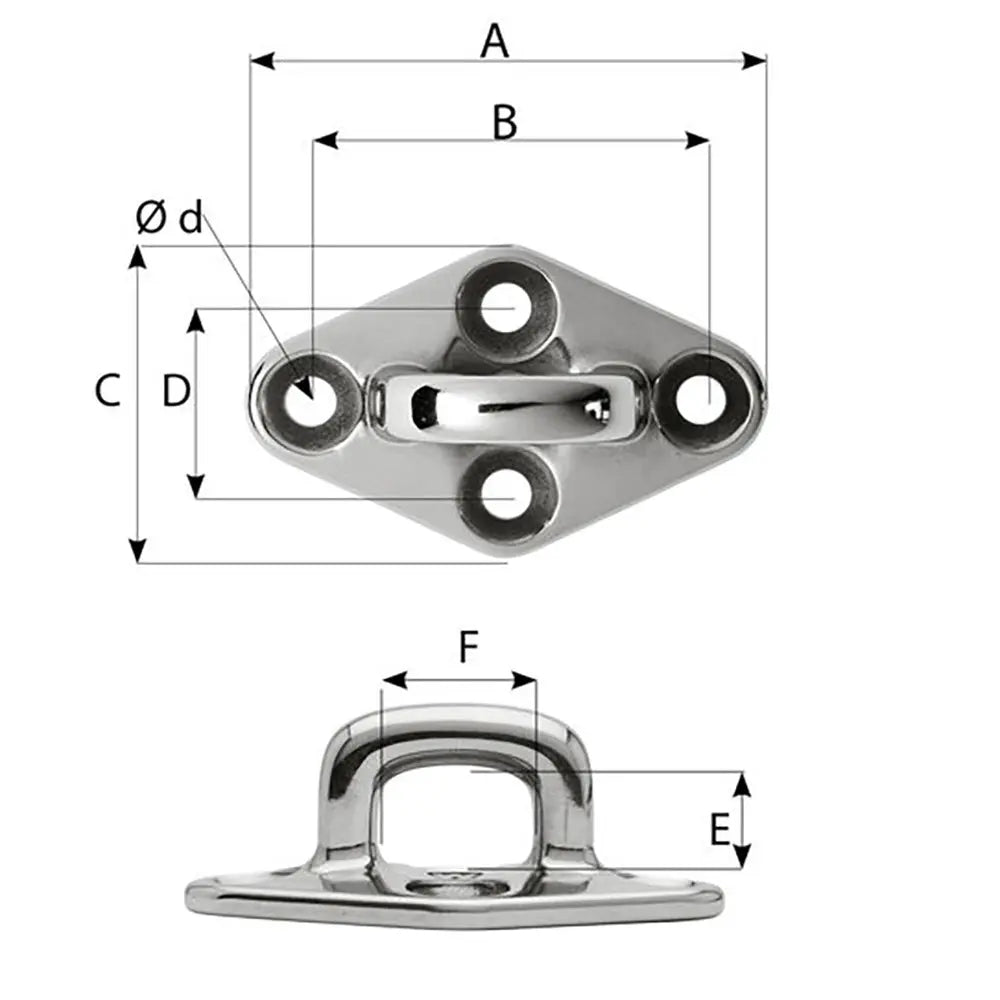

Dimensions:

• A: (inch) 3 55/64" / (mm) 98
• B: (inch) 2 7/8" / (mm) 73
• C: (inch) 2 21/64" / (mm) 59
• D: (inch) 1 3/8" / (mm) 35
• E: (inch) 49/64" / (mm) 19.5
• F: (inch) 1 1/16" / (mm) 27

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Diamond Pad Eye is designed for demanding marine and industrial applications, offering exceptional strength and corrosion resistance. Made from duplex stainless steel grade, this pad eye combines a high mechanical resistance with optimized dimensions to provide reliable performance in critical fastening points. Its square shape with a 98mm (3-55/64 inches) length and M8 screw compatibility makes it suitable for mast foot blocks, reefing blocks, and various other fastening needs on boats and industrial structures. The pad eye's robust construction ensures it withstands significant loads, with a working load limit of 4,300 pounds and a breaking load of 11,600 pounds, providing safety and durability in demanding environments.

Features:

• Mechanical resistance versus corrosion resistance ratio ensures longevity in harsh conditions

• Optimized dimensions for versatile installation and use

• Compatible with M8 screws for secure fastening
