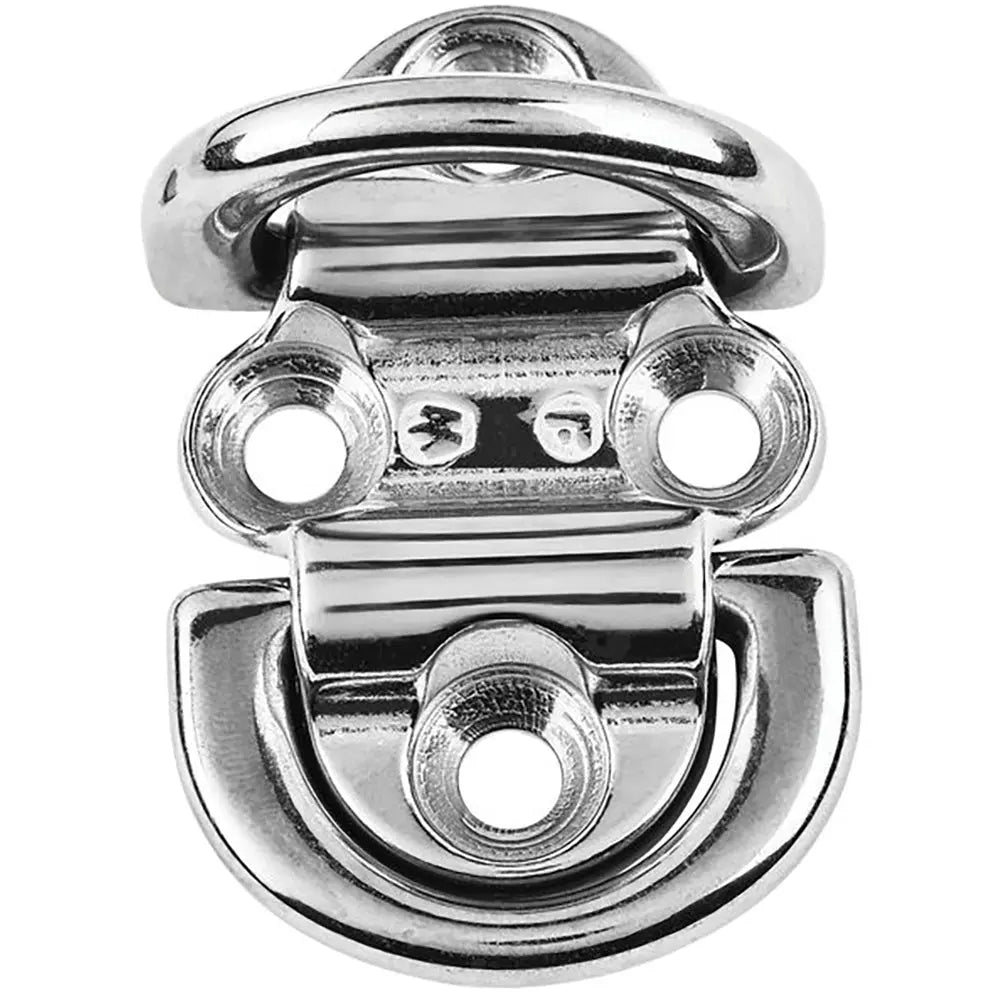

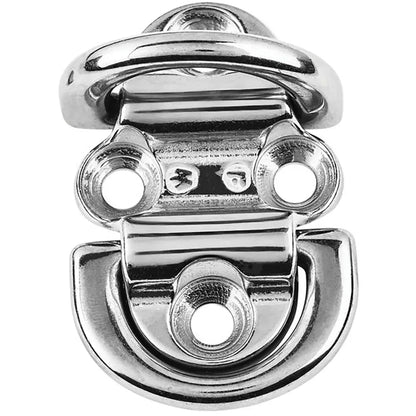

Wichard Marine Double Folding Pad Eye - 10mm Diameter, 25/64 inch for Boat Rigging and Attachments

Double Folding Pad Eye - 10mm Diameter - 25/64"

Features:

• Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
• Perfect solution attachment (stay, blocks, jib tack point)
• Possibility to attach several stays
• Modern and optimized design to suit the aesthetics of modern boats
• They can be folded down to minimize the risk of injuries
• The silicon pad eliminates noise and unpleasant vibrations

Applications:

• For any fastening/attachment application
• Allows to attach several shrouds

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 10050 / (kg) 4560
• Breaking load: (lb) 19840 / (kg) 9000
• Weight: (lb) 1.089 / (g) 494

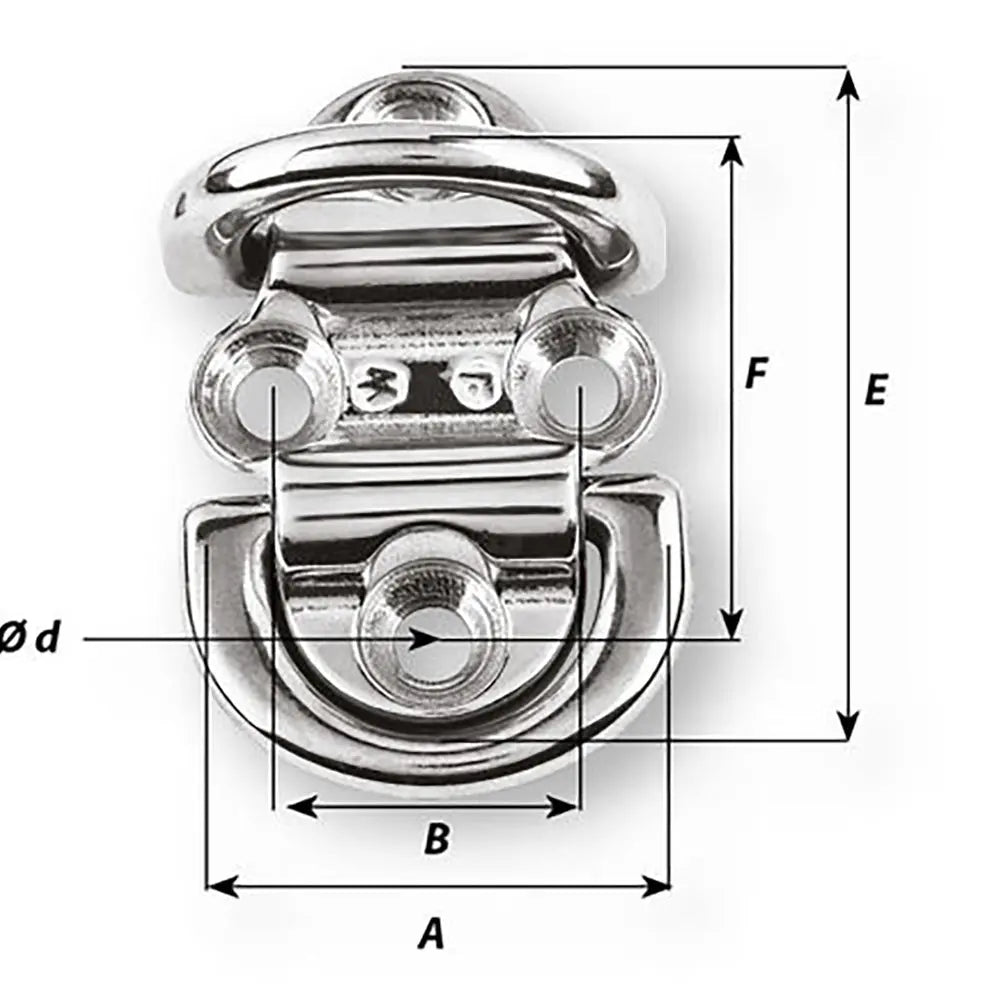

Dimensions:

• A: (inch) 2 61/64" / (mm) 75
• B: (inch) 1 49/64" / (mm) 45
• C: (inch) 29/32" / (mm) 23
• d diameter: (inch) 13/32" / (mm) 10.5
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 4 3/32" / (mm) 104
• F: (inch) 3 5/64" / (mm) 78

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Double Folding Pad Eye, part number 6566W, offers a robust and versatile solution for various marine attachment needs. Crafted from high-grade 316L stainless steel, this pad eye combines strength, durability, and modern design to meet the demanding conditions of nautical applications. Its fully drop-forged construction ensures outstanding working and breaking loads, regardless of the load angle, making it suitable for securing stays, blocks, jib tack points, or multiple shrouds. The innovative folding feature minimizes injury risks during handling and storage while the integrated silicon pad effectively reduces noise and vibrations for a smoother operation. This pad eye is designed to blend seamlessly with the aesthetics of modern boats, providing both functionality and visual appeal.

Features:

• Fully drop forged construction for high strength and durability

• Outstanding working load of up to 10,050 lbs and breaking load of 19,840 lbs

• Ideal for attachment points such as stays, blocks, jib tack points, and multiple shrouds

• Modern, optimized design to complement contemporary boat aesthetics

• Folds down to minimize injury risk during handling and storage

• Silicon pad eliminates noise and vibrations for quieter operation

• Made from corrosion-resistant 316L stainless steel for marine environments

• Designed for both nautical and industrial applications with safety considerations
