Wichard Marine Double Folding Pad Eye - 6mm Diameter, 15/64 Inch for Marine and Industrial Use

Double Folding Pad Eye - 6mm Diameter - 15/64"

Features:

• Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
• Perfect solution attachment (stay, blocks, jib tack point)
• Possibility to attach several stays
• Modern and optimized design to suit the aesthetics of modern boats
• They can be folded down to minimize the risk of injuries
• The silicon pad eliminates noise and unpleasant vibrations

Applications:

• For any fastening/attachment application
• Allows to attach several shrouds

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 3170 / (kg) 1440
• Breaking load; (lb) 5510 / (kg) 2500
• Weight: (lb) 0.278 / (g) 126

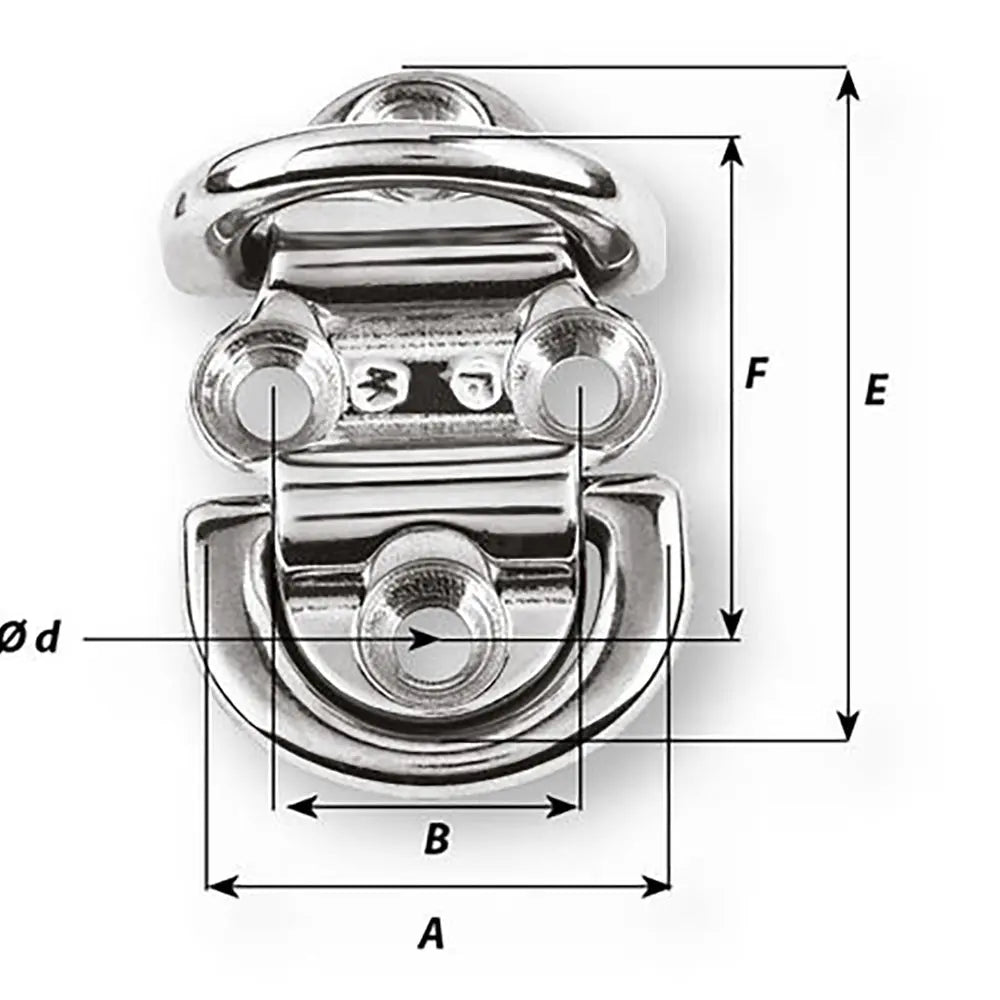

Dimensions:

• A: (inch) 1 49/64" / (mm) 45
• B: (inch) 1 1/16" / (mm) 27
• C: (inch) 35/64" / (mm) 14
• d diameter: (inch) 1/4" / (mm) 6.4
• D diameter: (inch) 15/64" / (mm) 6
• E: (inch) 2 61/64" / (mm) 75
• F: (inch) 2 21/64" / mm) 59

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Double Folding Pad Eye, part number 6564W, is engineered from high-quality 316L stainless steel to provide exceptional strength and durability in demanding environments. This 6mm (15/64 inch) diameter pad eye is ideal for various attachment and fastening applications on boats and industrial setups, offering a reliable solution for securing stays, blocks, jib tack points, and more. Its fully drop-forged construction ensures outstanding working and breaking loads regardless of the load angle, making it suitable for both lightweight and heavy-duty tasks. The modern, optimized design not only enhances the aesthetic appeal of contemporary vessels but also incorporates a fold-down feature to minimize injury risks during handling or when not in use. Additionally, the integrated silicon pad reduces noise and vibrations, contributing to a quieter, more comfortable operation. This pad eye can be used to attach multiple stays or shrouds, providing versatile support options for rigging and structural attachments. Its corrosion-resistant properties make it suitable for marine environments, ensuring longevity and dependable performance over time. The device’s dimensions and load ratings are carefully calibrated to meet safety standards, with a working load limit of 1,440 kg (3,170 lbs) and a breaking load of 2,500 kg (5,510 lbs). Weighing only about 5.6 ounces, this compact component is easy to handle and install, making it an excellent choice for professional and DIY applications alike. Whether used in nautical or industrial settings, the Wichard Double Folding Pad Eye offers a robust, secure, and aesthetically pleasing attachment point designed to withstand the rigors of demanding environments while maintaining safety and functionality.

Features:

• Fully drop-forged construction for high load capacity and durability

• Fold-down design to reduce injury risk during handling

• Silicon pad minimizes noise and vibrations

• Suitable for attaching multiple stays or shrouds

• Corrosion-resistant 316L stainless steel for marine environments

• Modern, optimized design enhances vessel aesthetics

• Versatile application for nautical and industrial use

• Compact and lightweight for easy installation and handling
