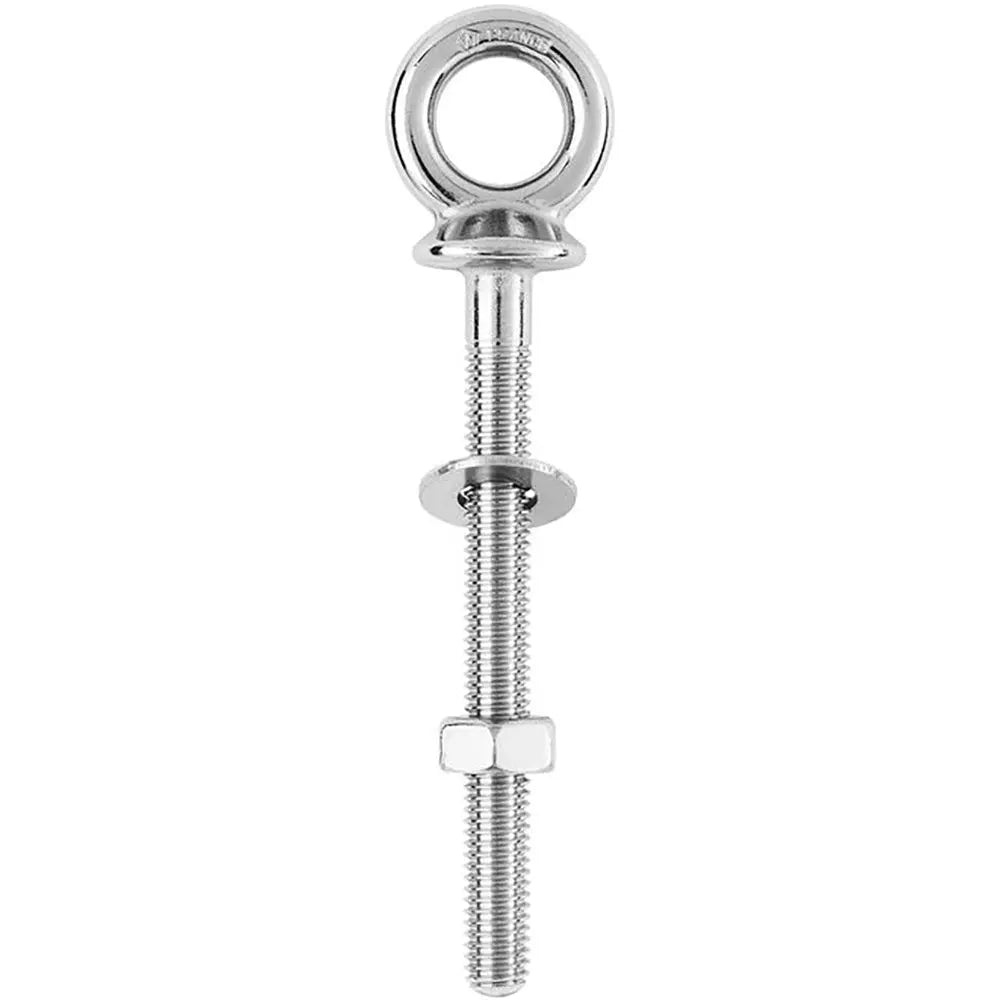

Wichard Marine Eye Bolt M12 x 175mm - 120mm Length for Heavy Duty Applications

Eye Bolt - M12 x 175mm - Length 120mm

Features:

• A complete range of single piece forged products for fastenings applications
• Outstanding working and breaking loads
• Available in different sizes
• Max tightening torque: 60 Nm

Applications:

• Various fastening applications
• Towing application
• Waterskiing lines attachment

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 7710 / (kg) 3500
• Weight: (lb) 0.359 / (g) 163

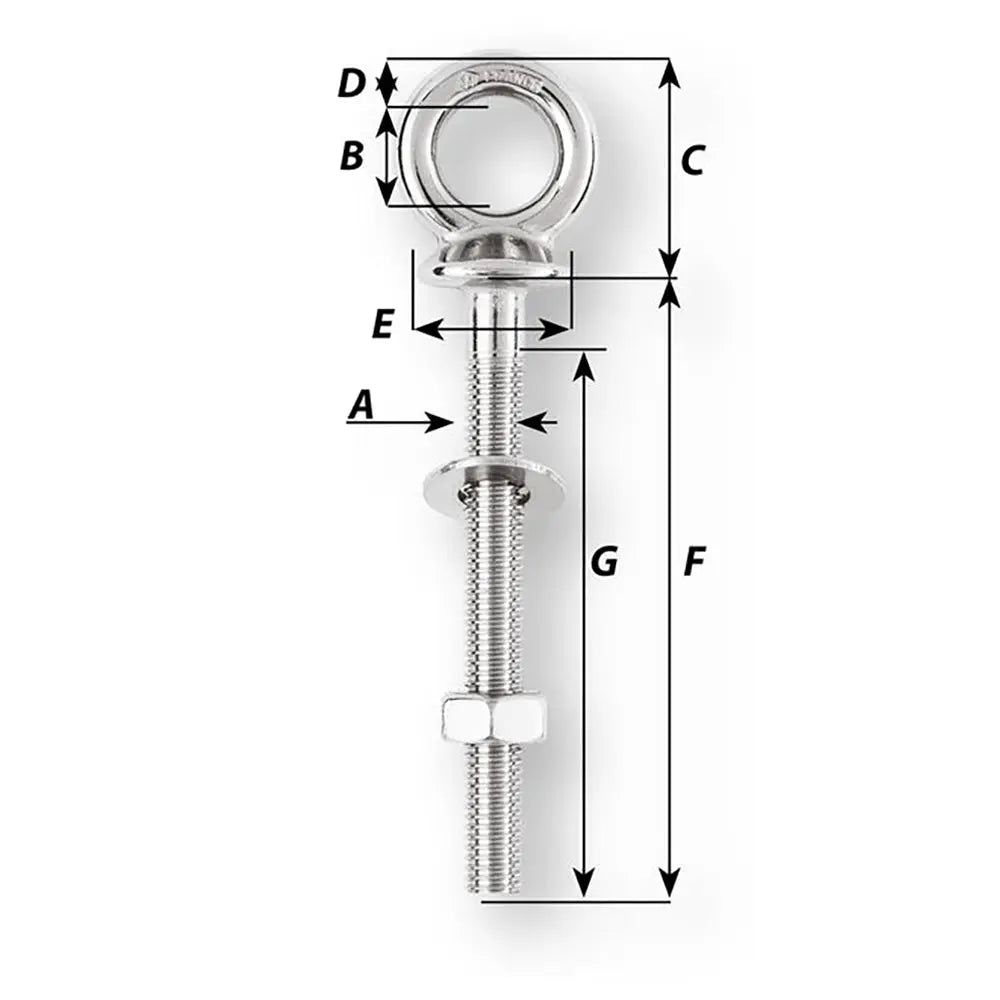

Dimensions:

• A: (mm) M12 x 175
• B: (inch) 45/64" / (mm) 18
• C: (inch) 1 39/64" / (mm) 41
• D: (inch) 5/16" / (mm) 8
• E: (inch) 1 7/64" / (mm) 28
• F: (inch) 4 23/32" / (mm) 120
• G: (inch) 4 9/64" / (mm) 105

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Eye Bolt, part number 6497W, is a high-strength fastening component crafted from durable 316L stainless steel grade. Designed for demanding applications, this eye bolt features a 12mm diameter and a total length of 175mm, with an effective length of 120mm for secure attachment points. Its robust construction ensures outstanding working and breaking loads, making it suitable for both industrial and nautical use. The eye bolt is engineered to withstand significant tension, with a maximum tightening torque of 60 Nm, ensuring safety and reliability in critical applications. Ideal for securing loads, towing, or attaching waterskiing lines, this versatile component is essential for heavy-duty tasks requiring dependable fastenings.

Features:

• Complete range of single-piece forged products for fastenings applications

• Outstanding working and breaking loads for high-stress environments

• Constructed from corrosion-resistant 316L stainless steel grade

• Maximum tightening torque of 60 Nm for secure fastening

• Suitable for various applications including towing and waterskiing lines attachment
