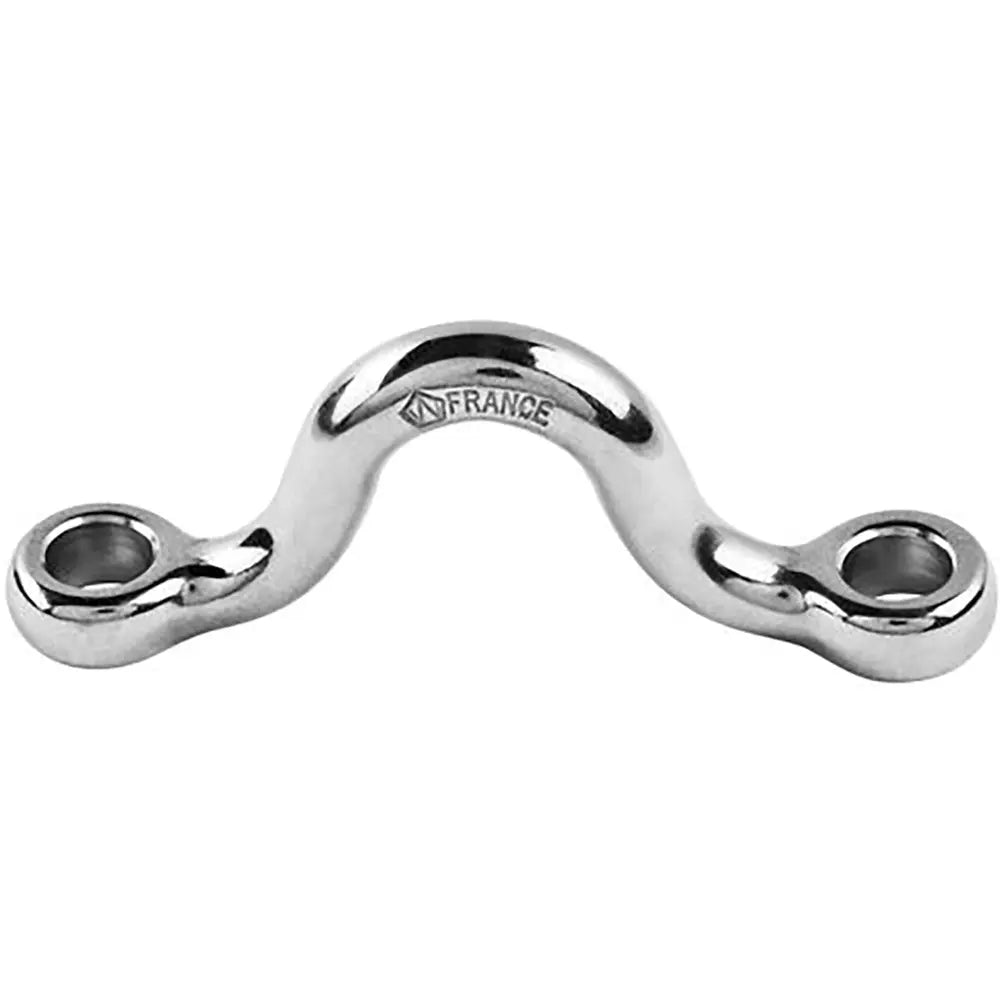

Wichard Marine Eye Strap - 6mm Diameter, 15/64"-45mm Spacing, Part Number 9203W

Eye Strap - 6mm Diameter - 15/64"- 45mm Spacing - 1-49/64"

Features:

• Complete range of drop-forged saddles with high-quality stainless steel (316L)
• Outstanding strength
• The round shape reduces the wear of the components connected to them (straps, ropes...)


Applications:

• Fastening applications
• Attachment of straps cordage

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 5290 / (kg) 2400
• Weight: (lb) 0.035 / (g) 16

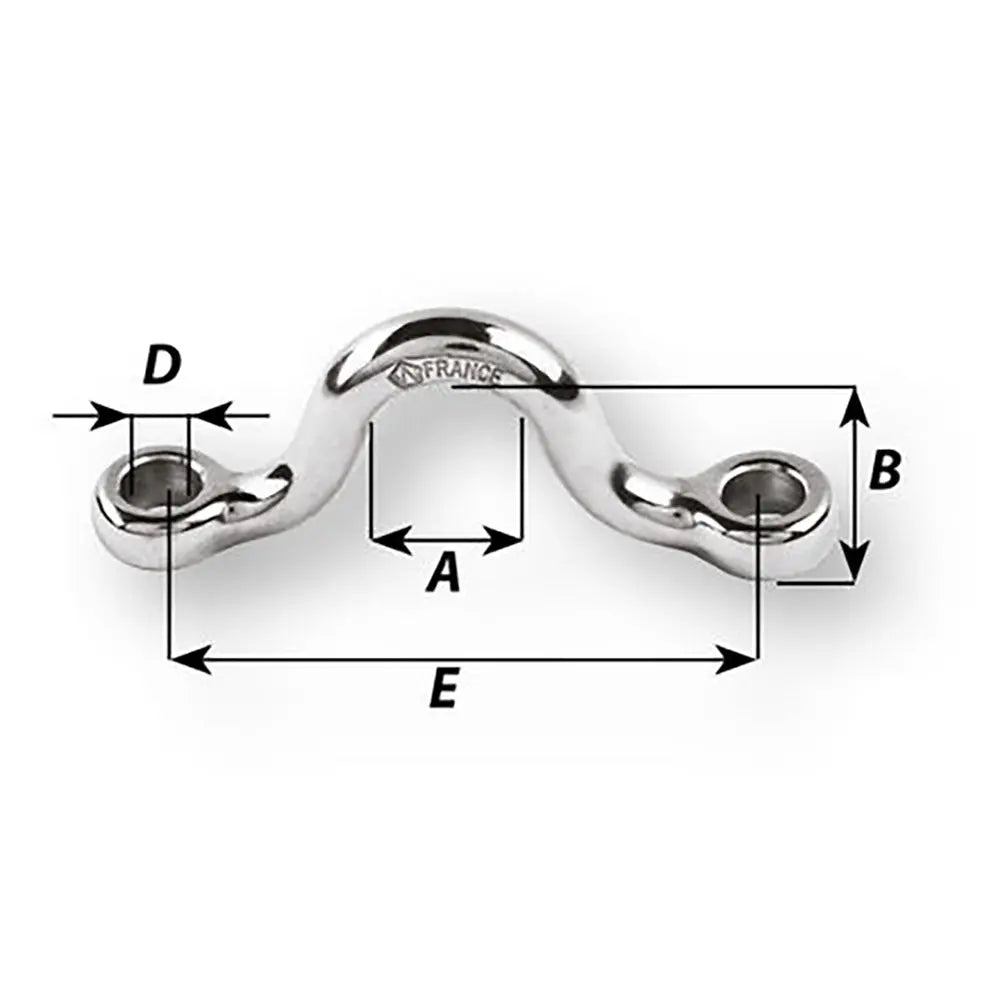

Dimensions:

• A: (inch) 15/32" / (mm) 12
• B: (inch) 5/8" / (mm) 16
• D diameter: (inch) 15/64" / (mm) 6
• E: (inch) 1 49/64" / (mm) 45

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Eye Strap, part number 9203W, is crafted from premium 316L stainless steel, offering exceptional strength and durability for demanding applications. With a 6mm diameter and 15/64" (6mm) D diameter, this eye strap provides a reliable anchor point for various fastening and attachment needs. Its design features a round shape that minimizes wear on connected components such as straps and ropes, prolonging the lifespan of your equipment and ensuring secure connections. Ideal for both nautical and industrial environments, this eye strap can withstand a breaking load of approximately 5,290 pounds (2,400 kg), making it suitable for heavy-duty applications. Its lightweight construction, weighing only about 0.035 pounds (16 grams), allows for easy handling and installation without compromising strength. The strap's length measures approximately 1 49/64 inches (45mm), with a width of 5/8 inch (16mm), and an overall dimension of 15/32 inch (12mm). Wichard Marine's eye strap is designed for versatility, enabling secure fastening of cords, straps, and other attachments in various settings. It is sold individually, providing flexibility for your project requirements. The working load limit (WLL) is calculated at five times the breaking load, ensuring safety in industrial applications, while the working load (WL) is specified for nautical use. This high-quality stainless steel component is an essential part of any rigging, marine, or industrial setup that demands reliable, corrosion-resistant hardware.

Features:

• Complete range of drop-forged saddles made from high-quality 316L stainless steel for corrosion resistance and durability

• Outstanding strength with a breaking load of 5,290 pounds (2,400 kg), suitable for heavy-duty applications

• Round shape design reduces wear on connected components such as straps and ropes, extending their service life
