Wichard Marine Fixed Round Pad Eye - 57mm Diameter for Sailing and Marine Rigging

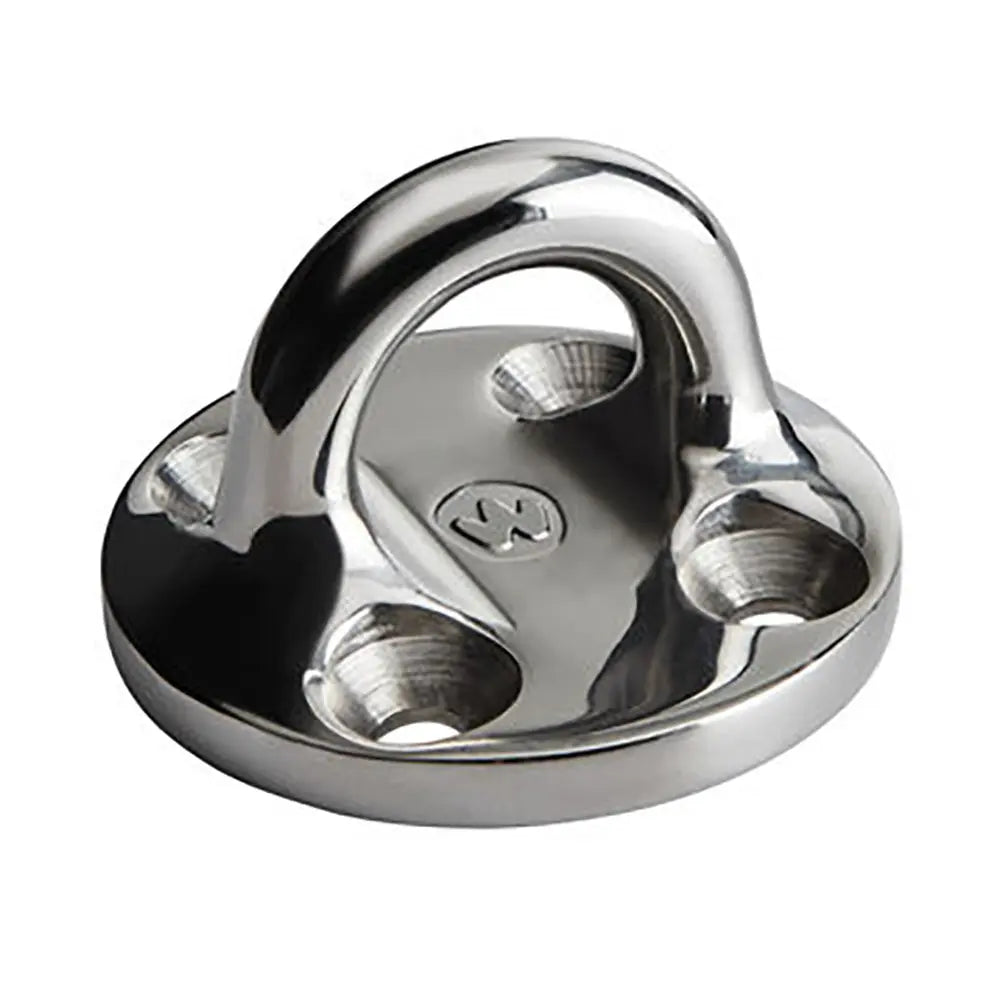

Round Pad Eye - 57mm Diameter (2-1/4") - Fixed

This fixed rounded pad-eye completes the range of fixed pad eyes and thus it can suit any user scenario. For example, it can be used for reefing blocks and fastening points on bowsprits and blocks. Made from duplex stainless steel, it offers excellent mechanical strength for its corrosion resistance. For M6 screws.

Applications:

• Reefing blocks
• Fastening points on the bowsprit
• Blocks fastening

Specifications:

• Materials: Duplex stainless steel grade
• Weight: (lb) 0.331 / (g) 150
• W.L 1 (90 degrees): (lb) 5070.6 / (kg) 2300
• W.L 2 (45 degrees): (lb) 4519.4 / kg 2050
• W.L 3 (0 degrees): (lb) 4299 / kg 1950
• B.L 1 (90 degrees): (lb) 10031 / kg 4550
• B.L 2 (45 degrees): (lb) 9038.9 / kg 4100
• B.L 3 (0 degrees): (lb) 8598 / kg 3900

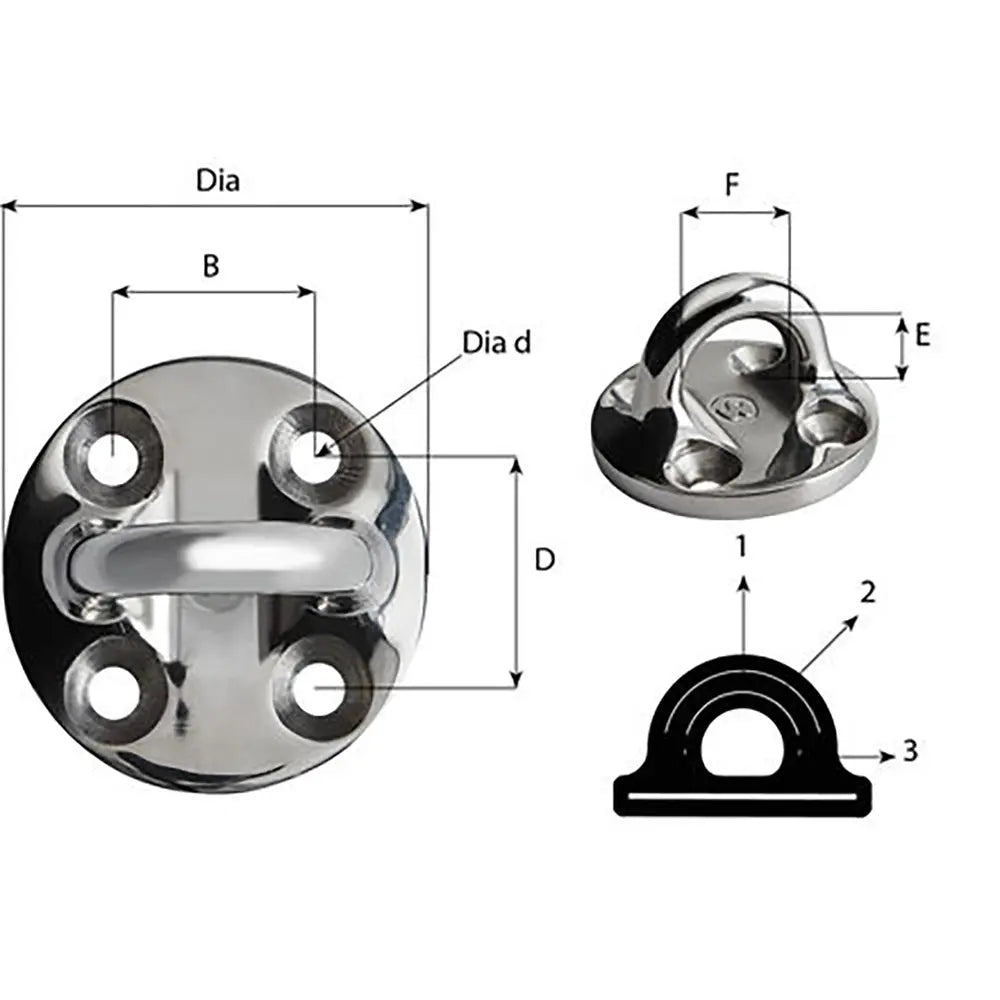

Dimensions:

• A: (inch) 2 1/4" / (mm) 57
• B: (inch) 1 1/16" / (mm) 27
• D: (inch) 1 3/16" / (mm) 30
• E: (inch) 3/4" / (mm) 19
• F: (inch) 55/64" / (mm) 22

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Part Number 6635W is a durable fixed round pad eye with a 57mm (2-1/4 inch) diameter, designed for various nautical and industrial applications. Crafted from duplex stainless steel, this pad eye offers exceptional mechanical strength combined with corrosion resistance, making it ideal for use in harsh marine environments. Its robust construction ensures reliable performance whether used for reefing blocks, securing points on bowsprits, or fastening blocks securely in place. This versatile component is suitable for M6 screws, enabling straightforward installation on a range of equipment and structures. Its corrosion-resistant properties make it a preferred choice for marine professionals seeking durability and safety in demanding conditions.

Features:

• Material: Duplex stainless steel grade offers excellent mechanical strength and corrosion resistance

• Design: Fixed round pad eye with a 57mm (2-1/4 inch) diameter for secure anchoring points

• Application: Suitable for reefing blocks, bowsprit fastening points, and block securing

• Load Capacity: Supports working loads up to 5,070.6 pounds at 90 degrees, ensuring safety in demanding conditions

• Compatibility: Designed for M6 screws for easy installation and integration into existing setups
