Wichard Marine Folding Pad Eye - 6mm Diameter, 2 Fixed Holes for Marine Rigging

Folding Pad Eye - 6mm Diameter (15/64") - 2 Fixed Holes

Features:

• They are 100% safe and highly resistant to corrosion
• Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
• Modern and optimized design to suit the aesthetics of modern boats
• They can be folded down to minimize the risk of injuries
• The silicon pad eliminates moist and unpleasant vibrations
• Modern design

Applications:

• Fastening applications (stay, blocks, jib tack point, lifeline, etc...)

Specifications:

• Materials: 316L stainless steel grade
• Working Load: (lb) 1650 / (kg) 750
• Breaking Load: (lb) 3520 / (kg) 1600
• Weight: (lb) 0.123 / (g) 56

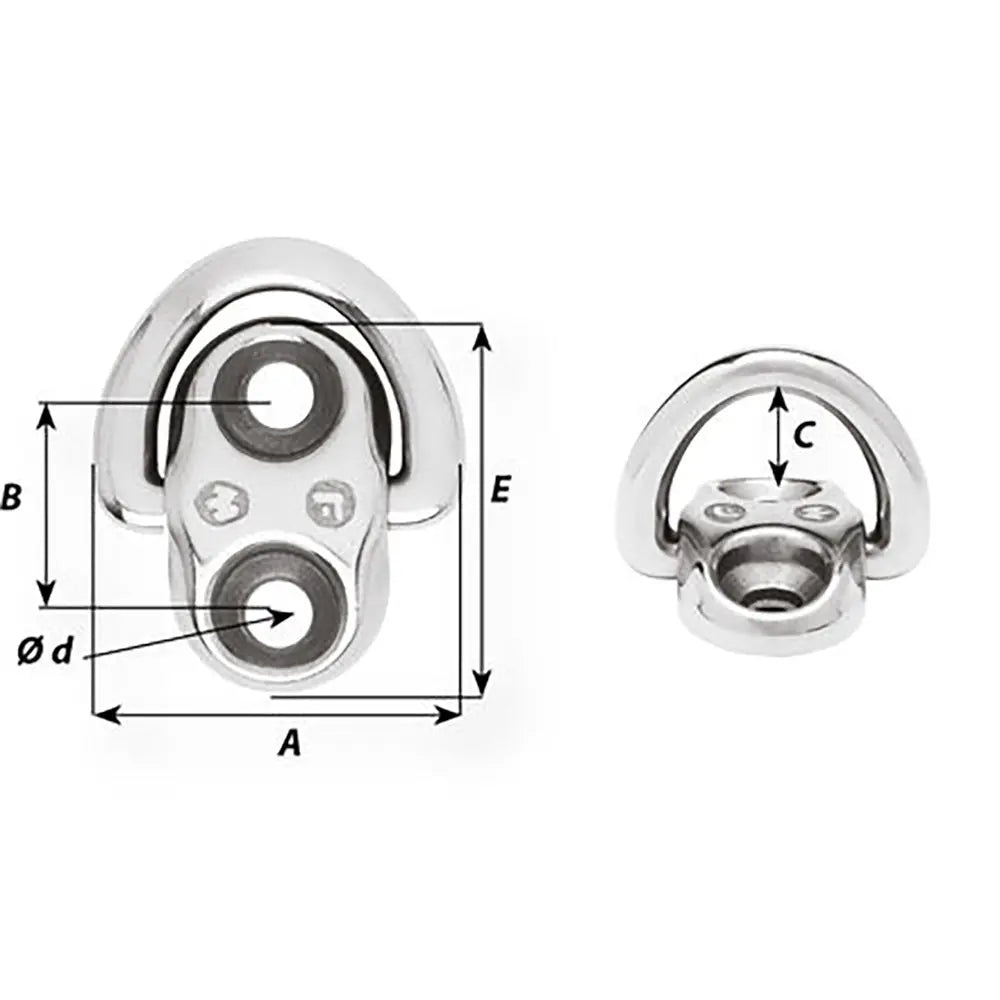

Dimensions:

• A: (inch) 1 37/64" / (mm) 40
• B: (inch) 59/64" / (mm) 23.4
• C: (inch) 19/32" / (mm) 15
• d diameter: (inch) 9/32" / (mm) 7
• D diameter: (inch) 15/64" / (mm) 6
• E: (inch) 1 37/64" / (mm) 40

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine Folding Pad Eye, part number 6684W, is a durable and corrosion-resistant component designed for demanding marine applications. Crafted from high-grade 316L stainless steel, this pad eye offers exceptional strength with a working load capacity of up to 1650 pounds and a breaking load of 3520 pounds. Its fully drop-forged construction ensures outstanding load-bearing performance from any angle, making it reliable for securing stays, blocks, jib tack points, lifelines, and other rigging needs on boats. The modern, optimized design not only enhances the aesthetic appeal of contemporary vessels but also features a fold-down mechanism to minimize injury risks during handling or storage. A silicon pad integrated into the design helps eliminate moisture and vibrations, ensuring long-term durability and safety. Its compact size and robust construction make it suitable for various marine fastening applications, providing both safety and functionality in critical rigging points. Whether used in industrial or nautical settings, this pad eye adheres to safety standards, with a safety factor of five times the working load for industrial use. Easy to install and maintain, the Wichard Folding Pad Eye is a reliable choice for boat builders and marine professionals seeking quality and safety in their rigging hardware.

Features:

• Corrosion-resistant 316L stainless steel construction ensures durability in harsh marine environments

• Fully drop-forged for high strength and load resistance regardless of load angle

• Modern, aesthetic design complements contemporary boat styles

• Fold-down feature reduces injury risk during handling or storage

• Silicon pad eliminates moisture build-up and vibrations for long-term performance
