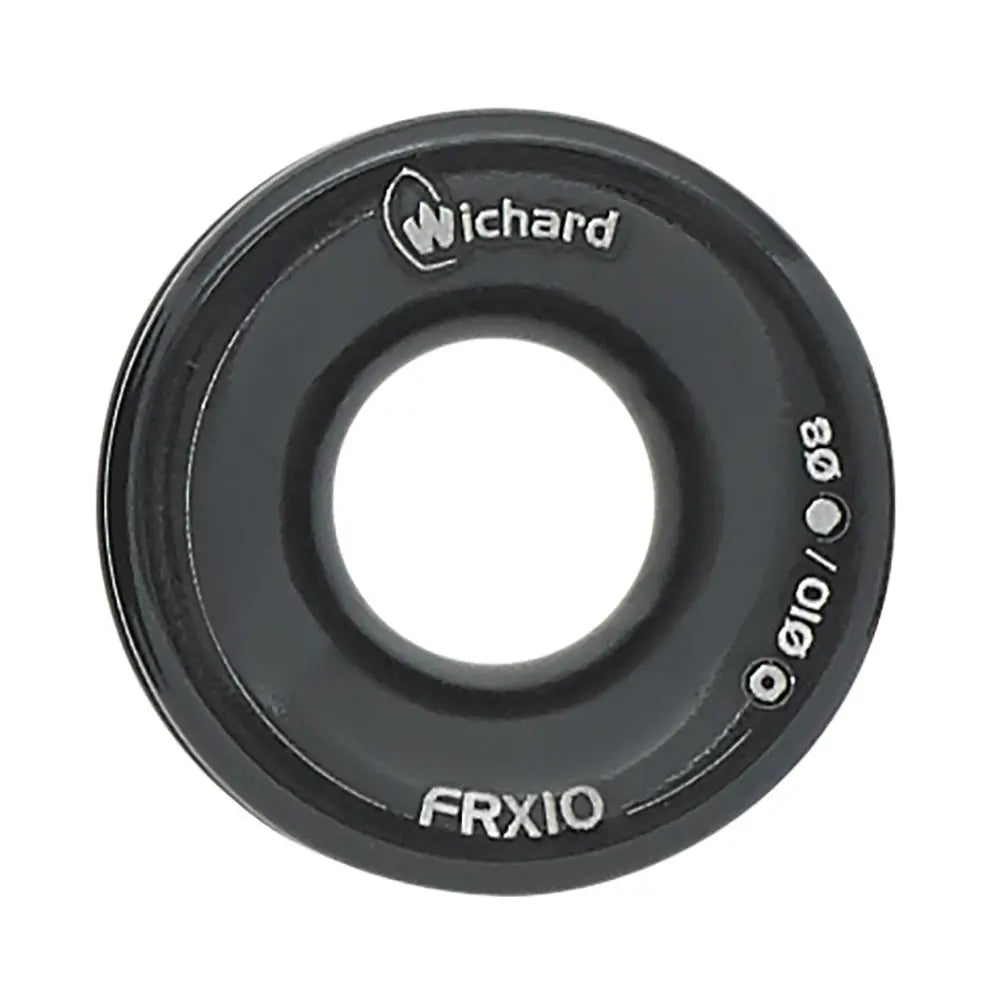

Wichard Marine FRX10 Friction Ring - 10mm (25/64 inch) for Sailboats and Marine Applications

FRX10 Friction Ring - 10mm (25/64")

Features:

• Efficient and light
• FRX Wichard thimbles are efficient, light, and reliable
• Very strong and can be used for heavy loads and semi-static lines
• FRX thimbles are designed to make your lines run smoothly with minimum wear
• They are hard anodized (50 microns) for a longer lifespan

Applications:

• Mast-foot block, barber-hauler, inhauler, loop, thimble, lazy jack, running backstay, tackle, and more

Specifications:

• Materials: Anodized aluminium
• Working load: (lb) 1760 / (kg) 800
• Weight: (lb) 0.011/ (g) 5

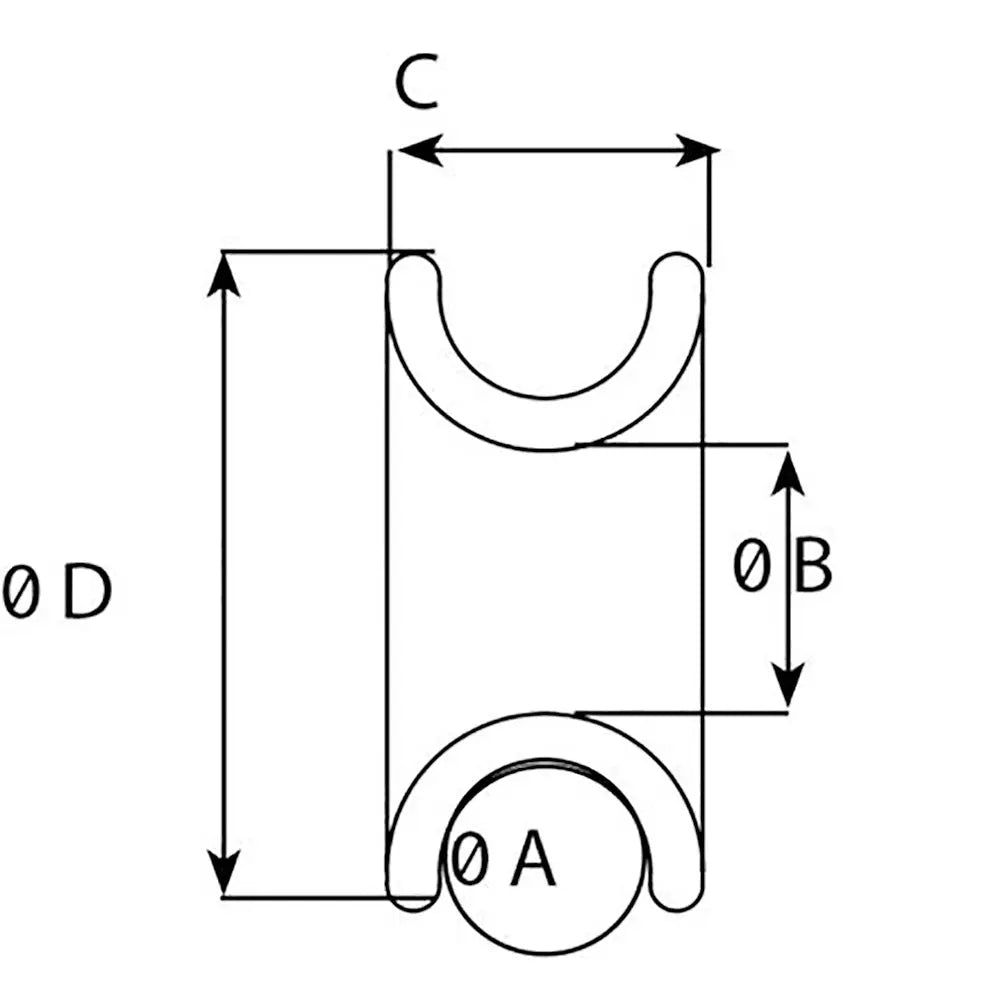

• A: (inch) 5/16" / (mm) 8
• B: (inch) 25/64" / (mm) 10
• C: (inch) 15/32" / (mm) 12
• D diameter: (inch) 63/64" / (mm) 25

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

The Wichard Marine FRX10 friction ring is a high-performance component designed for demanding nautical and industrial applications. Crafted from anodized aluminum with a 50-micron hard anodized finish, this 10mm (25/64 inch) friction ring offers exceptional durability and corrosion resistance. Its lightweight construction makes it ideal for use in various marine systems, including mast-foot blocks, barber-haulers, inhaulers, lazy jacks, running backstays, and tackle setups. The FRX10 is engineered to facilitate smooth line movement while minimizing wear, ensuring reliable operation over extended periods. Its impressive working load capacity of 1,760 pounds (800 kg) makes it suitable for heavy loads, providing both safety and performance in rigorous environments. The ring's design includes features that support semi-static lines and heavy-duty line handling with ease. Whether used in sailing rigs or industrial rigging, the FRX10 friction ring delivers dependable performance and long-lasting service. Its robust construction and high load capacity make it a versatile choice for sailors and riggers seeking a reliable solution for their line management needs. Sold individually, this friction ring is easy to install and suitable for various applications requiring a durable, lightweight, and efficient friction device.

Features:

• Efficient and light construction for easy handling and installation

• Made from anodized aluminium for corrosion resistance and durability

• Designed to make lines run smoothly with minimal wear

• High working load capacity of 1,760 pounds (800 kg) for heavy-duty applications

• Suitable for mast-foot blocks, lazy jacks, tackle, and more

• Hard anodized surface (50 microns) extends lifespan

• Supports semi-static lines and heavy loads reliably
