Wichard Marine HR Bow Shackle - 10mm Pin Diameter for Heavy Lifting and Industrial Use

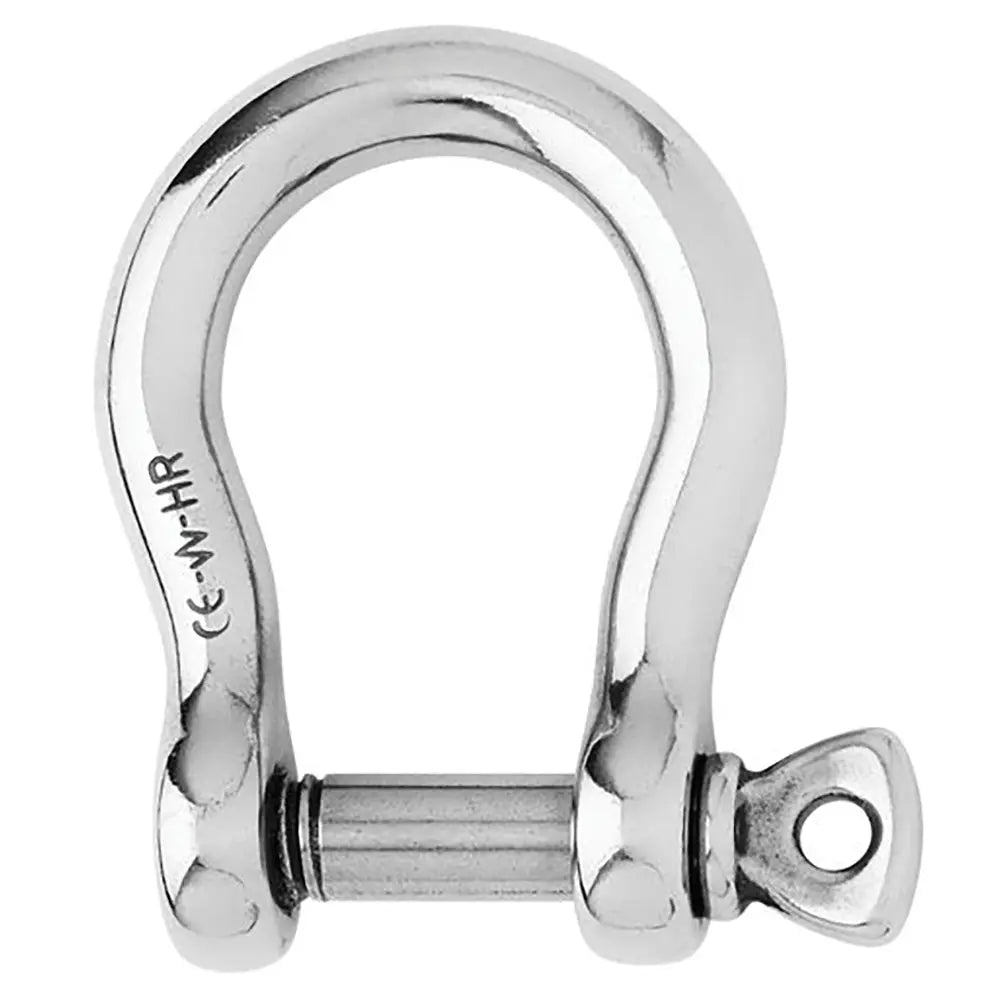

HR Bow Shackle - 10mm Pin Diameter

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 5820 / (kg) 2640
• WLL: (lb) 2640 / (kg) 1200
• Breaking load: (lb) 13220 / (kg) 6000
• Weight: (lb) 0.3 / (g) 136

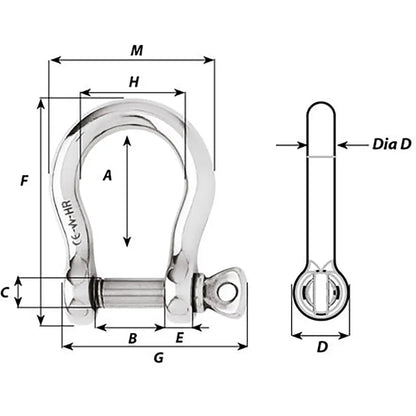

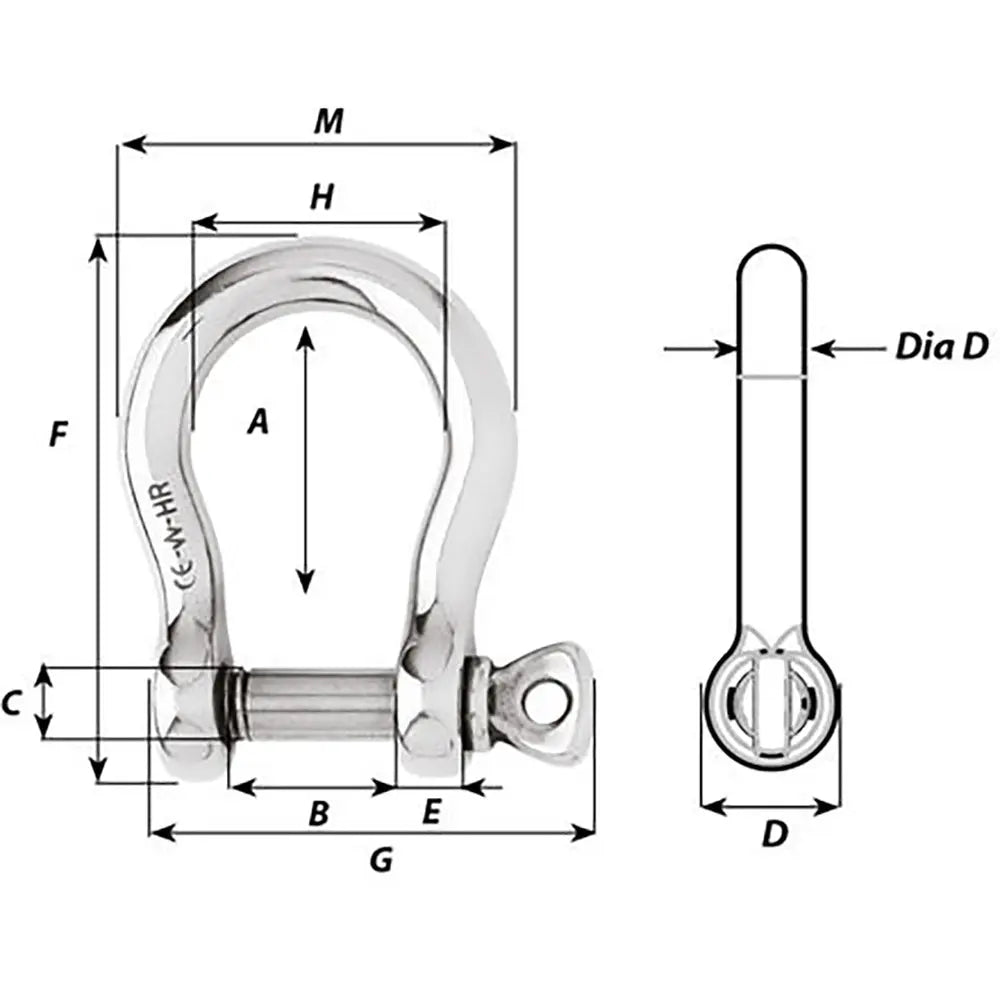

Dimensions:

• A: (inch) 1 27/32" / (mm) 47
• B: (inch) 55/64" / (mm) 22
• C: (inch) 25/64" / (mm) 10
• D: (inch) 25/32" / (mm) 20
• D diameter: (inch) 15/32" / (mm) 12
• E: (inch) 23/64" / (mm) 9
• M: (inch) 2 3/64" / (mm) 52

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Bow Shackle with a 10mm pin diameter is a high-performance forged steel shackle designed for demanding industrial applications. Made from HR stainless steel grade 17.4 PH, this shackle offers exceptional strength and resistance, making it suitable for lifting and heavy-duty tasks where safety and durability are paramount. Its outstanding working and breaking loads ensure reliable performance under significant loads, with a working load limit of 1,200 lbs and a breaking load of up to 6,000 lbs. The robust construction and high resistance properties mean it can withstand demanding environments better than standard 316L stainless steel shackles, providing up to 60% more resistance. This shackle features a CE marking, adhering to strict European safety standards, and is intended strictly for industrial lifting applications. Its design allows for the attachment of multiple lines or cables, making it versatile for various high-load scenarios requiring ample room for connection points. The Wichard HR Bow Shackle is ideal for applications involving high loads where space is a concern, but it should not be used for mooring purposes. With a weight of approximately 0.48 lbs and compact dimensions, this shackle is easy to handle and install, yet built to deliver maximum strength and safety. Its high resistance and reliable performance make it a trusted component for professional lifting, rigging, and industrial tasks, ensuring safety and efficiency in demanding work environments.

Features:

• Forged in HR stainless steel grade 17.4 PH for high strength and durability

• Outstanding working load limit of 1,200 lbs for industrial lifting applications

• Breaking load capacity of up to 6,000 lbs for maximum safety

• High resistance compared to 316L stainless steel, up to 60% stronger

• CE marked to meet European safety standards

• Designed for high-load applications requiring ample connection space

• Suitable for attaching multiple cables or lines
