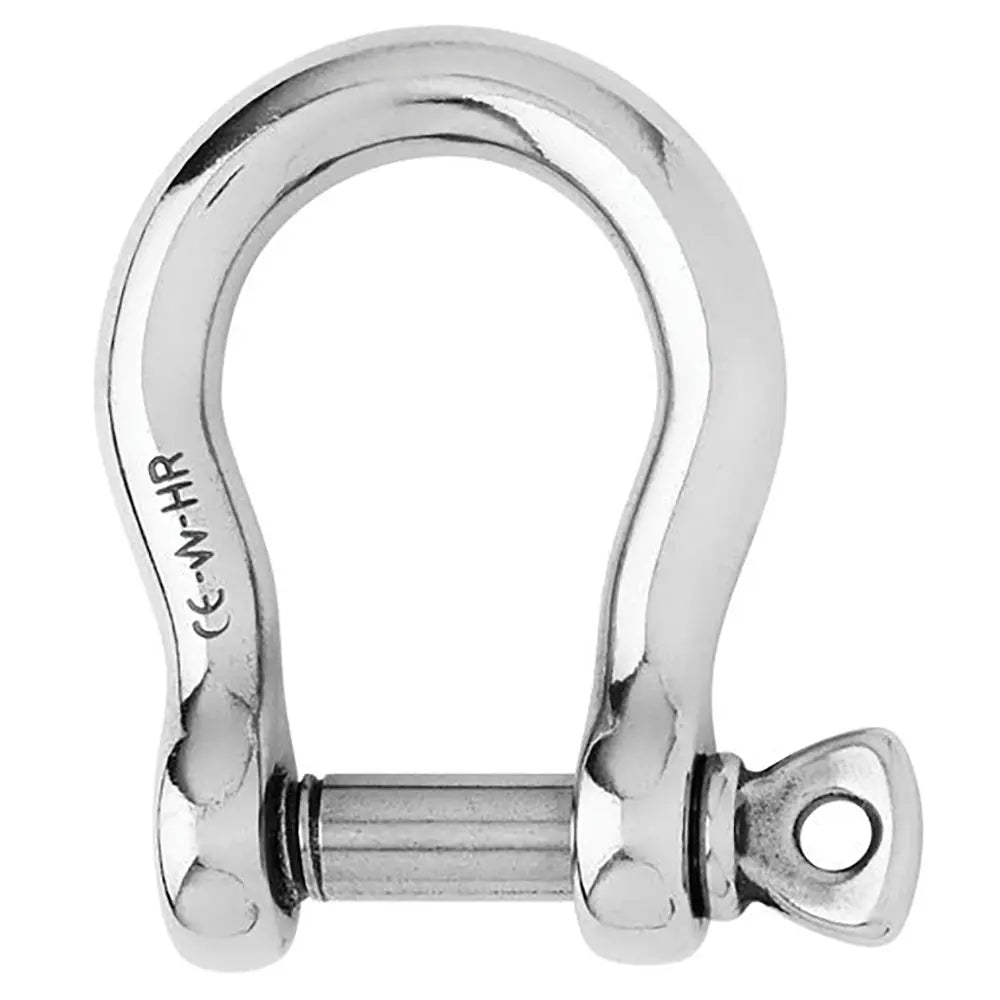

Wichard Marine HR Bow Shackle 14mm Diameter - Heavy Duty Industrial Lifting Hardware

HR Bow Shackle - 14mm Diameter - 35/64"

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e)
• CE marking and batch number

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 11280 / (kg) 5120
• WLL: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 26450 / (kg) 12000
• Weight: (lb) 0.802 / (g) 364

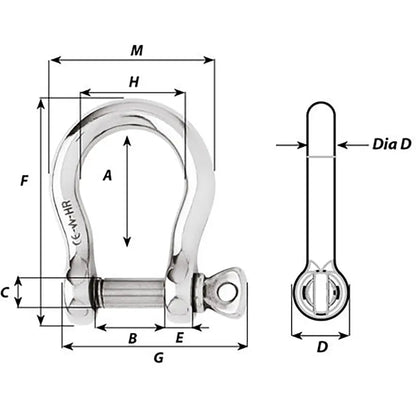

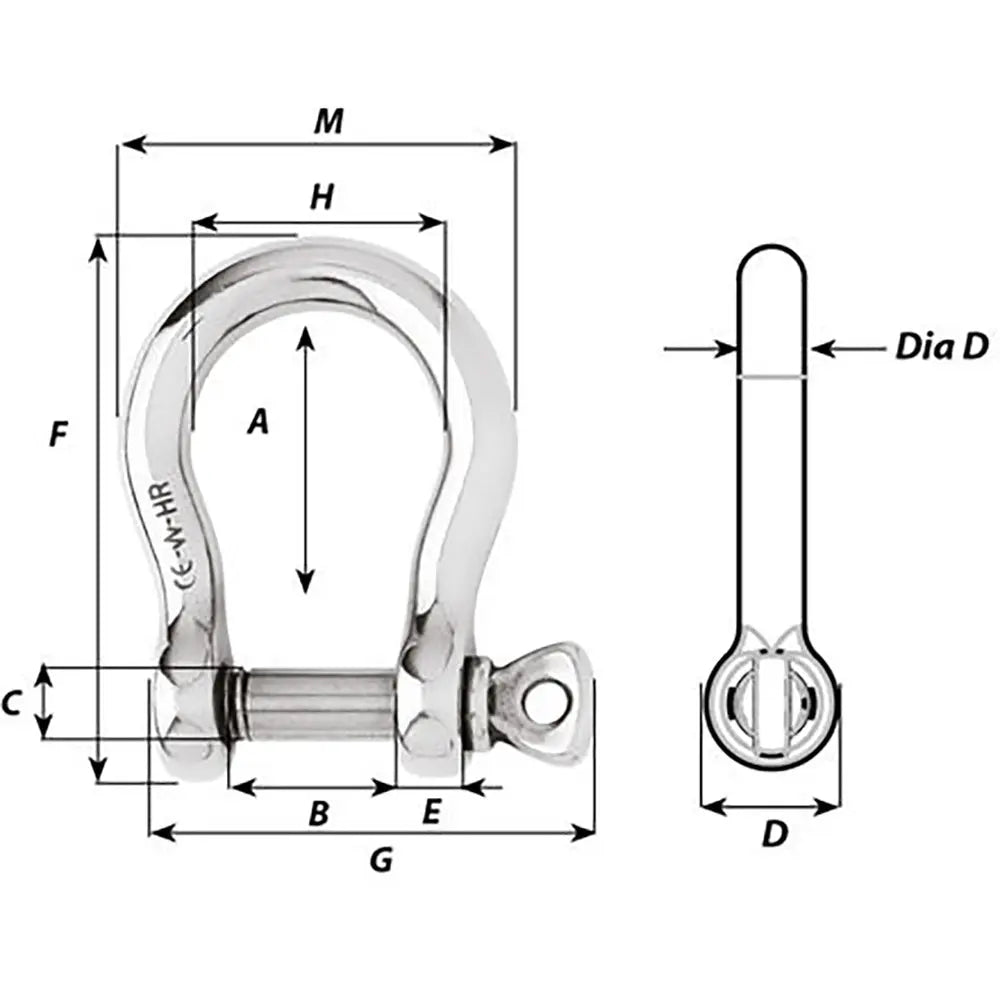

Dimensions:

• A: (inch) 2 31/64" / (mm) 63
• B: (inch) 1 7/64" / (mm) 28
• C: (inch) 35/64" / (mm) 14
• D: (inch) 1 7/64" / (mm) 28
• D diameter: (inch) 35/64" / (mm) 14
• E: (inch) 33/64" / (mm) 13
• M: (inch) 2 53/64" / (mm) 72

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

The Wichard Marine HR Bow Shackle, part number 11240W, is a high-resistance forged steel shackle designed for demanding industrial applications. Crafted from HR 17.4 PH stainless steel, this 14mm diameter shackle offers exceptional strength and durability for lifting and rigging tasks. Its robust construction provides outstanding working and breaking loads, making it suitable for high-load environments where safety and reliability are critical. The shackle features a CE marking and batch number, ensuring compliance with industry standards and quality assurance. Its design allows for the attachment of multiple lines or cables, making it ideal for applications that require ample room and high load capacity. The shackle’s high resistance makes it up to 60% more durable than standard 316L stainless steel shackles, providing extended service life in tough conditions. The Wichard Marine HR Bow Shackle is intended solely for industrial use, with a working load limit of 5,290 pounds and a breaking load of 26,450 pounds. Its compact yet sturdy design includes detailed dimensions that facilitate easy installation and maintenance. This shackle is an essential component for heavy-duty lifting, rigging, and industrial tasks where safety, strength, and durability are paramount. Sold individually, it ensures a reliable connection point for demanding applications across various industries.

Features:

• Forged from HR 17.4 PH stainless steel for superior strength and resistance

• Outstanding working load limit of 5,290 pounds and a breaking load of 26,450 pounds

• Designed for industrial applications such as lifting and rigging

• Up to 60% more resistant than standard 316L stainless steel shackles

• Suitable for applications requiring the attachment of multiple lines or cables

• CE marked with batch number for quality assurance

• Compact dimensions with detailed measurements for easy installation
